16-Port 10/100Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ PORT: 16× 10/100 Mbps PoE+ Ports, 2× Gigabit Non-

TL-SL1218P

16portový 10/100 Mb/s + 2portový gigabitový switch do racku so 16 portami PoE+

16 portov RJ45 PoE + 10/100Mb/s, 2 gigabitové porty RJ45 a 1 kombinovaný gigabitový SFP slot.

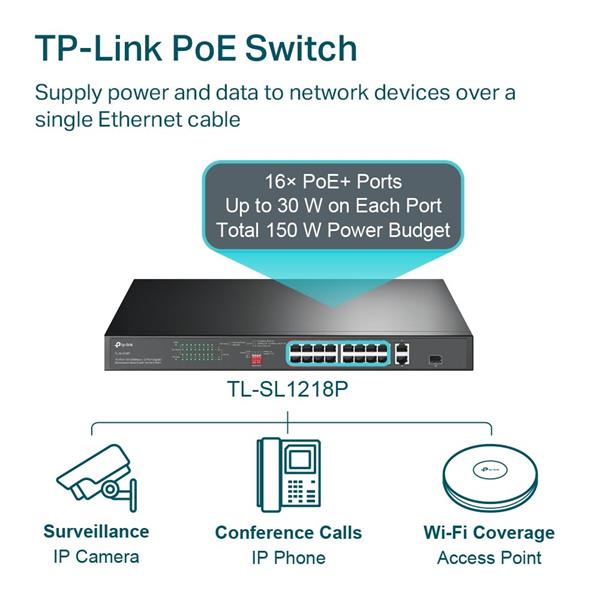

Vysoký výkon PoE napájania, až 30 W pre každý PoE port a 150 W pre všetky PoE porty*

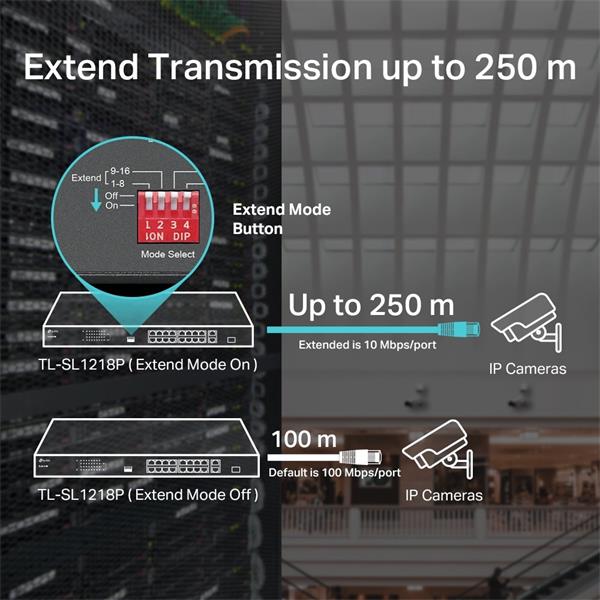

Prenos dát a napájanie až do vzdialenosti 250 m v režime predĺženia špeciálne navrhnutého pre dohľadový systém.**

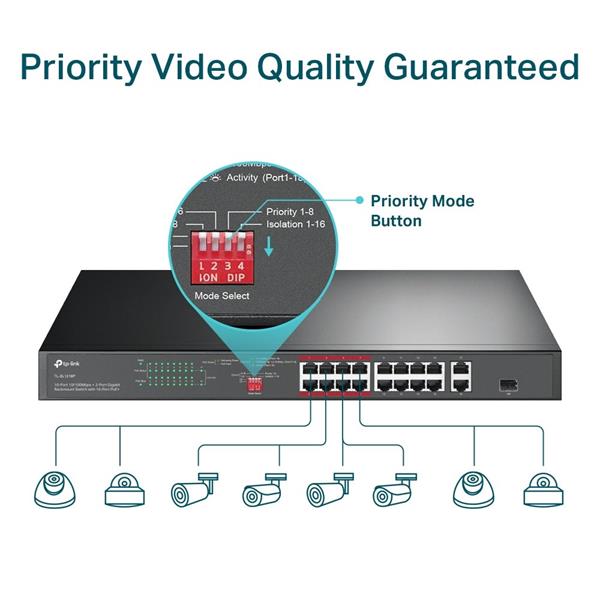

Prioritný režim pre porty 1-8, ktorý zaručuje kvalitu citlivých aplikácií, ako je napríklad video monitor.

Režim izolácie umožňuje oddelenie prevádzky klienta jedným kliknutím na vyššie zabezpečenie a výkon.

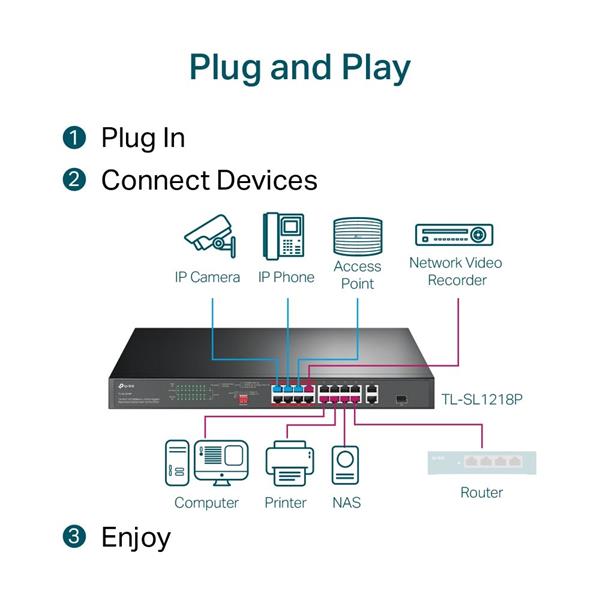

Jednoduché použitie bez nutnosti konfigurácie a inštalácie.



HARDWARE FEATURES

Interface • 16× PoE+ 10/100 Mbps RJ45 Ports

• 2× 10/100/1000 Mbps RJ45 Ports

• 1× Combo Gigabit SFP Slot

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 1000BASE-X MMF, SMF

Fan Quantity 2 Fans

Physical Security Lock Yes

Power Supply 100–240V AC, 50/60 Hz

PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant

• PoE Ports: Ports 1–16

• PoE Power Budget: 150 W

Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max Power Consumption • 12.71 W (220/50Hz. no PD connected)

• 172.8 W (220/50Hz. with 150 W PD connected)

Max Heat Dissipation • 43.34 BTU/h (no PD connected)

• 589.25 BTU/h (with 150 W PD connected)

PERFORMANCE

Switching Capacity 7.2 Gbps

Packet Forwarding Rate 5.36 Mpps

MAC Address Table 8K

Jumbo Frame 10 KB

SOFTWARE FEATURES

Advanced Features • Compatible With IEEE 802.3at/af Compliant PDs

• Extend Mode (Up to 250m PoE power supply and data transmission)

• Priority Mode

• Isolation Mode

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control

Transmission Method Store-And-Forward

OTHERS

Certification CE, FCC, RoHS

Package Contents • TL-SL1218P

• Power Cable

• Installation Guide

• Two mounting brackets and the fittings

Environment • Operating Temperature: 0–50 °C (32–122 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
