AC1200 Wall-Plate Dual-Band Wi-Fi Access Point PORT: Uplink: 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port SPEED
| Kód tovaru: | 1009919 |
|---|---|
| Výrobca: | TP-link |
| PN kód: | EAP235-Wall |
| EAN kód: | 6935364088972 |
| Záruka: | 1860 dní |
| Dostupnosť: | skladom (6) |
HARDWARE FEATURES
Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE Out Included)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power • CE:
?20 dBm (2.4 GHz, EIRP)
?23 dBm (5 GHz, EIRP)
• FCC:
?21 dBm (2.4 GHz)
?21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
• Installation Guide
• Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Príslušenstvo
AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point PORT: 1× Gigabit RJ45 Port SPEED: 450 Mbps at 2.4 GHz + 867 Mbps at 5
AC1350 bezdrátový dvoupásmový gigabitový stropní Access Point EAP225 Simultanní připojení 450Mbit/s na frekvenci 2.4GHz a 867Mbit/s na…
skladom (26)

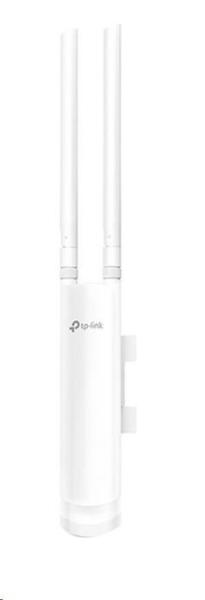

AC1200 Indoor/Outdoor Dual-Band Wi-Fi Access Point PORT: 1× Gigabit RJ45 Port SPEED: 300 Mbps at 2.4 GHz + 867 Mbps at 5
Bezdrátový přístupový bod Omada AC1200 s MU-MIMO pro montáž na stěnu EAP225-Outdoor Bytelný kryt odolný vůči klimatickým podmínkám pro tvorbu…
skladom (5)
Omada Hardware Controller PORT: 2× 10/100 Mbps Ethernet Ports, 1× USB 2.0 Port, 1× Micro USB Port FEATURE: Cloud Access,
Cloudový kontroler Omada OC200 Profesionální centralizovaná správa Wi-Fi sítě pro až 50 Access Pointů Bezplatný přístup do cloudu umožňuje…
skladom (27)
Omada 10-Port PoE+ Gigabit Smart Switch with 2 SFP Slots PORT: 8× Gigabit PoE+ Ports, 2× Gigabit SFP Slots SPEC: 802.3at
TL-SG2210MP New JetStream 10-portový gigabitový chytrý switch s 8-portovým PoE + napájaním Príkon cez PoE až 150 W: 8 portov napájaných cez…
skladom (8)

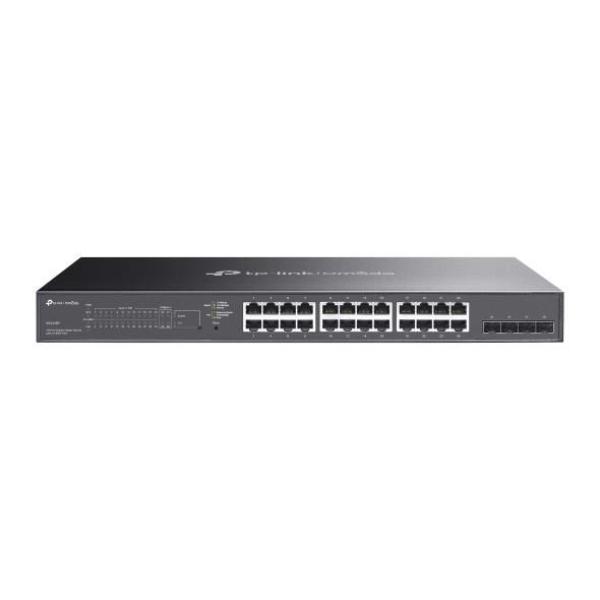

Omada 28-Port PoE+ Gigabit Smart Switch with 4 SFP Slots PORT: 24× Gigabit PoE+ Ports, 4× Gigabit SFP Slots SPEC: 802.3a
HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE…
skladom (7)
TP-Link D-EAPWALL Držák/ stojan pro EAP235-Wall, EAP615-Wall, šedý
Druh:Konzoly, stojany
skladom (4)
TP-Link D-EAPWALL-C, držák box pro upevnění na zeď pro EAP235-Wall, EAP615-Wall, EAP655-Wall, bílý (1ks)
Druh:Konzoly, stojany
skladom (2)
Parametre
| Hĺbka jedn. balenie | 3.9 |
| Hmotnosť jedn. balenie | 0.406 |
| Počet kusov jedn. balenie | 1 |
| Rozmer xyz jedn. balenie | 18.3x11.9x3.9 |
| Šírka jedn. balenie | 18.3 |
| Typ balenia jedn. balenie | Balitelné |
| Výška jedn. balenie | 11.9 |
| Počet LAN portov | 4 |
| Wi-Fi 2,4 GHz | Ano |
| Wi-Fi 5 GHz | Ano |
| WiFi 2 (802.11a) | Ano |
| WiFi 1 (802.11b) | Ano |
| WiFi 3 (802.11g) | Ano |
| Wi-Fi 4 (802.11n) | Ano |
| Wi-Fi 5 (802.11ac) | Ano |
| Rýchlosť LAN max. | 1 Gbps |
| Antény | Všesměrové |
| PoE | In (vstup) |
| PoE In standart | 802.3at (max. 33,6W) - PoE+ |
| PoE Out standard | Nepodporuje |
| PoE power budget (W) | Nevztahuje se |
| Typ zariadenia | Acces point/Bridge |
