AC750 Dual Band Wi-Fi Router SPEED: 300 Mbps at 2.4 GHz + 433 Mbps at 5 GHz SPEC: 4×Antennas, 1×10/100M WAN Port, 4×10/1

V skratke

Archer C24

AC750 Dual-Band Wi-Fi Router

High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.

Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.

Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.

Parental Controls—Manages when and how connected devices can access the internet.

Guest Network—Provides separate access for guests while securing the host network.

Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.

IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).

Compact and Mountable—Designed to conserve space and complement any décor.



WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC750

5 GHz: 433 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 2 Bedroom Houses

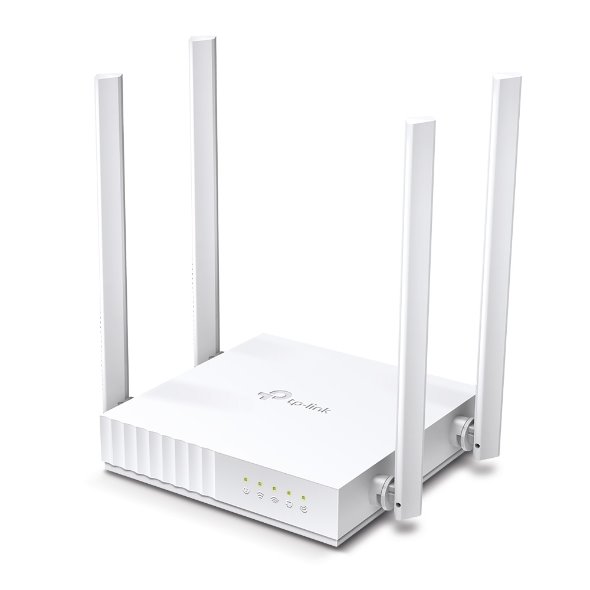

4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance

Working Modes Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor Single-Core CPU

Ethernet Ports 1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Buttons WPS/Reset Button

Power 9 V ? 0.6 A

SECURITY

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in

(115 × 106.7 × 24.3 mm)

Package Contents Wi-Fi Router Archer C24

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser



Cable or DSL Modem (if needed)



Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~60? (-40? ~140?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

WiFi Reception Sensitivity 5GHz:

11a 54M: -76dBm;

11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm;

11ac VHT80 MCS9: -62dBm

2.4GHz:

11g 54M: -76dBm;

11n HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBm
