AC750 Wi-Fi Range Extender SPEED: 300Mbps at 2.4GHz + 433Mbps at 5GHz SPEC: 3 × Internal Antennas, Wall Plugged FEATURE:

RE190

AC750 Wi-Fi Extender

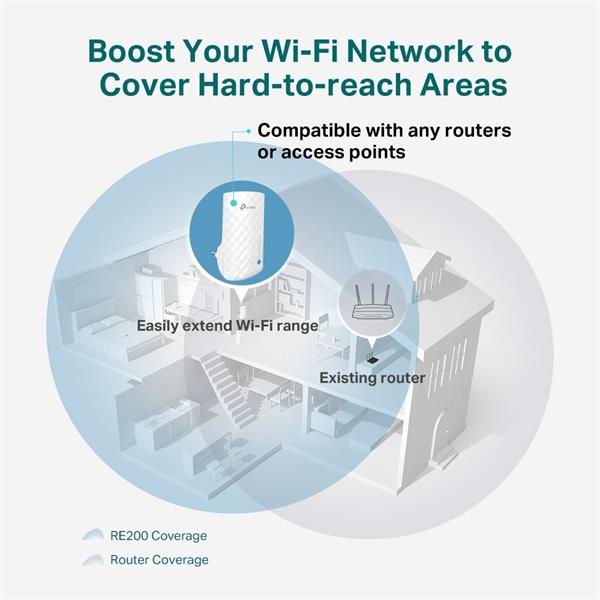

Režim Extenderu rozširuje bezchybne bezdrôtový signál na predtým nedosiahnuteľné oblasti alebo oblasti s ťažkým pripojením k drôtovému pripojeniu

Kompatibilný so zariadeniami Wi-Fi 802.11 b/g/n a 802.11ac

Rýchlosť duálneho pásma až 750 Mb/s

Vďaka miniatúrnej veľkosti a nástennému prevedeniu je ľahké jeho nasadenie a pružné premiestnenie



HARDWARE FEATURES

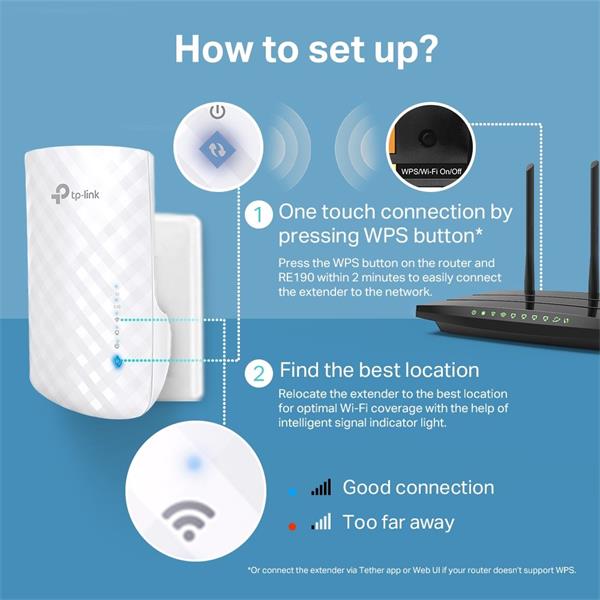

Button WPS Button, RESET Button

Input Power 100-240V~50/60Hz

Power Consumption 7.0W

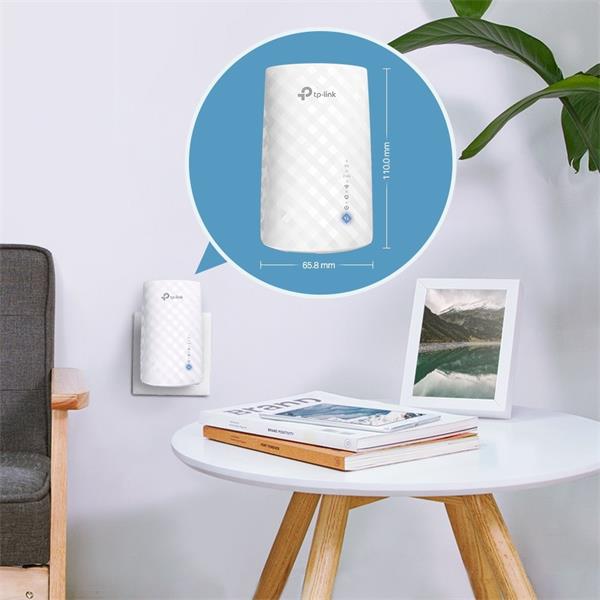

Dimensions 4.3×2.59×1.53 in. (110.0×65.8×38.8mm)

Antenna 3 Omni-directional Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE

802.11b/g/n 2.4GHz

Frequency 2.4GHz and 5GHz

Signal Rate 300Mbps at 2.4GHz, 433Mbps at 5GHz

Reception Sensitivity 5GHz:

11a 6Mbps: -94dBm, 11a 54Mbps: -78dBm

11ac HT20 MCS0: -94dBm, MCS8: -73dBm

11ac HT40 MCS0: -91dBm, MCS9: -65dBm

11ac HT80 MCS0: -88dBm, MCS9: -62dBm

2.4GHz:

11g 54Mbps: -78dBm, 11n HT20: -75dBm

11n HT40: -73dBm

Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz);

<30dBm(5.47GHz~5.725GHz)

Wireless Functions WMM, Short GI, High Speed, WPS

Wireless Security WEP, WPA/WPA2-PSK encryptions

Transmission Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz);

<30dBm(5.47GHz~5.725GHz)

OTHERS

Certification CE, RoHS

Package Contents Range Extender RE190

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or

Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari

4.0, or other Java-enabled browser

Environment Operating Temperature: 0°C ~ +40°C

Storage Temperature: -40°C ~ +70°C

Operating Humidity: 10% ~ 90%RH

Storage Humidity: 5% ~ 90%RH
