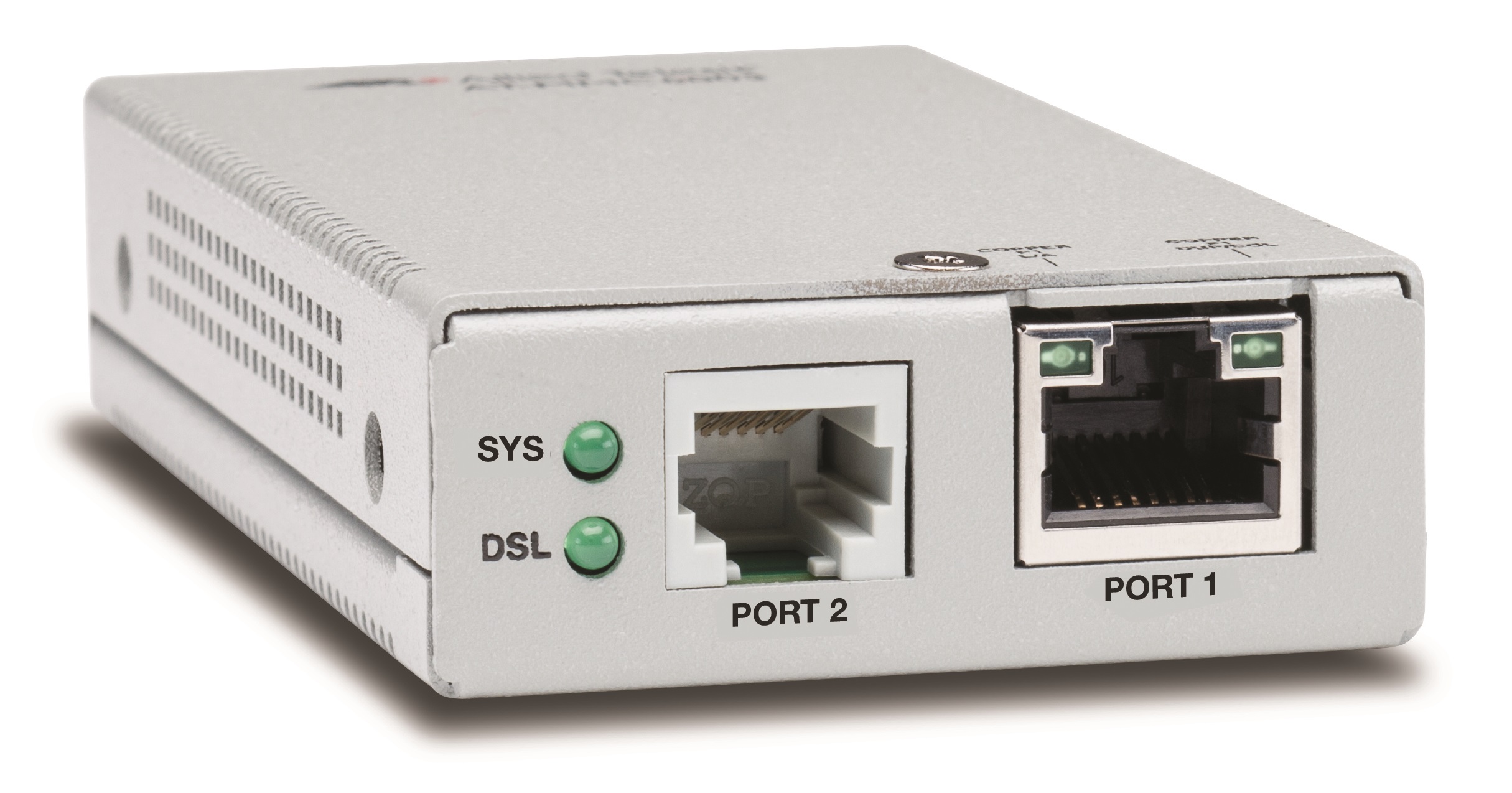

Allied Telesis MC VDSL2 do 10/ 100/ 1000T AT-MMC6005

MMC6000 Series - Gigabit Ethernet over VDSL and Coax Mini Media Converters

OVERVIEW

Extended Ethernet Operation

Used as a pair, the Allied Telesis ATMMC6005 provides up to 150Mpbs of bidirectional data transfer, while supporting POTS* service over phonegrade, twisted-pair wiring (CAT1, 2, 3) at distances up to 3 km or 10,000 feet. These units are the ideal solution for providing data on “last-mile” twistedpair circuits or existing in-building wiring. Standard Ethernet operation is preserved end-to-end, retaining VLAN tags, and Ethernet MAC information across the link, while higher layer protocols are passed transparently. 10/100Mbps Ethernet operation is supported simultaneously with POTS*, ISDN or PBX signaling, without disruption.

MTU and MDU Applications

Multi-Tenant Units (MTU) such as offices and campuses, and Multiple Dwelling Units (MDU) such as hotels and apartments are an ideal environment for AT-MMC6005 network extenders, where private phone-grade wiring can be used to provide broadband access to Internet services including video streaming, World Wide Web, gaming and e-mail. There is no need to re-wire premises with expensive CAT5 or fiber to provide broadband Ethernet services.

Standalone and Rack-mount

The Allied Telesis AT-MMC6005 provider unit is available as a compact standalone unit for installation at the central office, or alternatively, it can be rack-mounted in a standard Allied Telesis AT-MMCR-18 chassis. Capable of housing up to eighteen units in one compact chassis, it features a redundant power supply, simplifying wiring and minimizing space requirements.

Plug and Play Operation

Simply connect to the RJ-45 Ethernet port and the unit will automatically auto-sense and configure for 10/100/1000T, as well as full- or halfduplex Ethernet operation.

Key features

* Up to 150Mbps bidirectional VDSL operation up to 3 km or 10,000 ft
* Can function as a subscriber or provider by flipping a switch
* Supports both fast mode and interleave mode
* Operates over category 1, 2, 3 or 5 telephone-quality cabling 10/100/1000
* Ethernet port
* Auto MDI/MDI-X
* System, Ethernet and VDSL LEDs
* Configurable via DIP switches
* Standalone and rack-mountable
* Wall-mountable using optional AT-WLMT bracket
* Compact form factor
* Both symmetrical and asymmetrical operation
* Metal chassis
* Energy Star compliant external power adapter

TECHNICAL SPECS

Product Specifications
*DMT modulation
*Spectrally compatible with ISDN and POTS services FDD duplexing
*Datarate up to 100Mbps / 60Mbps full-duplex
*4M flash
*Half-/full-duplex
*Auto-negotiation
*Auto MDI/MDI-X

Speed/Distance
*Speed up to 100Mbps / 60Mbps at short distances; data throughput up to 3km or 10,000ft distances (subject to cable type)

Front Panel Indicators

*System power
*Ethernet link
*Ethernet activity
*VDSL link
*VDSL rate

Interface Connections

*VDSL interface: RJ-11
*Ethernet interface: RJ-45
*POTs interface: RJ-11
*Management: 4-pin DIP switch

Physical Characteristics VDSL Interface

*Dimensions (W × D × H): 50.8 mm x 99.1 mm x 20.3 mm
*Weight: 0.2 kg
*Mounting Tabletop and rack-mountable (requires AT-MMCR18 chassis)

Environmental Specifications

*Operating Temperature: 0 °C to 50 °C
*Storage Temperature: -30° C to 70° C
*Operating Humidity: 5% to 90% non-condensing
*Storage Humidity: 5% to 95% non-condensing
*Operating Altitude Range: Up to 3,000 m

Power Characteristics

*External power supply: 240V AC, 50Hz
*Input supply voltage: 12vDC
*Max current: 300mA
*Power consumption: 2W
*Energy Star compliant

Country of Origin
China
