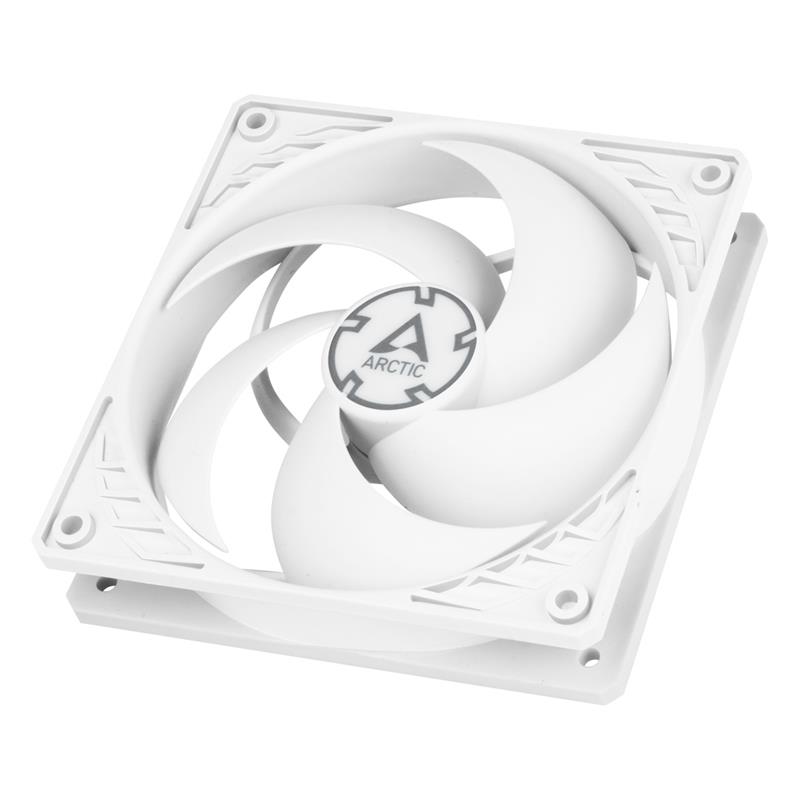

Arctic ventilátor P12 PWM PST W

General Specifications
Performance
Fan Speed:
200—1800 rpm PWM Controlled (0 rpm below 5 % PWM)
Airflow:
56.30 cfm | 95.70 m3/h
Static Pressure:
2.20 mmH2O
Noise Level:
0.3 Sone
Operating Ambient Temperature:
0—40 °C
Warranty:
6 years
Fan
Fan Frame:
Standard
Control Type:
PWM PST
Connector:
4-Pin Connector + 4-Pin Socket
Fan Bearing:
Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage:
12 V DC
Starting Voltage:
3.9 V
Current | Voltage:
0.1 A | 12 V DC
Cable Length:
400 mm
Size & Weight
Length:
120 mm
Width:
120 mm
Height:
25 mm
Weight:
145 g
