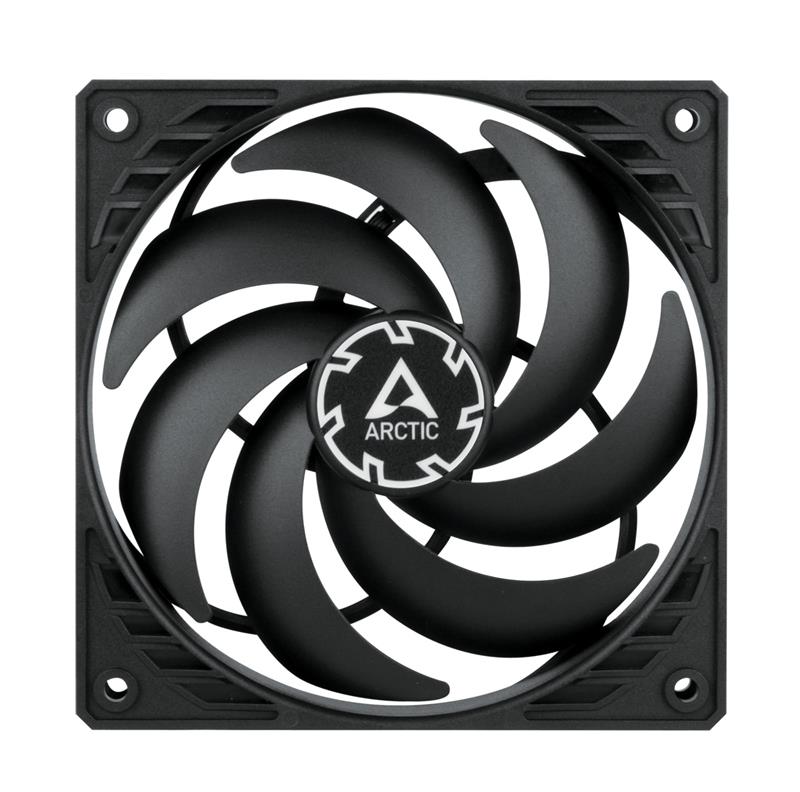

Arctic ventilátor P12 Slim PWM PST

Technical specifications & manual
General Specifications
Performance
Fan Speed:
300—2100 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow:
42.10 cfm |71.53 m3/h
Static Pressure:
1.45 mmH2O
Noise Level:
0.3 Sone
Warranty:
6 Years
Fan
Fan Frame:
Standard
Control Type:
PWM PST
Connector:
4-Pin Connector + 4-Pin Socket
Fan Bearing:
Fluid Dynamic Bearing
Operating Ambient Temperature:
0—40 °C
Electric Characteristics
Typical Voltage:
12 V DC
Starting Voltage:
5 V
Current | Voltage:
0.12 A | 12 V DC
Cable Length:
400 mm

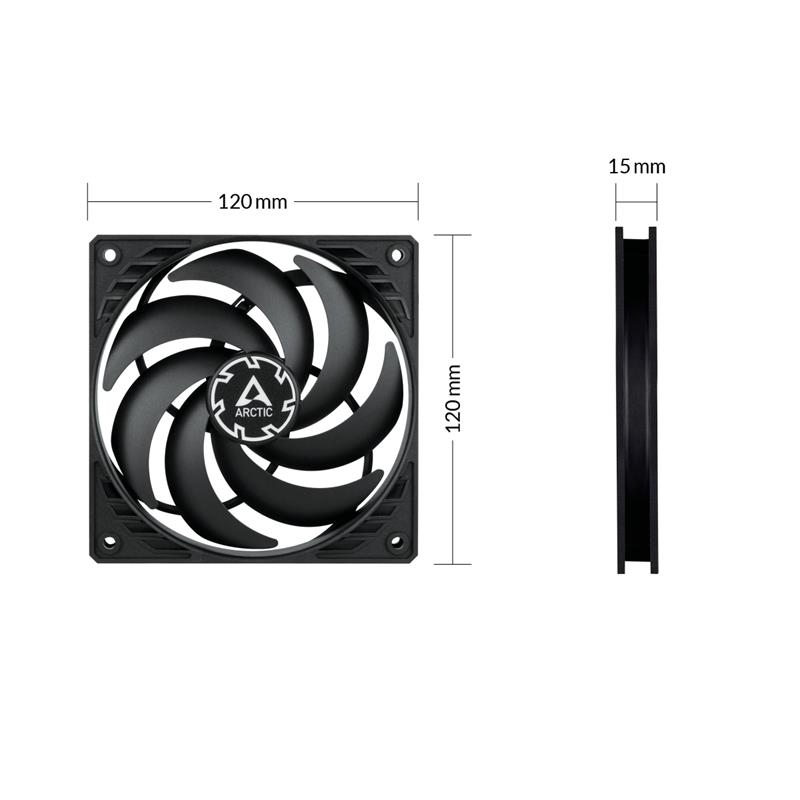

Size & Weight
Length:
120 mm
Width:
120 mm

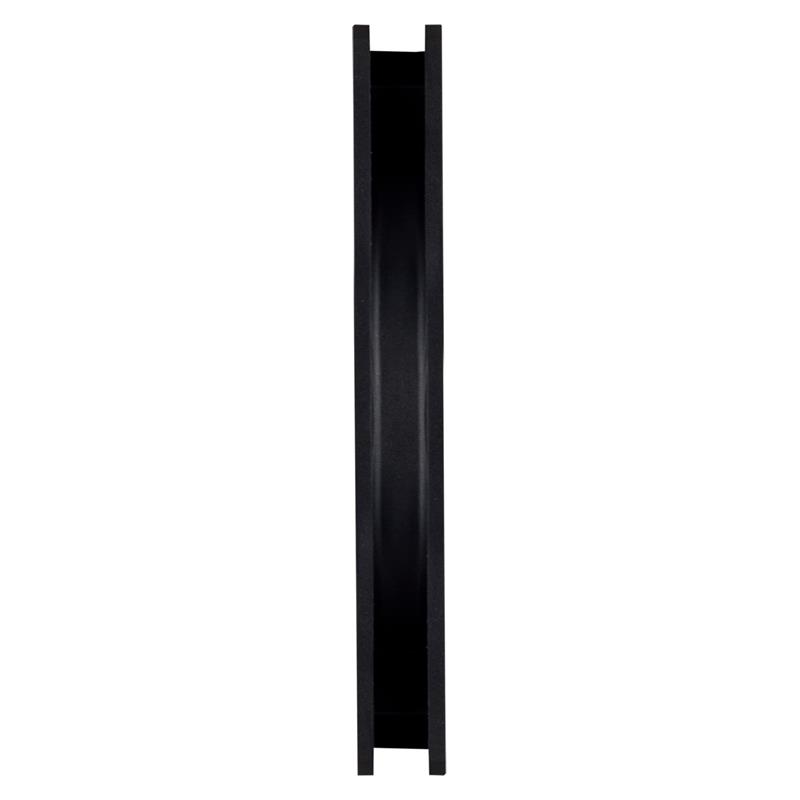

Height:
15 mm
Weight:
85 g
