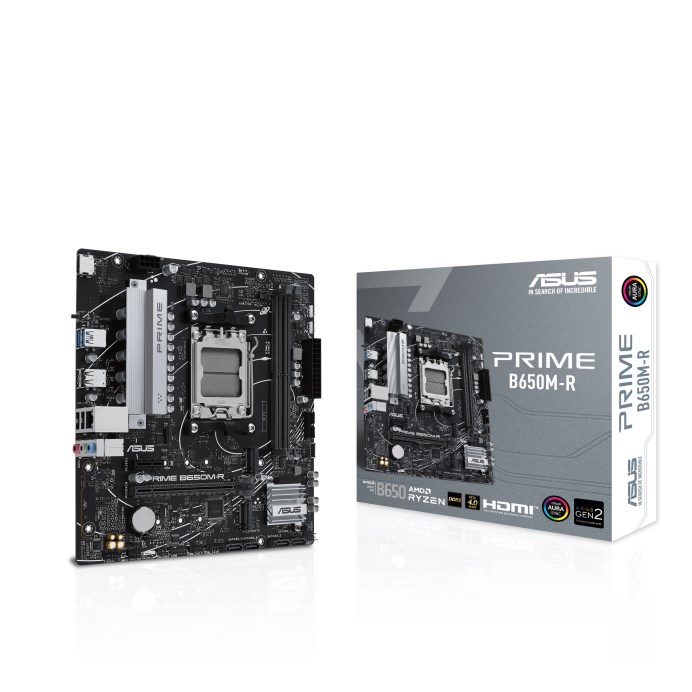

ASUS MB Sc AM5 PRIME B650M-R, AMD B650, 2xDDR5, 1xHDMI, mATX
![ASUS MB Sc AM5 PRIME B650M-R, AMD B650, 2xDDR5, 1xHDMI, mATX](/obr/2a/600/388000/386998-1.jpg)
Kód tovaru: | 2466879 |
---|---|
Výrobca: | Asus |
PN kód: | 90MB1H30-M0EAY0 |
EAN kód: | 4711387429761 |
Záruka: | 24 mesiacov |
Dostupnosť: | skladom (10) |

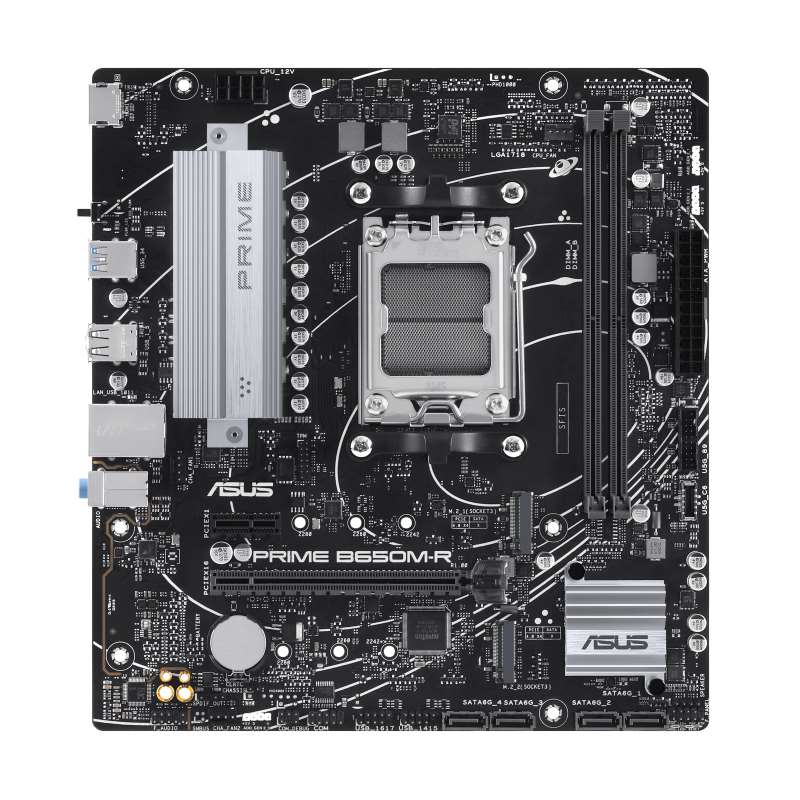

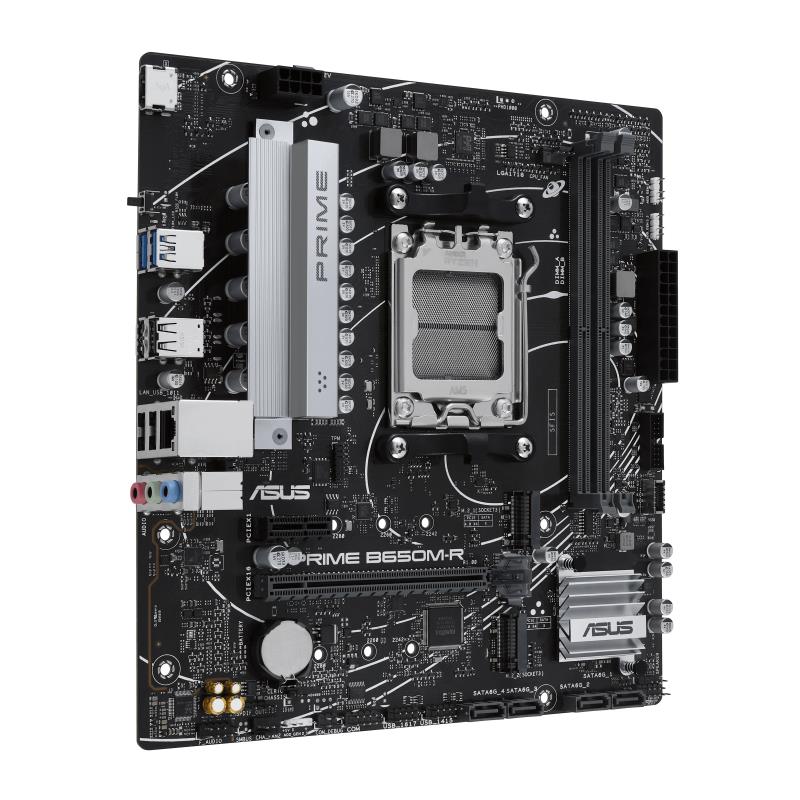

ASUS PRIME B650M-R
Základní desky ASUS řady Prime jsou odborně navrženy tak, aby plně využily potenciál procesorů AMD Ryzen řady 7000. PRIME B650M-R se může pochlubit robustním designem napájení, komplexními řešeními chlazení a inteligentními možnostmi ladění a poskytuje uživatelům a výrobcům PC kutilů řadu optimalizací výkonu prostřednictvím intuitivního softwaru a funkcí firmwaru.
![](https://edshop.edsystem.cz/IMGCACHE/_1700/1700807_0a.jpg)
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x HDMI™ port*
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

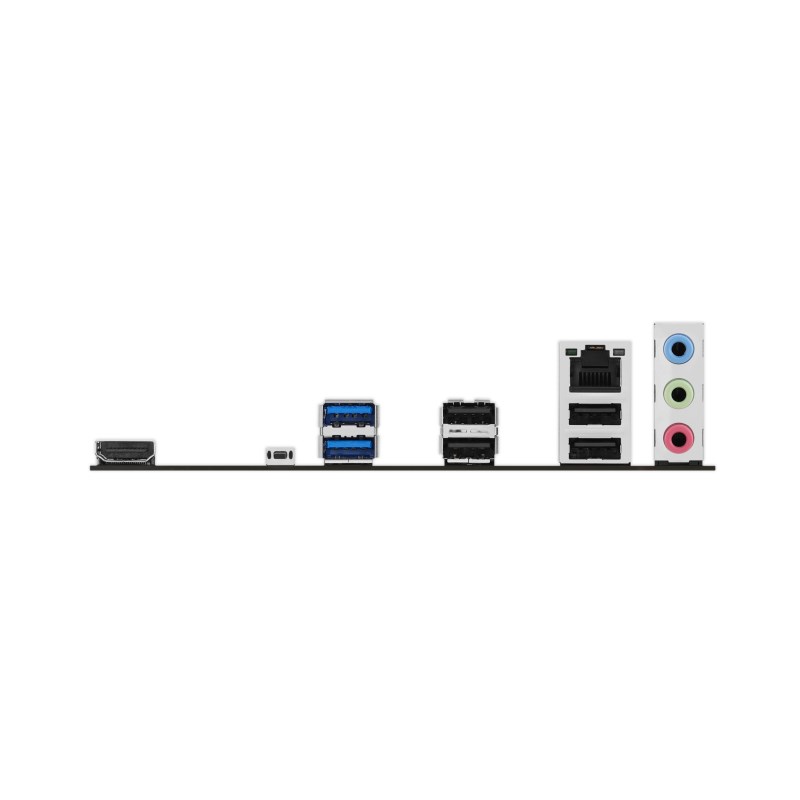

Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
Aura Sync
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 Anchors
Documentation
1 x Quick start guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor
23.6 cm x 22.1 cm
Parametre
Šířka jedn. balení | 26.9 |
Typ balení jedn. balení | Balitelné |
Počet kusů jedn. balení | 1 |
Hmotnost jedn. balení | 1 |
Rozměr xyz jedn. balení | 26.9x27.4x5.6 |
Hloubka jedn. balení | 5.6 |
Výška jedn. balení | 27.4 |
RAID řadič | Ano |
Počet LAN výstupů | 1x LAN konektor |
WiFi | Ne |
Velikost základní desky | mikro ATX |
Podpora pro paměti typu | DDR5 |
TPM Header | Ano |
COM port (interní) | Ano |
LPT port (interní) | Ne |
BlueTooth | Ne |
VGA | Ne |
DVI | Ne |
HDMI | Ano |
DisplayPort / miniDisplayPort | Ne |
ThunderBolt (interní) | Ne |
XMP | Ano |
Typ síťové karty | Realtek |
Výrobce chipsetu | AMD |
Patice | AM5 |
Chipset | B650 |
Max. velikost op. paměti (GB) | 96 |
Počet slotů M.2 | 2 |
Počet USB 2.0 (externí) | 4 |
Počet USB 3.x (externí) | 2 |
Maximální frekvence pamětí | 7200+ |
Počet slotů PCIe x16 | 2 |
Počet slotů PCIe x1 | 1 |
Počet slotů PCI | 0 |
Počet konektorů SATA 3Gb/s | 0 |
Počet konektorů SATA 6Gb/s | 4 |
Počet paměťových slotů | 2 |
Počet USB Typ C (externí) | 0 |
COM port (externí) | Ne |
LPT port (externí) | Ne |
Podpora generace CPU | 7. a 8. gen. Ryzen |
USB Typ C (interní) | 1 |
Rychlost LAN | 2,5Gb/s |
Model | ASUS PRIME B650M-R |
PCIe 4.0 x16 | Ano |
M.2 v režimu PCIe 4.0 x4 | Ano |
