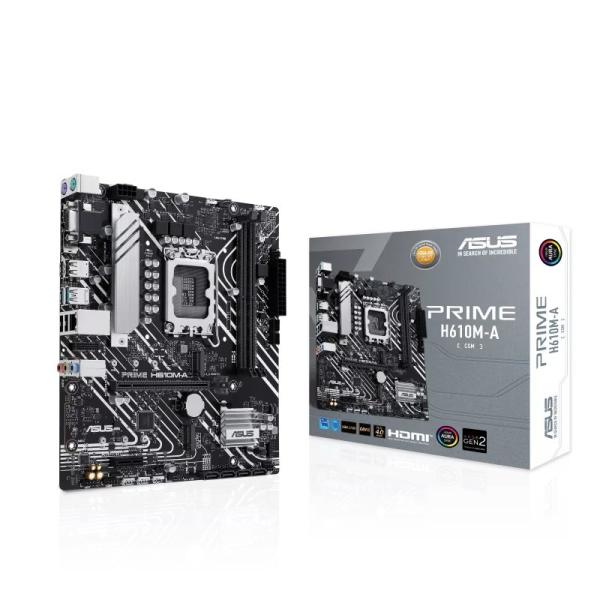

ASUS MB Sc LGA1700 PRIME H610M-A-CSM, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX
![ASUS MB Sc LGA1700 PRIME H610M-A-CSM, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX](/obr/2a/600/368000/366074-1.jpg)
Kód tovaru: | 2414342 |
---|---|
Výrobca: | Asus |
PN kód: | 90MB1G20-M0EAYC |
EAN kód: | 4711387293911 |
Záruka: | 24 mesiacov |
Dostupnosť: | skladom (27) |

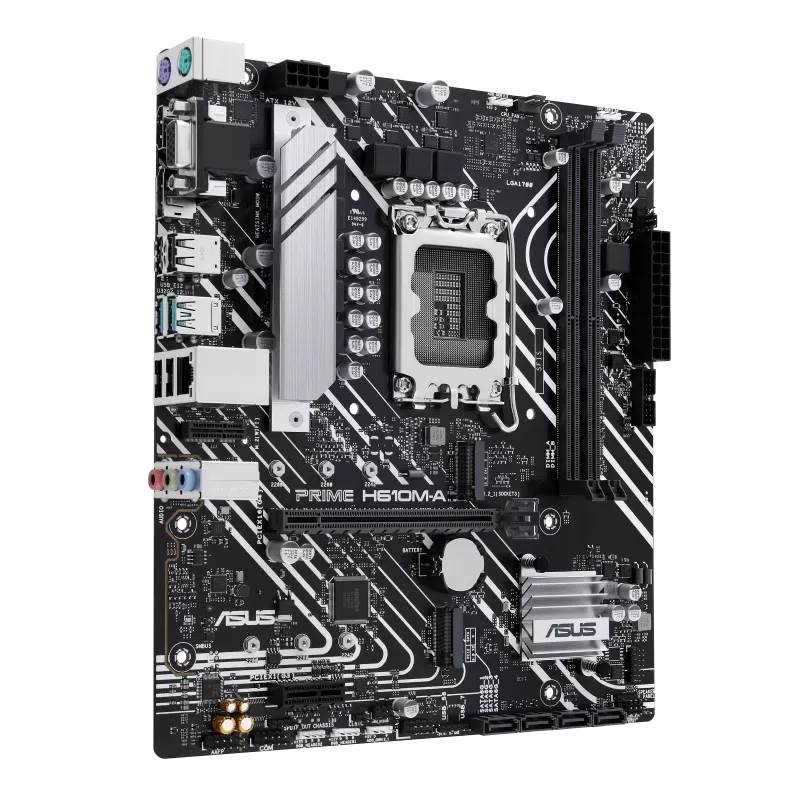

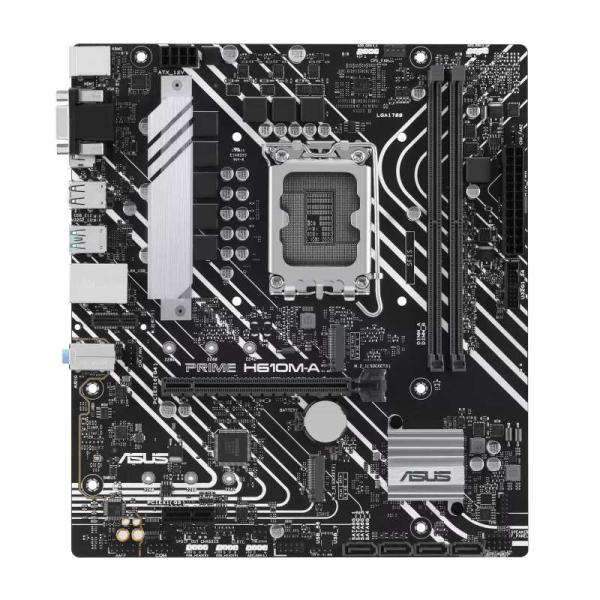

ASUS PRIME H610M-A-CSM
Intel® H610 (LGA 1700) mATX motherboard with PCIe 4.0, dual M.2 slots, DDR5, Intel® 1Gb Ethernet, DisplayPort, HDMI™, VGA, USB 3.2 Gen 2 ports, Addressable Gen 2 headers, and Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet and USB 3.2 Gen 2 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
![](https://edshop.edsystem.cz/IMGCACHE/_1679/1679724_0a.jpg)
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H610 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x VGA port
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

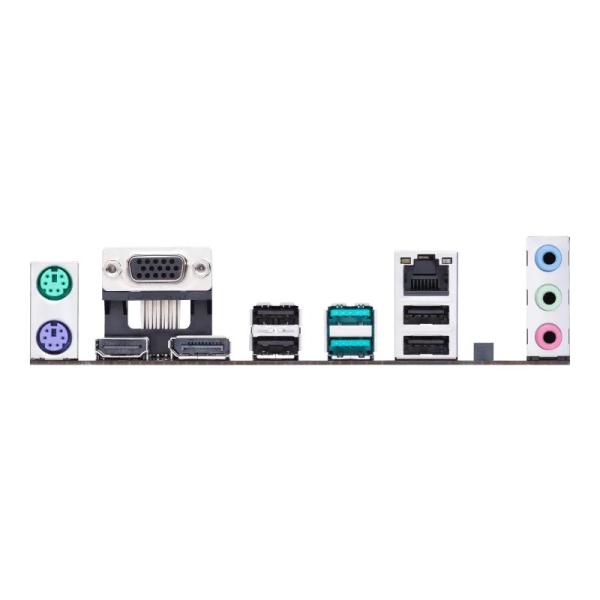

Back Panel I/O Ports
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Vertical M.2 slot (Key E)
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor
24.4 cm x 21.6 cm
Parametre
Počet kusů jedn. balení | 1 |
Typ balení jedn. balení | Balitelné |
Rozměr xyz jedn. balení | 26.5x27.4x5.6 |
Rozměr xyz kartonu | 56.4x28.7x29.2 |
Hmotnost kartonu | 10.270 |
Hmotnost jedn. balení | 0.940 |
Počet kusů v kartonu | 10 |
Typ balení kartonu | Balitelné |
Šířka jedn. balení | 26.5 |
Výška jedn. balení | 27.4 |
Hloubka jedn. balení | 5.6 |
Typ obalu kartón | Expedovatelné |
RAID řadič | Ne |
Počet LAN výstupů | 1x LAN konektor |
WiFi | Ne |
Velikost základní desky | mikro ATX |
Podpora pro paměti typu | DDR5 |
TPM Header | Ano |
COM port (interní) | Ano |
LPT port (interní) | Ne |
BlueTooth | Ne |
VGA | Ano |
DVI | Ne |
HDMI | Ano |
DisplayPort / miniDisplayPort | Ano |
ThunderBolt (interní) | Ne |
XMP | Ano |
Typ síťové karty | Intel |
Výrobce chipsetu | Intel |
Patice | LGA 1700 |
Chipset | H610 |
Max. velikost op. paměti (GB) | 96 |
Počet slotů M.2 | 2 |
Počet USB 2.0 (externí) | 4 |
Počet USB 3.x (externí) | 2 |
Maximální frekvence pamětí | 5600 |
Počet slotů PCIe x16 | 1 |
Počet slotů PCIe x1 | 1 |
Počet slotů PCI | 0 |
Počet konektorů SATA 3Gb/s | 0 |
Počet konektorů SATA 6Gb/s | 4 |
Počet paměťových slotů | 2 |
Počet USB Typ C (externí) | 0 |
COM port (externí) | Ne |
LPT port (externí) | Ne |
Podpora generace CPU | 12. a 13. gen. Intel |
USB Typ C (interní) | 0 |
ARGB LED Header | Ano |
Rychlost LAN | 1Gb/s |
Model | ASUS PRIME H610M-A-CSM |
PCIe 4.0 x16 | Ano |
M.2 v režimu PCIe 3.0 x4 | Ano |
