ASUS ROG STRIX 850W PLATINUM Modular

ROG STRIX 850W Platinum
ROG Strix 850W Platinum is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and intelligent stabilizer in striking style.

GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.

"GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.

Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.

Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

0dB technology lets you enjoy light gaming in relative silence.

ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.

PCIe 5.1 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power.

Lambda A Certification Certified low noise levels, below 25 dB.

80 PLUS & Cybenetics Platinum certified: ROG Strix Platinum leverages low-ESR capacitors and premium components for industry-leading power efficiency.?

10-year warranty included.

Model

ROG STRIX 850W Platinum

Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
80 PLUS Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 70.8A 0.3A 3A
Combined Load
130W 130W 850W 3.6W 15W
Total Output
850W

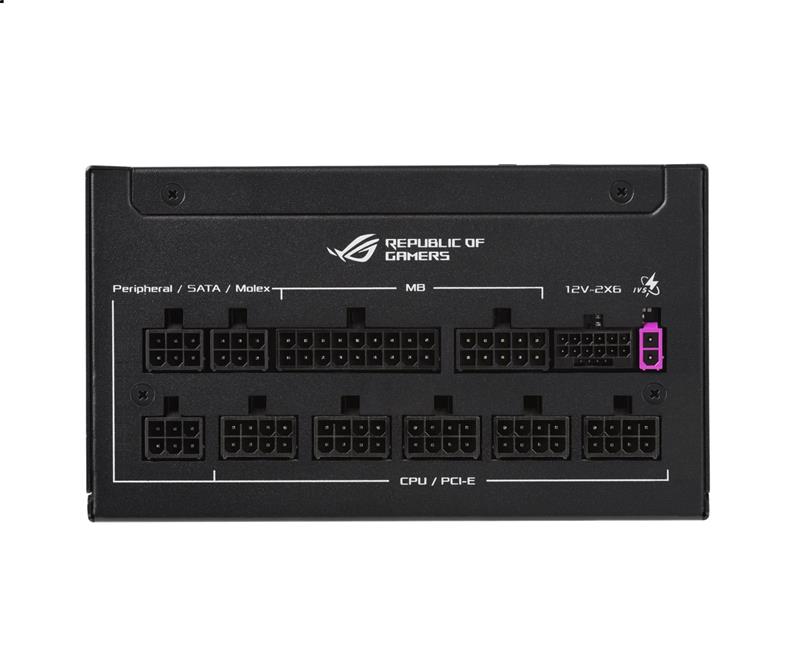

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 3
SATA x 6
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 3 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
Dimensions
160 x 150 x 86 mm
Weight
1.78 kg (single PSU)
Cybenetics Noise Level Certification
A
AURA SYNC
No
MTBF
>120,000 hrs @ 25°C

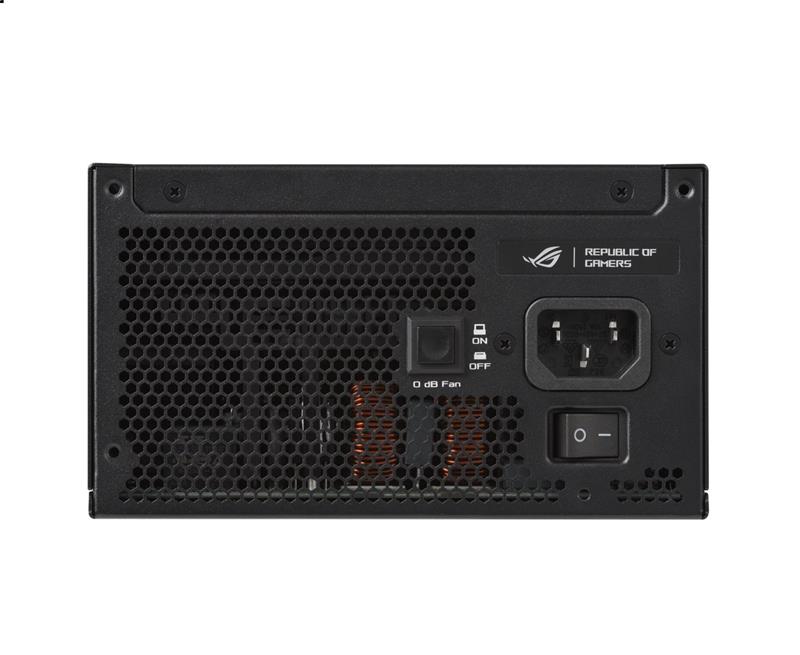

0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
