ASUS ROG STRIX B860-I GAMING WIFI

ASUS ROG STRIX B860-I GAMING WIFI

* Mini ITX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 2 x sloty DIMM, max. 96 GB, DDR5 - Podporuje až 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
*Dvoukanálová paměťová architektura
*DIMM Fit
*Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
*ASUS Enhanced Memory Profile III (AEMPIII)

Grafické porty:
*1 x DisplayPort
*1 x HDMI™ port
*1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs

Rozšiřující sloty:
Intel® Core™ Ultra Processors (Series 2)
*1 x PCIe 5.0 x16 slot

Úložný prostor:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)
*M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset**
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*4 x SATA 6Gb/s ports

Ethernet:
*Wi-Fi 7
*2x2 Wi-Fi 7 (802.11be)
*Supports 2.4/5/6GHz frequency band
*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
*Bluetooth® v5.4

Připojení a Bluetooth:

USB:
Zadní USB (Total 7 ports)
*1 x Thunderbolt™ 4 port (1 x USB Type-C®)
*1 x USB 20Gbps port (1 x USB Type-C®)
*1 x USB 10Gbps ports (1 x Type-A)
*3 x USB 5Gbps ports (3 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)

Přední USB (Total 7 ports)
*1 x USB 10Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
*SupremeFX Shielding Technology
*Savitech SV3H712 AMP
*Rear optical S/PDIF out port
*Premium audio capacitors
*Dedicated audio PCB layers

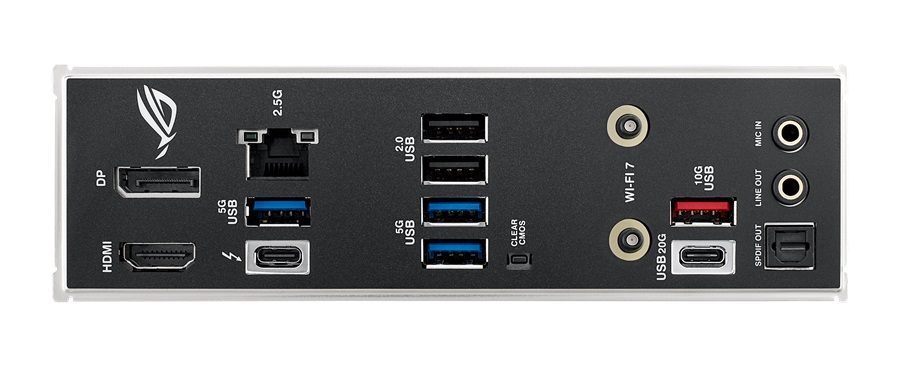

Vstupy/výstupy zadního panelu:
*1 x Thunderbolt™ 4 port (1 x USB Type-C®)
*1 x USB 20Gbps port (1 x USB Type-C®)
*1 x USB 10Gbps ports (1 x Type-A)
*3 x USB 5Gbps ports (3 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Intel® 2.5Gb Ethernet port
*2 x Audio jacks
*1 x Optical S/PDIF out port
*1 x Clear CMOS button

Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin AIO Pump header
*1 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector
Úložiště:
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 10Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports
Různé:
*2 x Addressable Gen2 headers
*1 x Front Panel Audio header (F_AUDIO)
*1 x 10-1 pin Front System Panel header
*1 x Thermal Sensor header

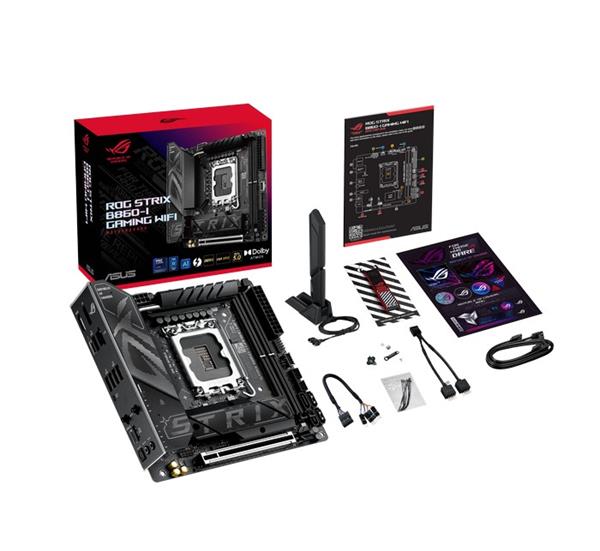

Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*1 x Cable ties package
*2 x Screw packages for M.2 SSD
*1 x Fan Bracket
*1 x ROG key chain
*1 x ROG Strix stickers
Dokumenty:
*1 x Quick start guide
