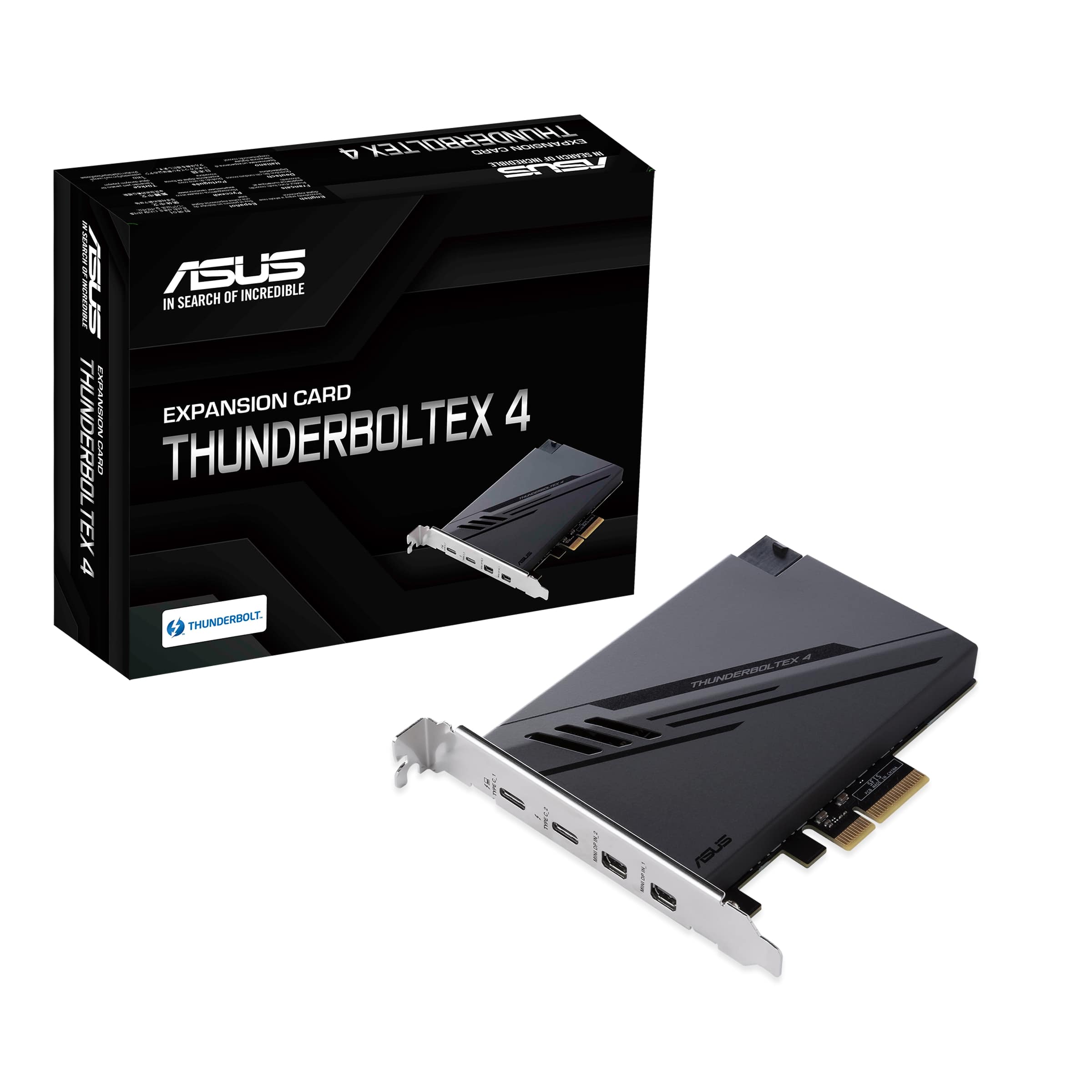

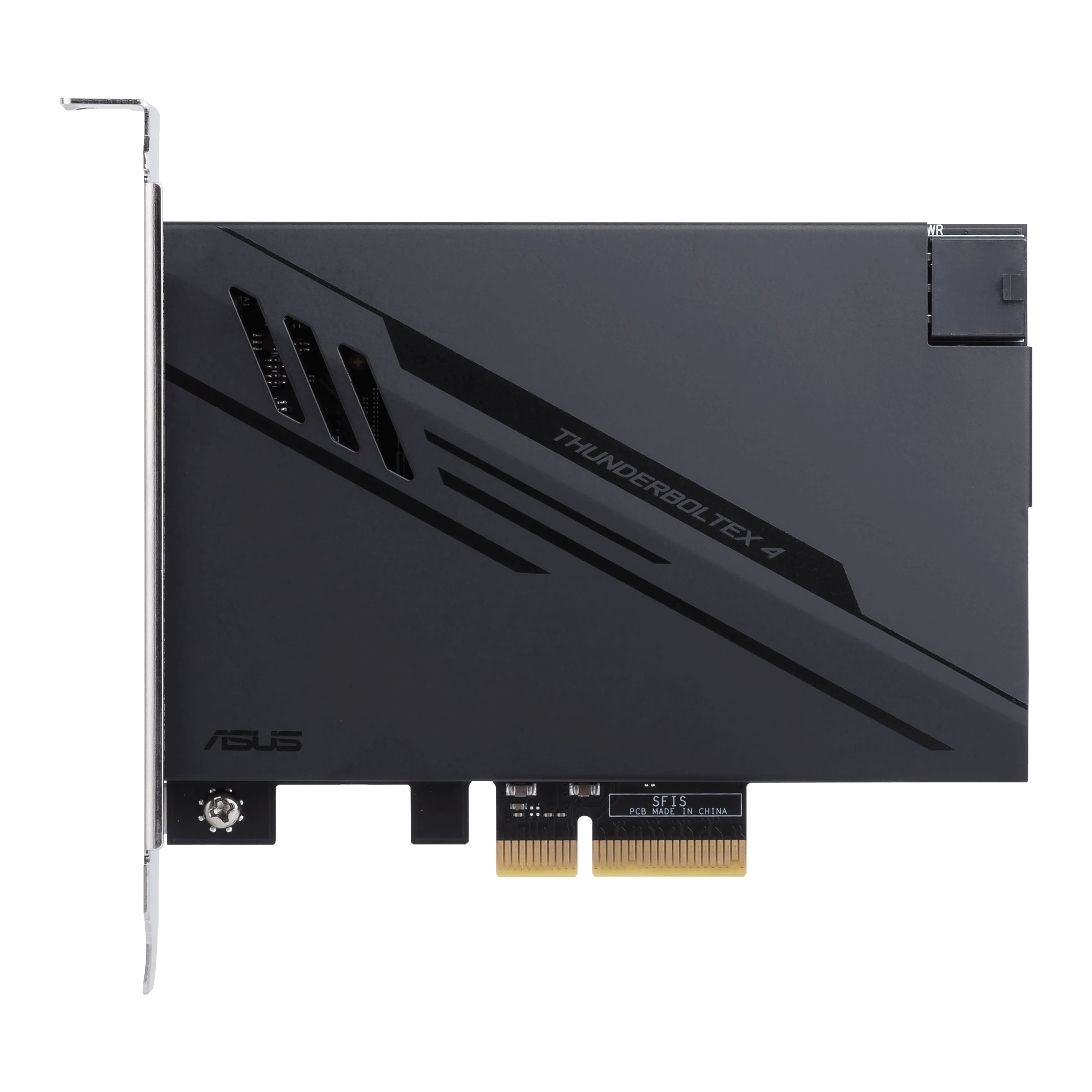

ASUS THUNDERBOLTEX 4

Kód tovaru: | 1018714 |
---|---|
Výrobca: | Asus |
PN kód: | 90MC09P0-M0EAY0 |
EAN kód: | 4711081115243 |
Záruka: | 24 mesiacov |
Dostupnosť: | nie je skladom |
Rozširujúca karta ASUS ThunderboltEX 4, dva porty Thunderbolt™ 4 (USB-C®), DisplayPort™ 1.4, rozhranie PCIe® 3.0 x4
Prídavná karta Thunderbolt™ 4 s certifikáciou Intel®
Obojsmerná šírka pásma 40 Gbps pre superrýchle prenosy dát a video výstup
Dva porty Thunderbolt™ 4 (USB-C®) s podporou až piatich zariadení Thunderbolt v reťazci
DisplayPort™ 1.4 pre podporu 8K Ultra HD
Chipset
Intel® Thunderbolt™ 4 JHL8540 Controller

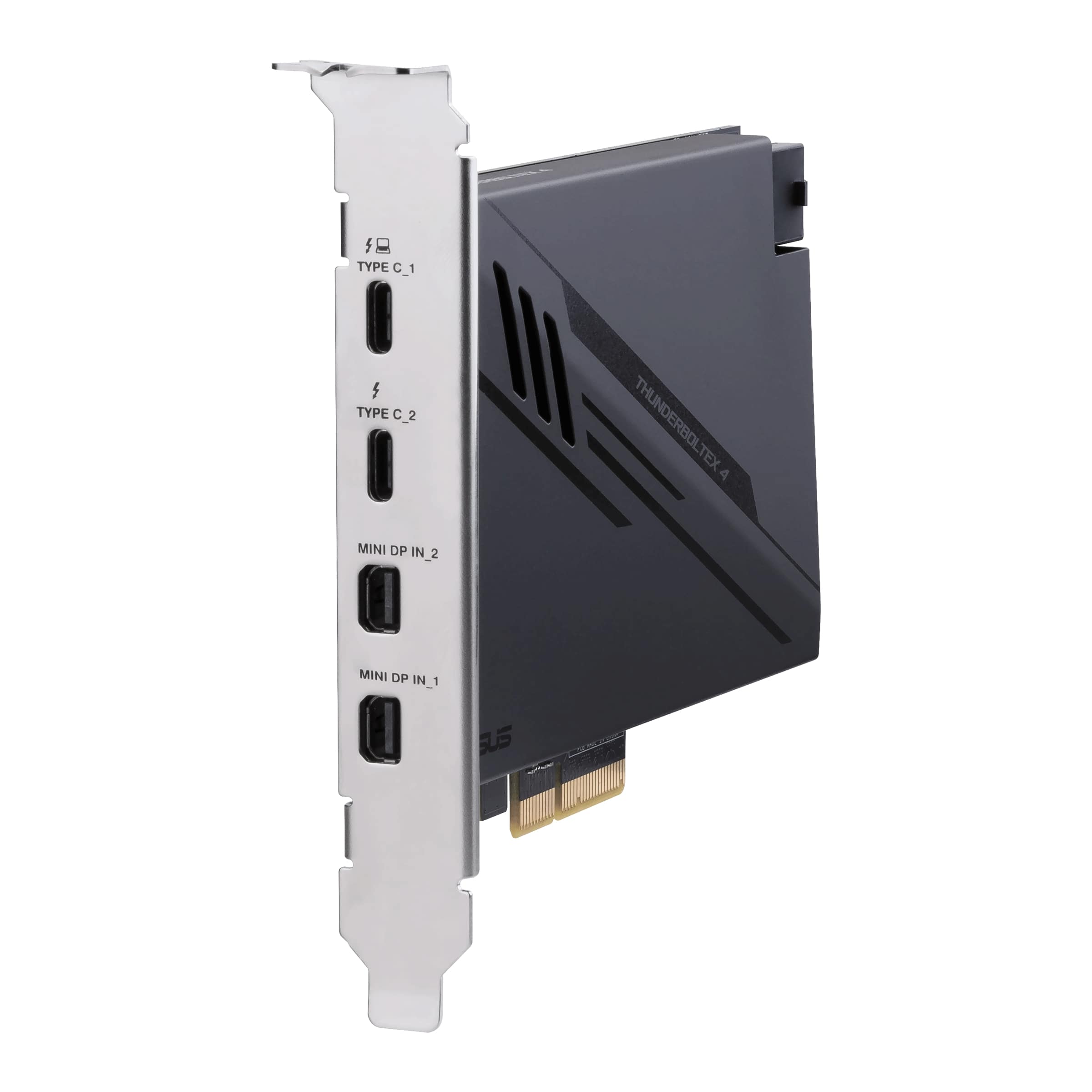

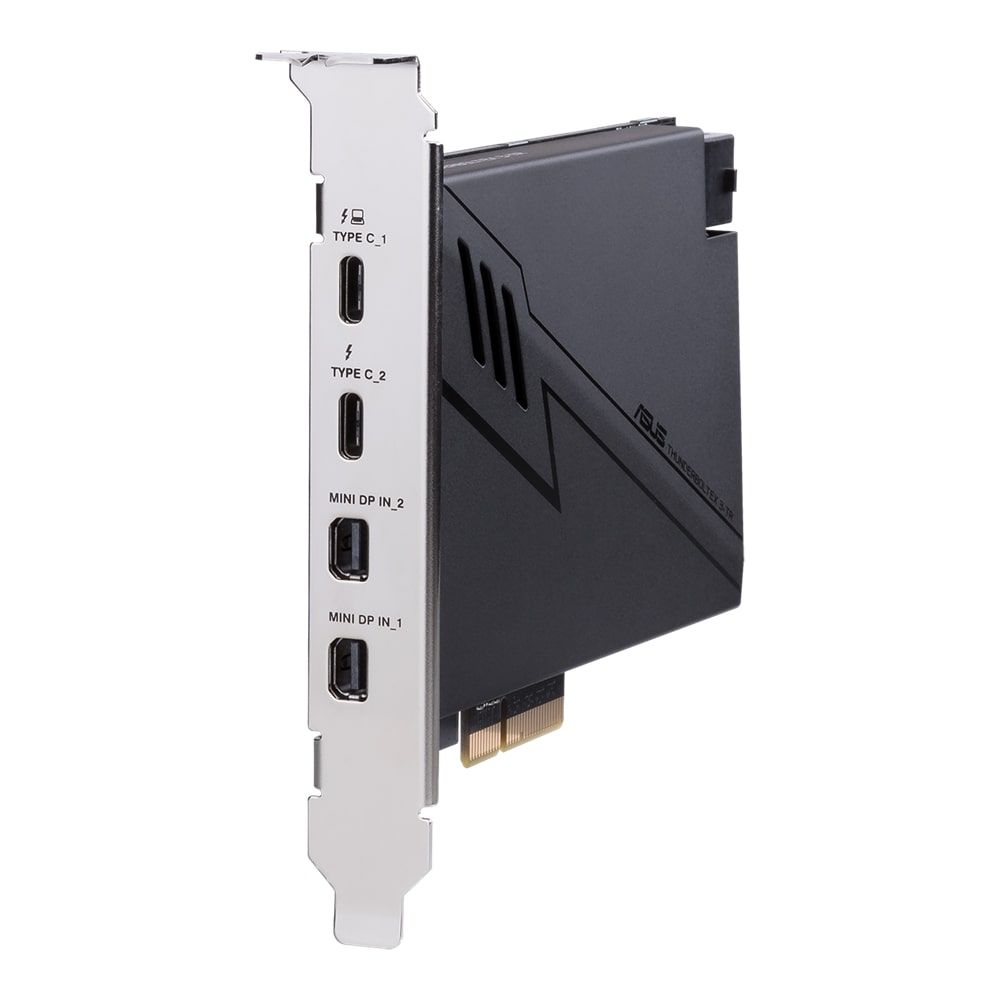

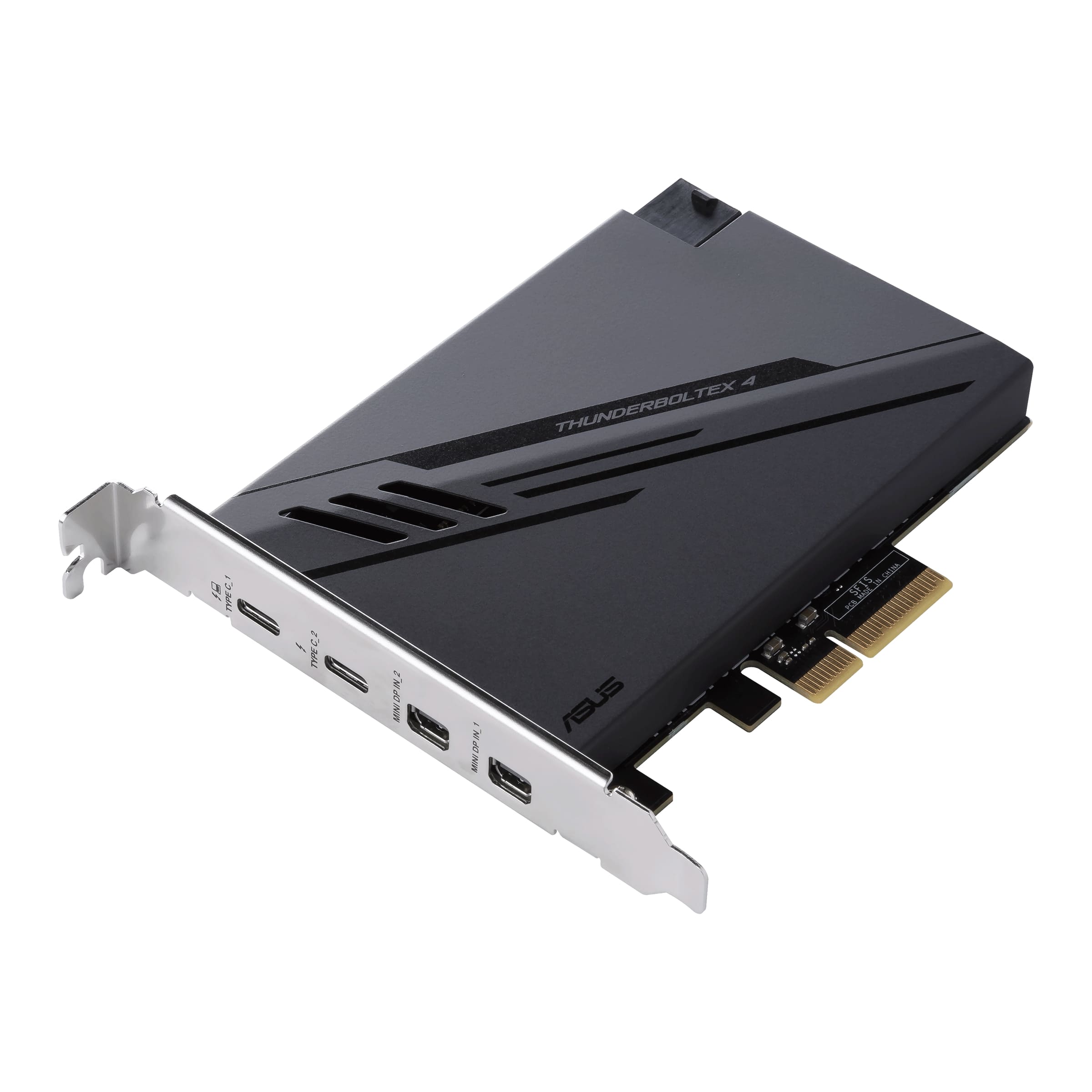

External Connectors
2 x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4 technology)
- up to 40Gbps for Thunderbolt devices
- The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature.
2 x mini DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x Thunderbolt header
Interface
PCIe 3.0 x4 interface
VGA
Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz*
* Max resolution support will depend on your VGA source

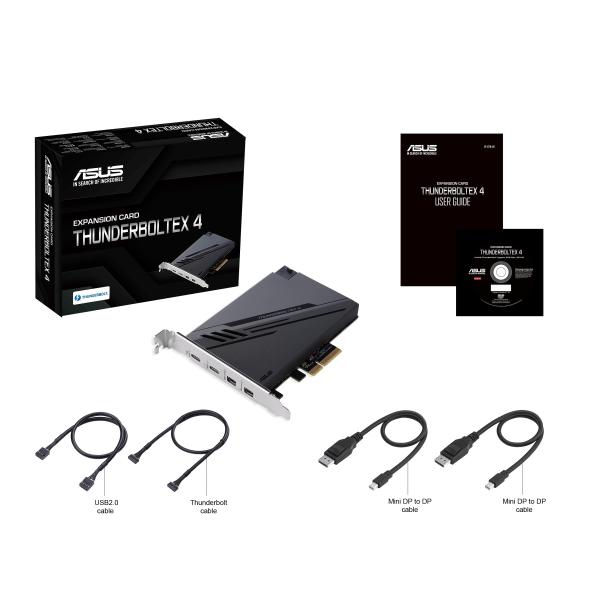

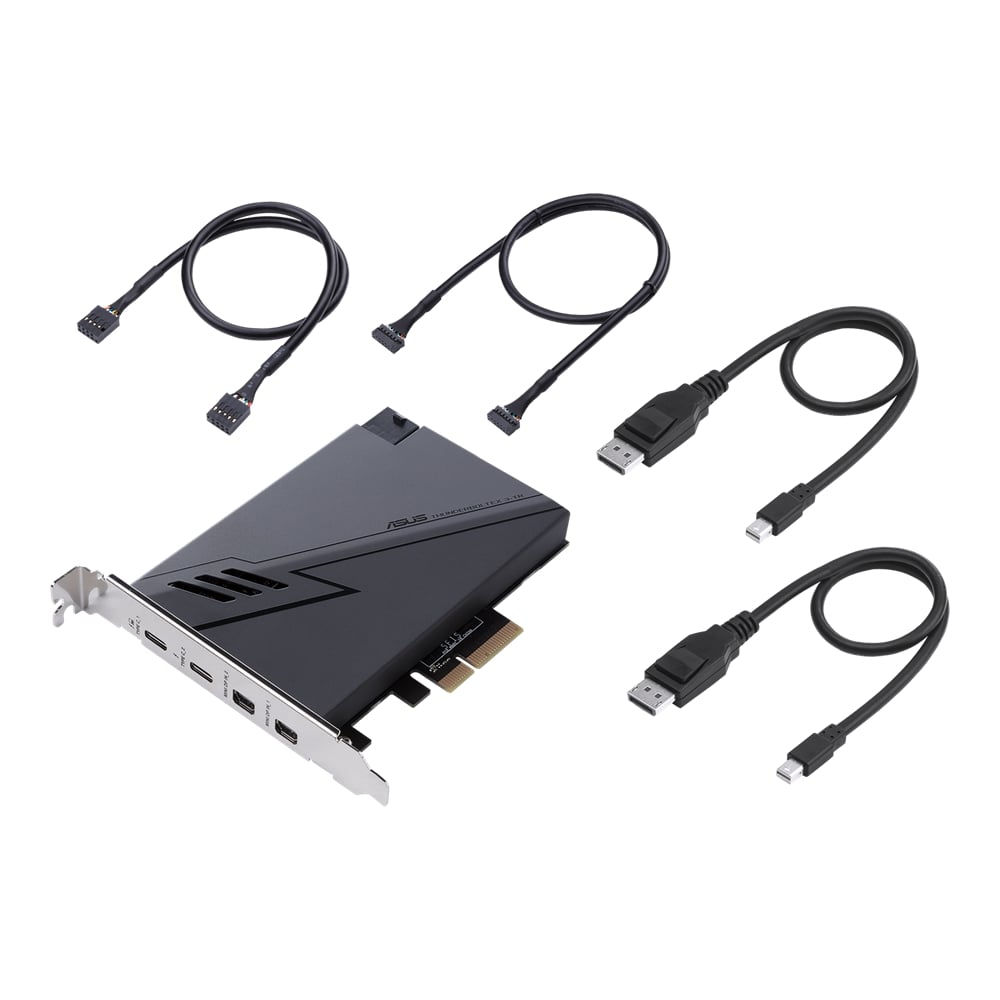

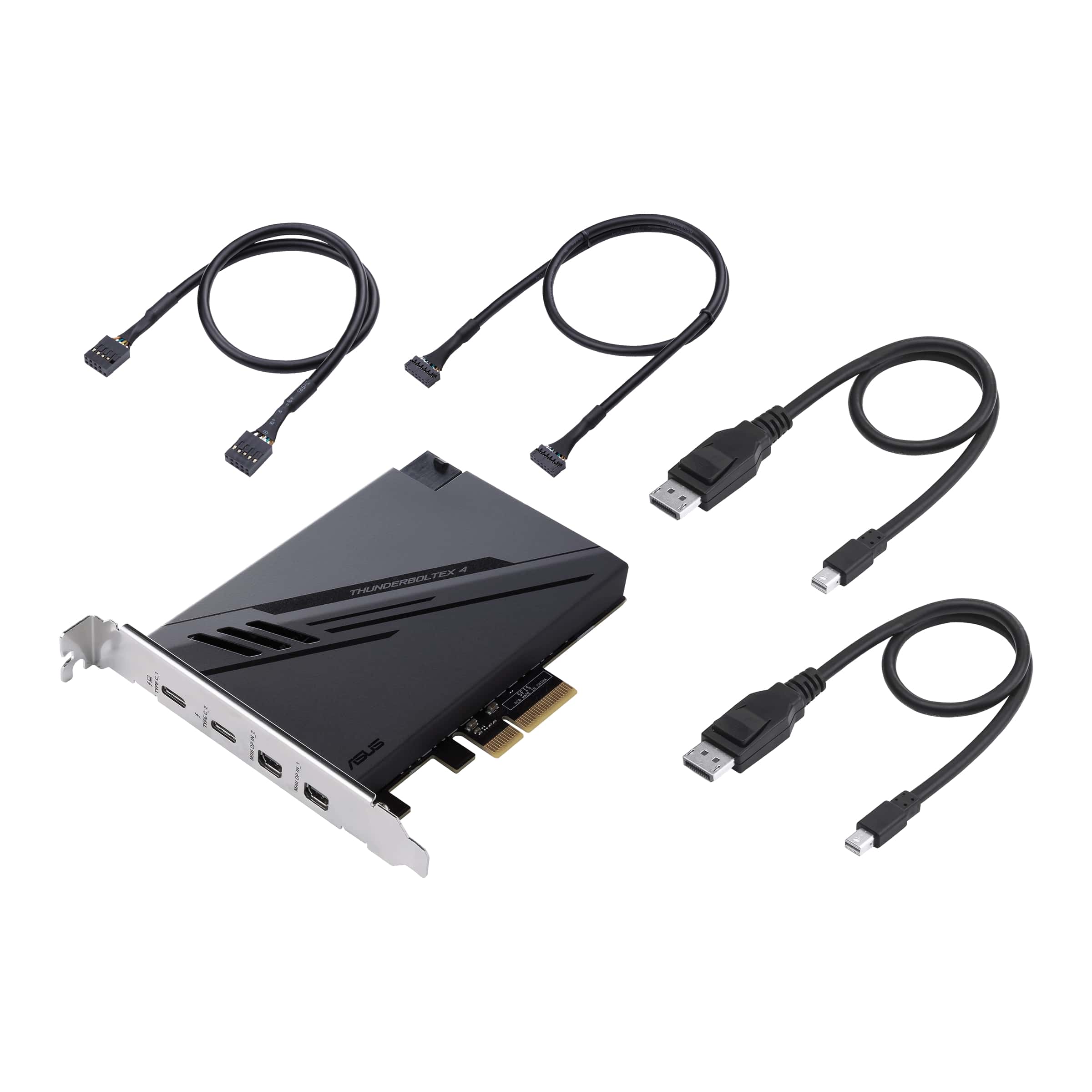

Accessories
2 x mini DisplayPort cables (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card)
1 x USB 2.0 cable
1 x 14-1 pin Thunderbolt header cable
1 x User manual
1 x Support DVD with Thunderbolt™ driver

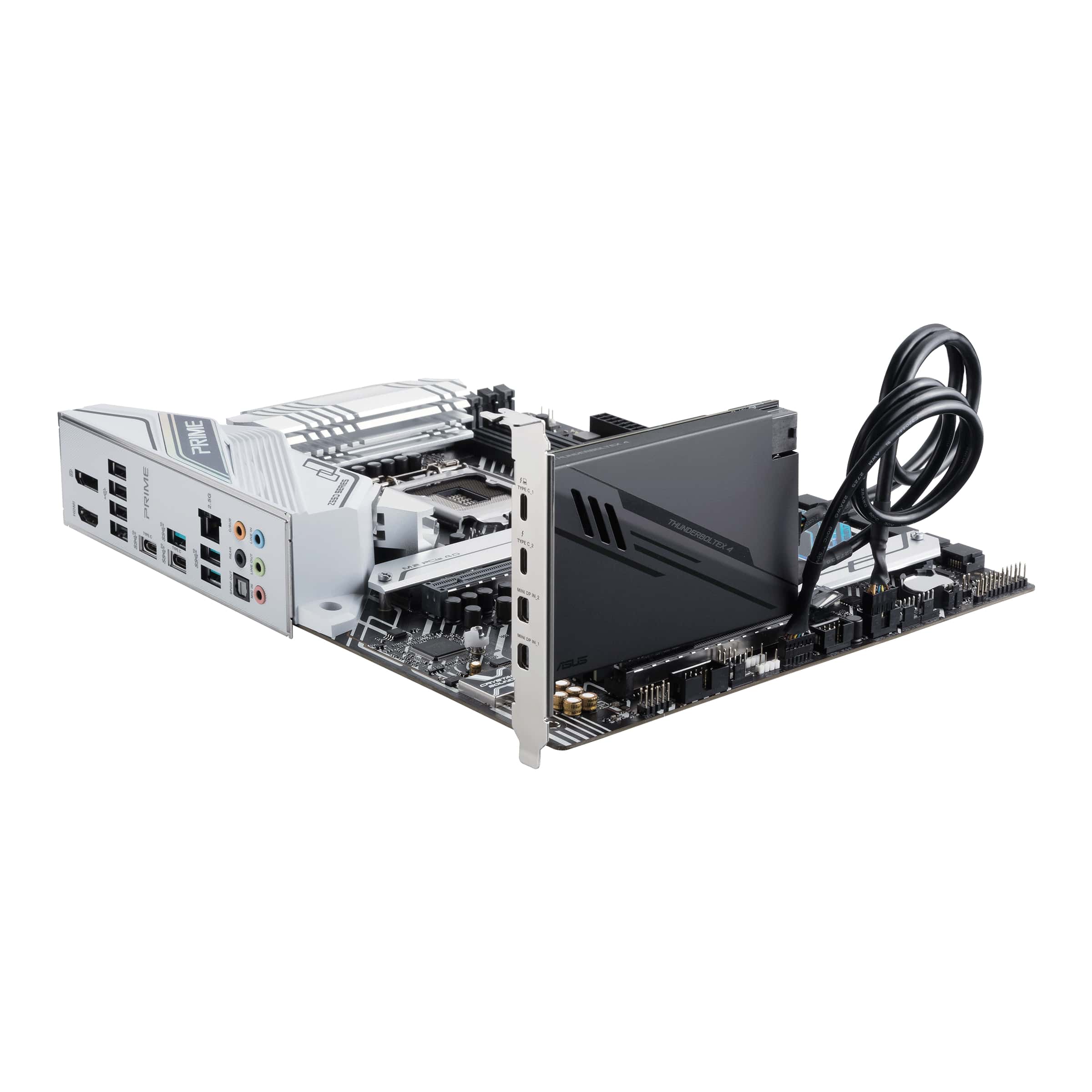

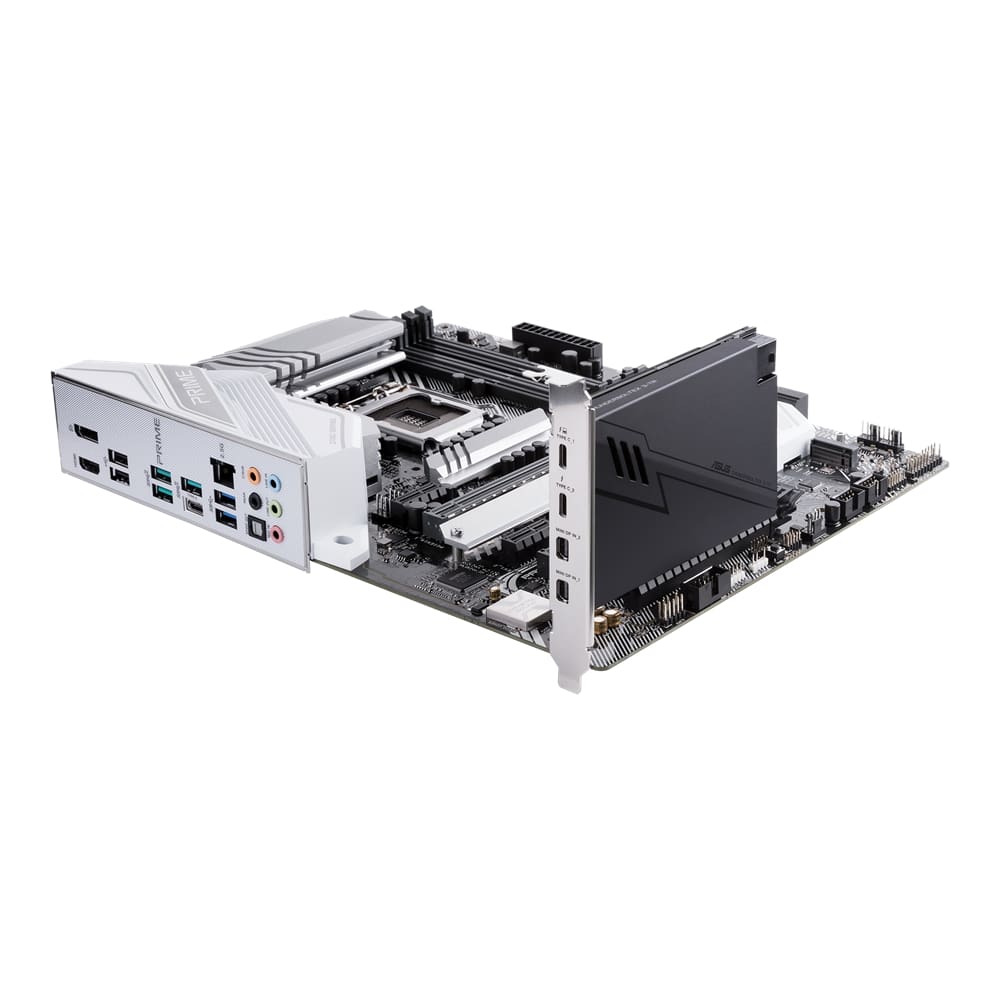

Compatible Models

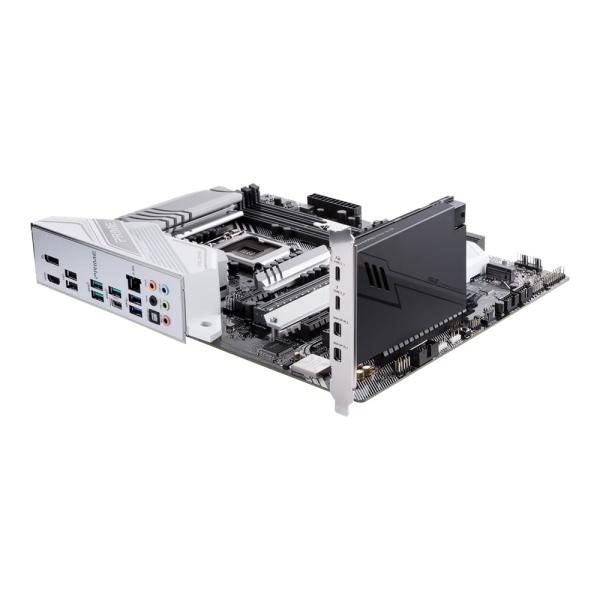

Please note that only ASUS Intel 500 series and later motherboards with a 14-1 pin Thunderbolt header can support ThunderboltEX 4 card.
*Refer to the following link for an up-to-date list of compatible models:
https://www.asus.com/Motherboards-Components/Motherboards/Accessories/ThunderboltEX-4/HelpDesk_Manual/
Operating System
Windows® 10 - 64 bit
Dimensions
4.6 inch x 7.1 inch (11.77 cm*18.05 cm)
Parametre
Rozměr xyz jedn. balení | 22.9x18.8x6.4 |
Počet kusů jedn. balení | 1 |
Rozměr xyz kartonu | 48x22x33 |
Hmotnost kartonu | 6.240 |
Typ balení kartonu | Balitelné |
Hmotnost jedn. balení | 0.566 |
Šířka jedn. balení | 22.9 |
Typ balení jedn. balení | Balitelné |
Počet kusů v kartonu | 10 |
Hloubka jedn. balení | 6.4 |
Výška jedn. balení | 18.8 |
Typ obalu kartón | Expedovatelné |
DisplayPort / miniDisplayPort | Ano |
ThunderBolt (interní) | Ano |
Počet pinů USB 2.0 (interní) | 1 |
Počet USB Typ C (externí) | 2 |
ThunderBolt (externí) | Ano |
