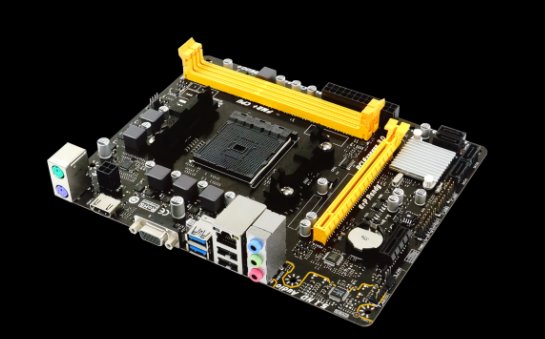

BIOSTAR Main Board A68MHE Soc FM2, DDR3, D-sub, HDMI

Výhody


Podpora procesorov AMD Socket FM2+ Athlon™/A-Series

Čipset AMD AMD A68H

Podpora 2-DIMM DDR3-2600(OC) až do maximálnej kapacity 32G

Podpora USB 3.2

Podpora HDMI

Podpora GbE LAN

Technológia AMD Dual Graphics



CPU SUPPORT

AMD FM2+ A-series APU
Maximum CPU TDP (Thermal Design Power) :
100Watt
* Please refer to www.biostar.com.tw for CPU
support list.





MEMORY

Support Dual Channel DDR3 800/ 1066/ 1333/
1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory
*Please refer to www.biostar.com.tw for Memory
support list.




INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

AMD Dual Graphics Technology



STORAGE

4 x SATA III Connectors (6Gb/s) : Supports AHCI &
RAID 0, 1, 10



LAN

Realtek RTL8111H - 10/100/1000Mb/s Controller





AUDIO CODEC
Realtek ALC662 6-Channel HD Audio



USB
2 x USB 3.2 Gen1 Port (5Gb/s) (2 on rear I/Os)

6 x USB 2.0 Port(2 on rear I/Os and 4 via internal

headers)



EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot

1 x PCI-E 2.0 x1 Slot




REAR I/O
1 x PS/2 Mouse

1 x PS/2 Keyboard

2 x USB 3.2 Gen1 (5Gb/s) Port

2 x USB 2.0 Port

1 x HDMI Connector

1 x VGA Port

1 x LAN Port

3 x Audio Jacks




INTERNAL I/O

2 x USB 2.0 Header(each header supports 2 USB
2.0 ports)

4 x SATA III Connector (6Gb/s)

1 x Front Audio Header

1 x Front Panel Header

1 x CPU Fan Connector

1 x System Fan Connector

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

1 x Clear CMOS Header



H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring



DIMENSION

Micro ATX Form Factor Dimension: 21.5 cm x 17
cm ( W x L )





OS SUPPORT

SSupports Windows XP/ 7/ 8/ 8.1(64bit)/ 10(64bit)
*Biostar reserves the right to add or remove
support for any OS with or without notice.



BUNDLE SOFTWARE
BullGuard




ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x User Manual
