COOLER MASTER V850 SFX Gold, modular

Full-modular 80 Plus Gold SFX Power Supply
V850 SFX Gold

• 80 Plus Gold Efficiency
• SFX Form Factor
• SFX-to-ATX Bracket
• 80 Plus Gold Certified

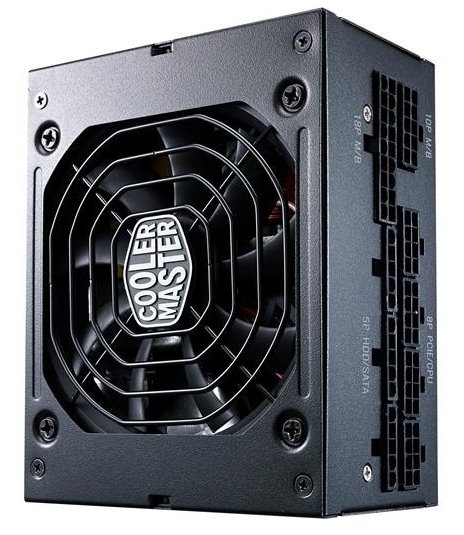

• Full-modular Cabling
• 10 Year Warranty

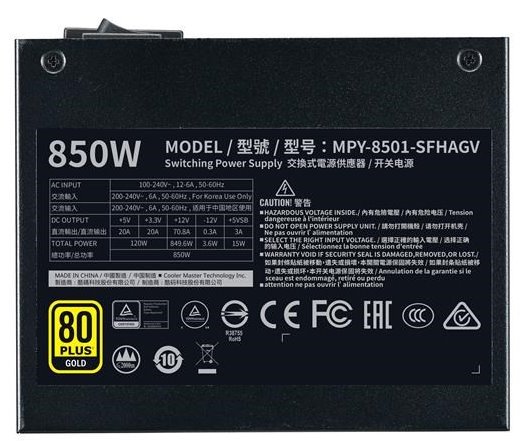

ModelMPY-8501-SFHAGV
ATX VersionSFX 12V Ver. 3.42
PFCActive PFC
Input Voltage100-240V
Input Current12-6A
Input Frequency50-60Hz
Dimensions (L x W x H)100 x 125 x 63.5 mm
Fan Size92mm
Fan BearingFDB
Efficiency90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ETA RatingGold
LAMBDA RatingStandard+
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 - 500 ms
Hold Up Time16ms
MTBF>100,000 Hours
ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
RegulatoryTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA
ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors8
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors4
80 Plus EfficiencyGold
SeriesV SFX Series
ModularFully Modular
CategoryAbove 750W
Form FactorSFX
Watts850W
