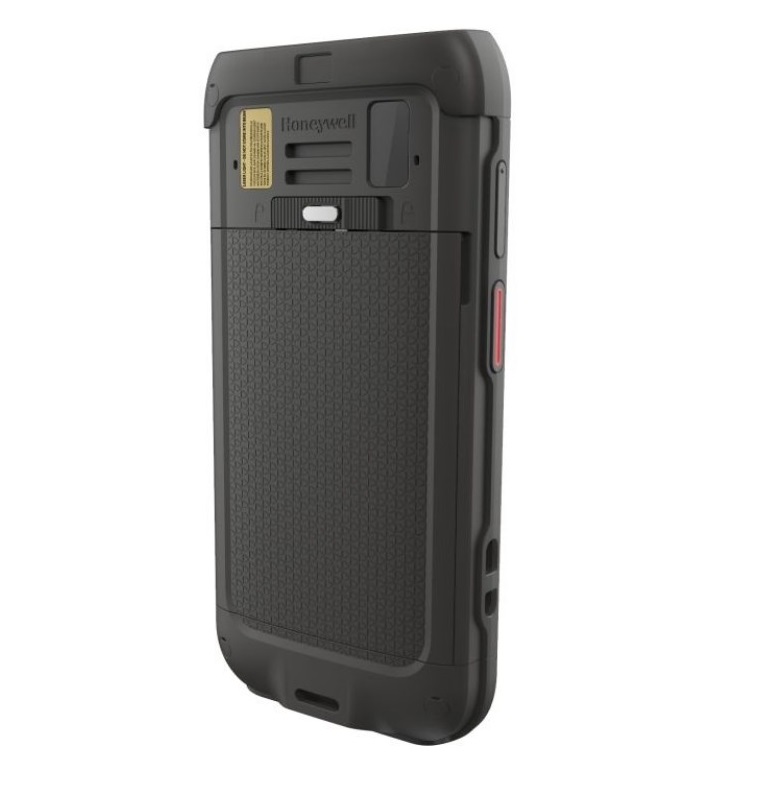

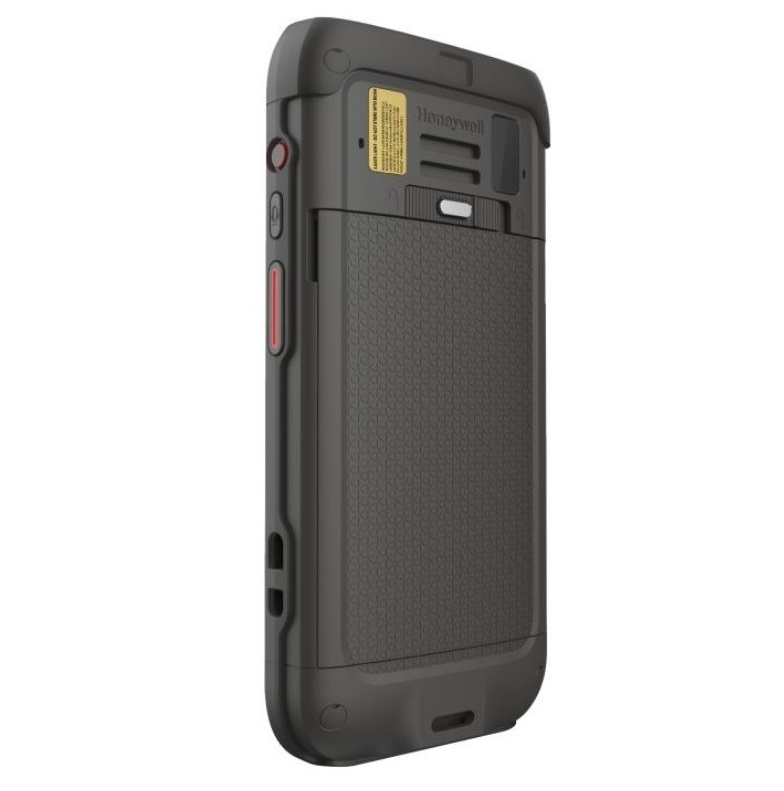

CT45 - WLAN, 4G/ 65G, IP68A65, BT, USB
| Kód tovaru: | 1056550 |
|---|---|
| Výrobca: | Honeywell |
| PN kód: | CT45-L0N-27D100G |
| EAN kód: | CT45-L0N-27D100G |
| Záruka: | 24 mesiacov |
| Dostupnosť: | nie je skladom |
| Očakávané naskladnenie: | na objednávku |
MECHANICAL
Dimensions: 163 mm x 79 mm x 19.2 mm
Weight: 282 g (9.9oz) with battery pack
Display Size: 12.7 cm (5.0 in)
Resolution: Full High Definition (1920 x1080) (CT45XP); High-Definition (1280 x720) (CT45)
Backlight: LED
Touch Panel: Rugged multi-touch capacitive touch panel, optically-bonded for extra durability. Glove, stylus and rain modes supported (CT45 XP). Water droplet rejection with screen protector mode. Covered with Gorilla Glass 5 for increased resistance to drops.
Hard Keys: Volume up/down key, left/right scan, power button, Push to Talk button.
Soft Key: On-screen scan button, reprogrammable into an application quicklaunch key.
Audio: 3.5 mm jack**, PTT, VoIP ready, speaker, HAC-compliant.
Three microphones with noise cancellation
I/O Ports: Durable, flat IO connector, USB Type C connector.
USB OTG supported via I/O ports
USB 3.0 is supported via USB Type C
Universal Dock Platform: Compatible
ENVIRONMENTAL
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Storage Temperature: -30°C to +70°C (-22°F to +158°F)
Humidity: 5% to 95% (non-condensing)
Drop: Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
Tumble: Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification
ESD: ±8 kV direct; ±15 kV air
Environmental Sealing: Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion
Thermal Shock: -30°C to +70°C
SYSTEM ARCHITECTURE
Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Operating System: Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
Memory: 6 GB DDR4x RAM, 64 GB UFS
Flash (CT45XP); 4 GB DDR4x RAM, 64 GB UFS Flash (CT45)
Camera: 13-megapixel rear camera; 8-megapixel front-facing camera.
Sensors: Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, barometer (Model dependent), eCompass (Model dependent), hall sensor, high gravity sensor
SIM:
*CT45 XP: Available with configurations of eSIM and Nano SIM or configurations of 2 Nano SIMs
*CT45: Available with configurations of 2 Nano SIMs
Storage Expansion: User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Battery: Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools
Battery warm swap: Available on CT45 XP
Charging: Quick Charge 3.0 compliant; Less than 3 hours to be fully charged.
Hours of Operation: 12+ hours
Decode Capabilities: Honeywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android
Application Software: Honeywell Mobility Edge Utilities and Demos
WARRANTY
One-year factory warranty
WIRELESS CONNECTIVITY
WWAN: WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)
AT&T FirstNet Compliant
LTE Advanced Support
Up to 390 Mbps CAT13 LTE downlink
Up to 75 Mbps CAT5 LTE uplink
LTE – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71
UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM: 850, 900, 1800, 1900 (Quad Bands)
WLAN: Wi-Fi certified
CT45 XP WLAN: IEEE 802.11 a/b/g/n/ac/ ax and 2*2 MU-MIMO
All other configurations: IEEE 802.11 a/b/g/n/ac
All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc
WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant (except CT45XP WLAN)
Bluetooth®: V5.1 Bluetooth and BLE
2nd BLE: Available on CT45 XP
Bluetooth Profiles: HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
NFC: Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
VPN: IPSec V4/L2TP, PPTP
Push to Talk (PTT): Supported
GPS Supported Protocols: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS
* Specifications are subject to change without notice.
* 3.5mm jack is available on Wi-Fi version only.
CT45 - WLAN, 4G/ 65G, IP68A65, BT, USB
Príslušenstvo

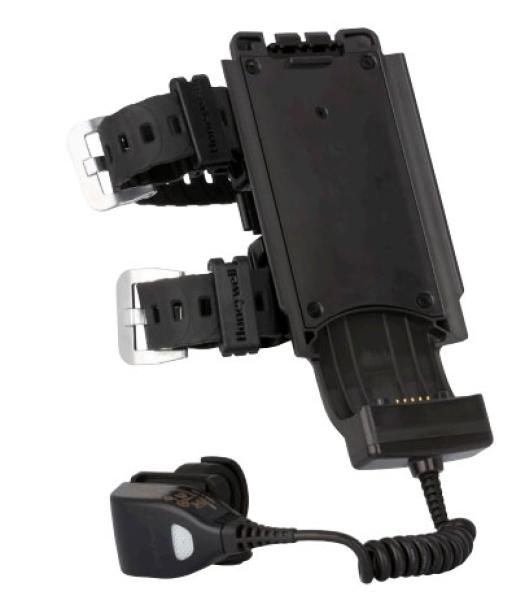

CT40 WEARABLE SET, vrátane CT40 Holder, tethered ring scanner and arm band
CT40 WEARABLE SET, including CT40 Holder, tethered ring scanner and arm band. Need to order separately protective boot- CT40-PB-00
skladom (20)
CT40 booted charger 4 bay charger.Kit includes 4 bay charger, power supply, EU power cord.
Honeywell CT40 booted charger 4 bay charger. Sada obsahuje nabíječku se 4 pozicemi, napájecí zdroj a napájecí kabel EU.
skladom (2)
Cigarette Lighter Power Adapter Cable
Cigarette lighter power adapter, 1,8 m Kompatibilita: Dolphin CN80 Mobile Computer / Honeywell CT40HC Mobile
nie je skladom
Parametre
| Rozměr xyz jedn. balení | 19.5x18.8x6 |
| Počet kusů jedn. balení | 1 |
| Typ balení jedn. balení | Balitelné |
| Výška jedn. balení | 18.8 |
| Hmotnost jedn. balení | 0.514 |
| Šířka jedn. balení | 19.5 |
| Hloubka jedn. balení | 6 |
| Typ | Terminál |
| Snímač | 2D |
| Připojení | Wi-Fi |
| RFID | Ano |
| Prostředí | Mobilní |
| Použití | Ruční |
| Odolnost | Odolná |
| Operační systém | Android |
