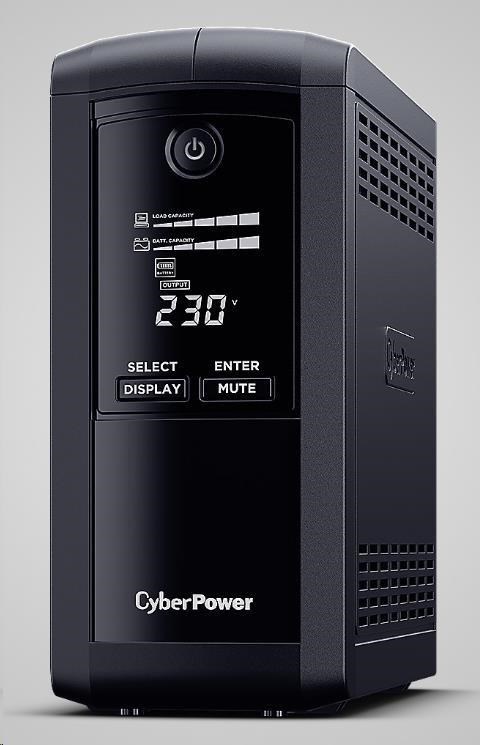

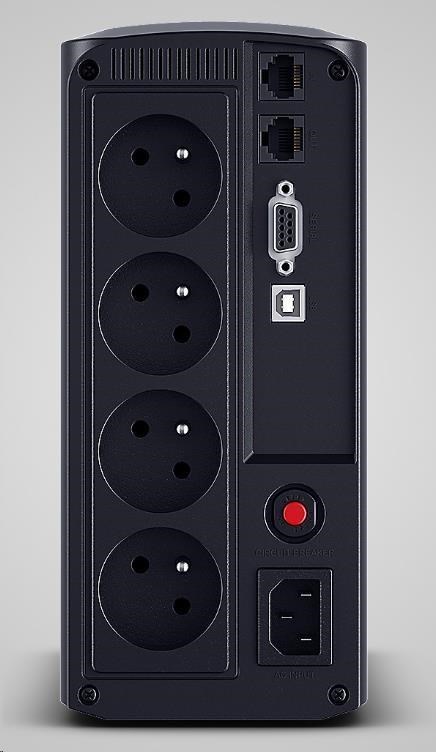

CyberPower Value Pro VP1000ELCD-FR 1000VA - 550W FR x 4 Tower

General
Phase
Single Phase
Form Factor
Tower
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
Input
Nominal Input Voltage ( Vac )
230 ± 10%
Input Voltage Range ( Vac )
167 ~ 295
Input Frequency ( Hz )
50 ± 5
60 ± 5
Rated Input Current ( A )
4.35
Input Connector Type
IEC C14
Detachable Power Cord Plug Type
Schuko x 1
Power Cord Length (ft.)
5
Power Cord Length (m.)
1.5
Output
Capacity (VA)
1000
Capacity (Watts)
550
On Battery Waveform
Simulated Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 10%
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection
Circuit Breaker
Outlet(s) - Total
4
Outlet Type
FR x 4
Outlet(s) - Battery & Surge Protected
4
Typical Transfer Time ( ms )
4
Battery
Runtime at Half Load ( min )
9
Runtime at Full Load ( min )
1
Typical Recharge Time ( Hours )
8
Start On Battery
Yes
User-replaceable
No
Battery Type
Sealed Lead-acid
Surge Protection & Filtering
Surge Suppression ( Joules )
450
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out
Management & Communications
LCD Panel
Yes
LCD Information Display
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information
LCD Setting & Control
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning
LED Indicators
Power On
HID Compliant USB Port(s)
1
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
USB Cable x1
Ethernet Data Transmission Speed
Up to 1Gb
Power Management Software
PowerPanel® Personal (Recommended)
Physical
Enclosure Construction
Plastic
Color
Black
Physical Size - UPS Module
Dimensions (WxHxD) (in.)
3.9 x 8.9 x 10.2
Dimensions (WxHxD) (mm.)
100 x 227 x 260
Weight (lbs.)
13.73
Weight (kg.)
6.23
Environmental
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 90
Operating Elevation ( feet/meters )
0-10,000 feet (0-3,048 meters)
Storage Temperature (°F)
-4 ~ 122
Storage Temperature (°C)
-20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 90
Storage Elevation ( feet/meters )
0-10,000 feet (0-3,048 meters)
Online Thermal Dissipation ( BTU/hr )
23.9
Audible Noise at 1.0M from Surface of Unit ( dBA )
40
Certifications
Certifications
CE, EAC
RoHS
Yes

kompletni CZ manual. Podrobny popis nastaveni všech funkci:

https://www.cyberpower.com/eu/cs/product/series/value_pro#downloads
