D-Link DPE-301GI 1-port Gigabit 30W PoE+ Injector

OVERVIEW

*The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.
*The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet.
*D-Link"s DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance.
*Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.

TECHNICAL SPECS

Ports

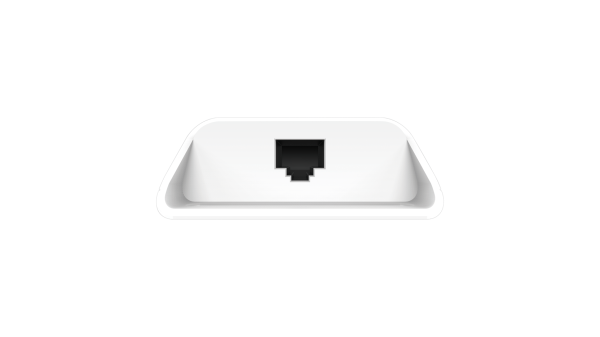

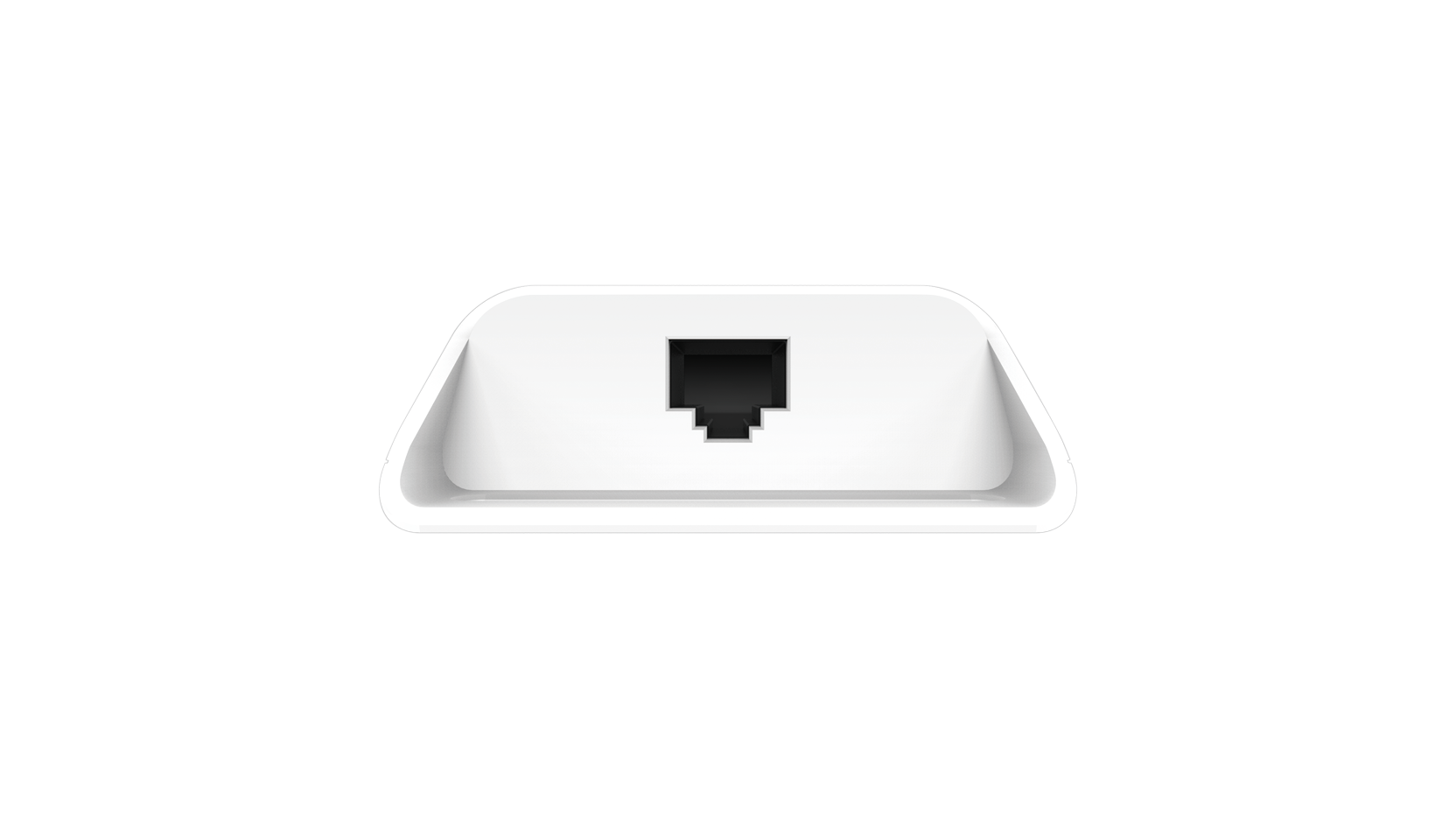

PoE + Data Port (out)
*Supports half/full-duplex operation
*10/100/1000BASE-T port
*IEEE 802.3 compliant
*IEEE 802.3u compliant
*IEEE 802.3at compliant
*IEEE 802.3af compliant
*IEEE 802.3ab compliant

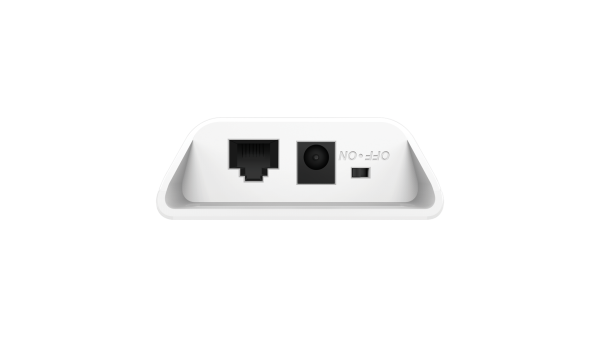

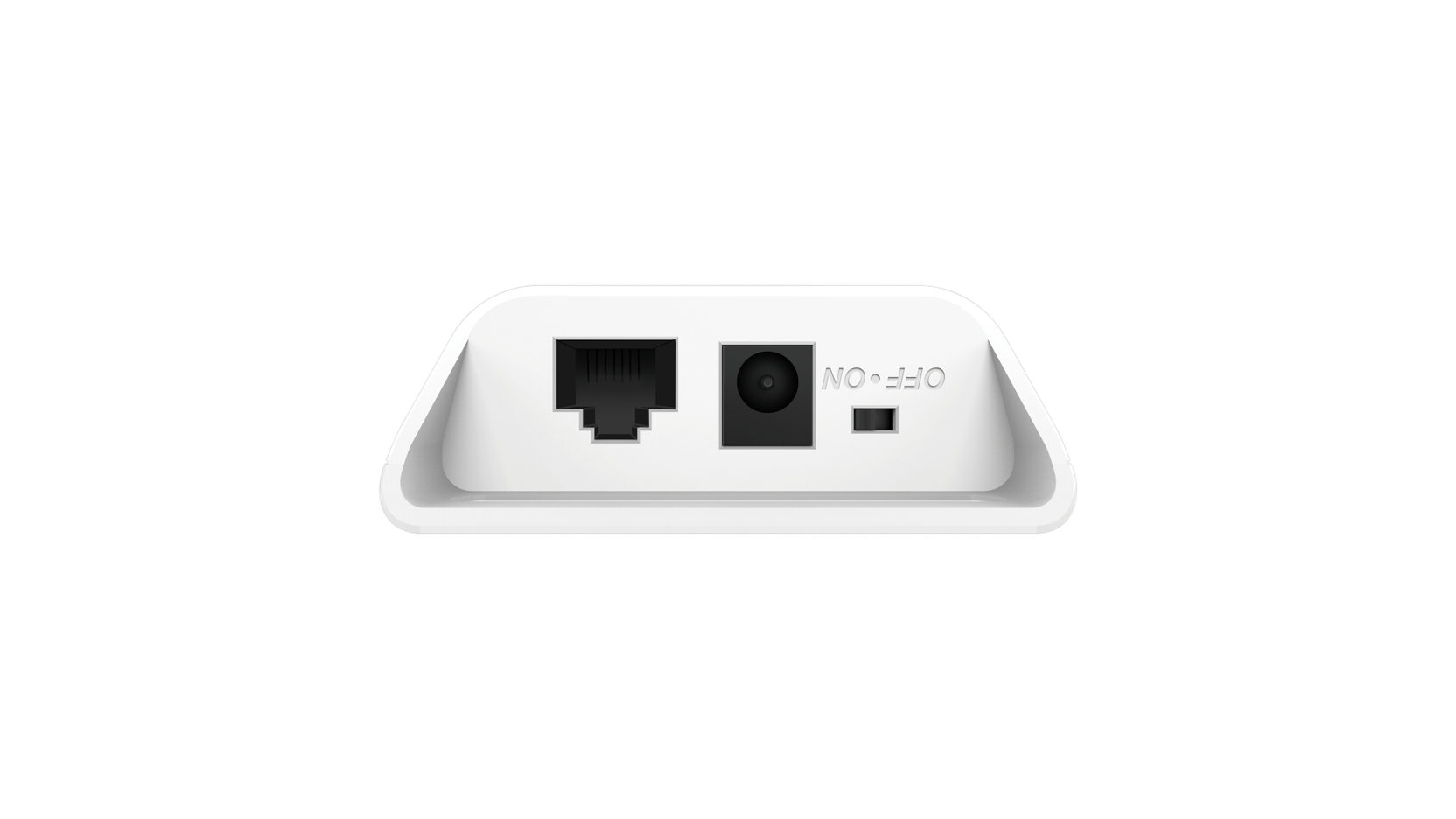

Data Port (in)
*Supports half/full-duplex operation
*IEEE 802.3 compliant
*IEEE 802.3u compliant
*IEEE 802.3ab compliant
*10/100/1000BASE-T port

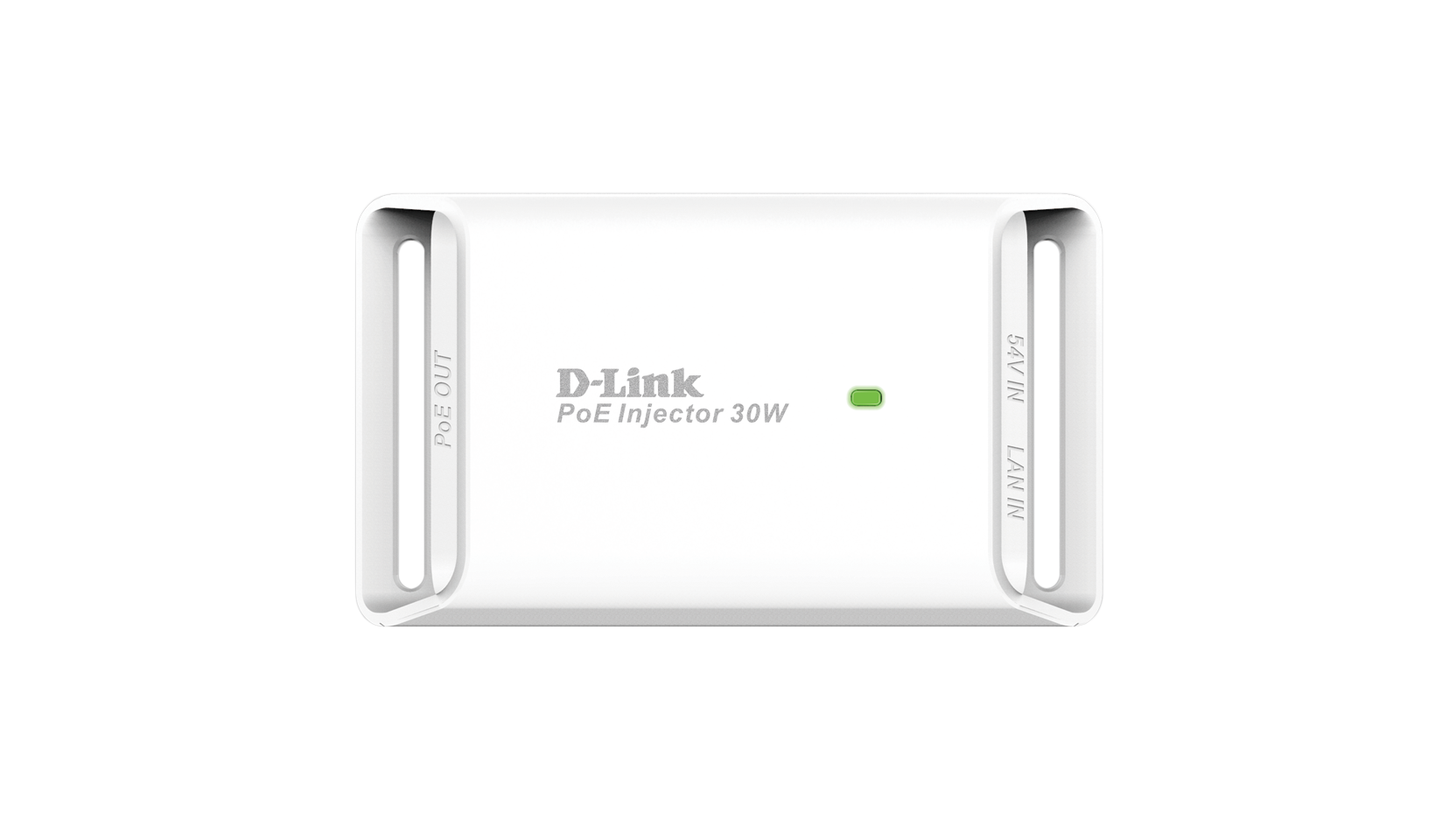

LED Indicators
*Blue: Power On
*Green: Link On
Physical
Dimensions (L x W x H)
*109.8 x 62.2 x 24.5 mm
Weight
*65 grams
Power
*Power Adapter: 55 V / 0.6 A
*Max Consumption: 32.4 watts
*Output: 0.6 A at 55 V
Temperature
*Operating: -10 to 50 °C
*Storage: -30 to 70 °C
Humidity
*Operating: 5% to 95% non-condensing
*Storage: 5% to 95% non-condensing
Certifications
*CE
*FCC
*VCCI
*RCM
*RoHS
*BSMI
