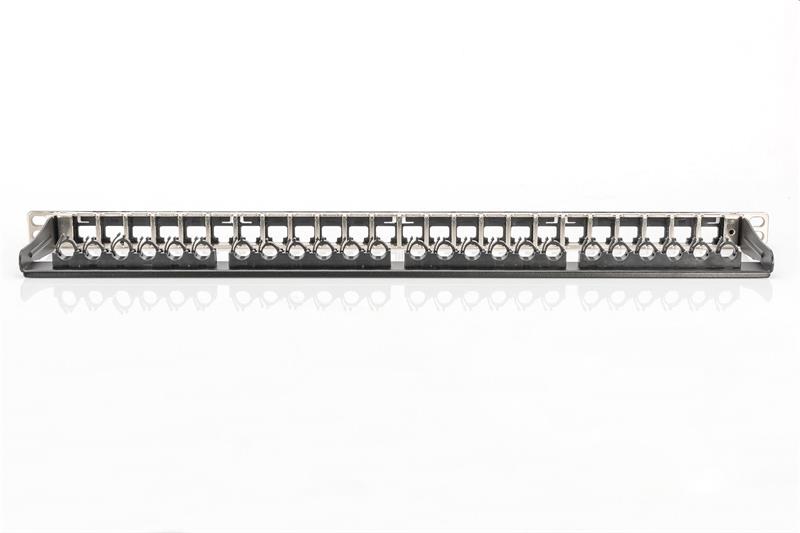

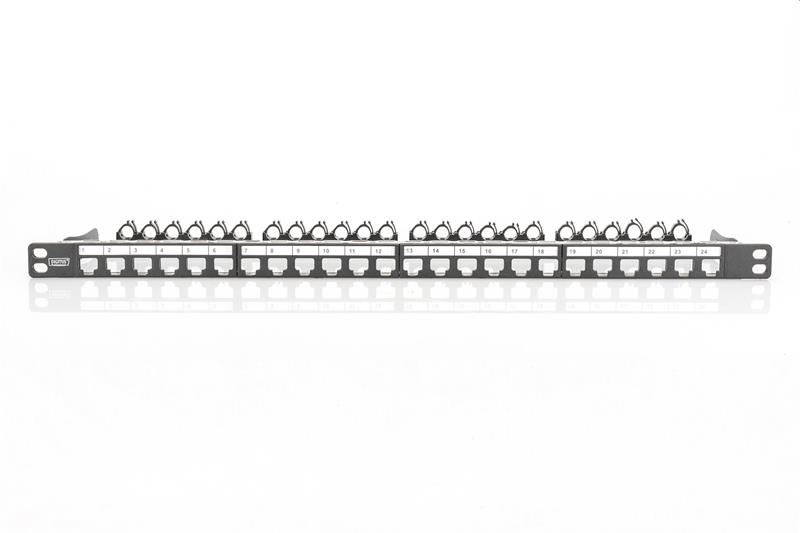

DIGITUS 19" modulárny patch panel 24port 0,5U vhodný pre UTP i STP keystony, čierny RAL9005
| Kód tovaru: | 2678844 |
|---|---|
| Výrobca: | Digitus |
| PN kód: | DN-91422 |
| EAN kód: | 4016032343295 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | nie je skladom |
Modular Patch Panel, shielded, 24-port label field, 0.5U, rack mount, black RAL 9005
TECHNICAL DETAILS
Layout Keystone Entry: Double-row
Area of application: 483 mm (19") cabinet
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
Suitable for shielded Digitus® Keystone Modules and Couplers
Central ground connection
Plastic label field
Technical properties:
Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
Grounding bar material: Galvanized steel
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Colour: Black RAL9005
Color: black, RAL 9005
Ports: 24
Units: 0,5
