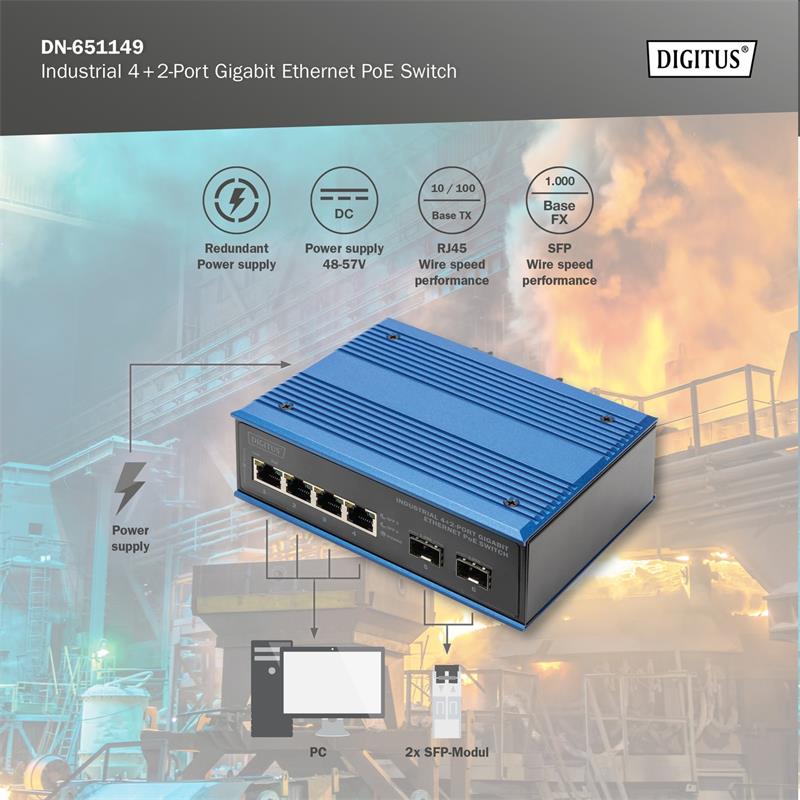

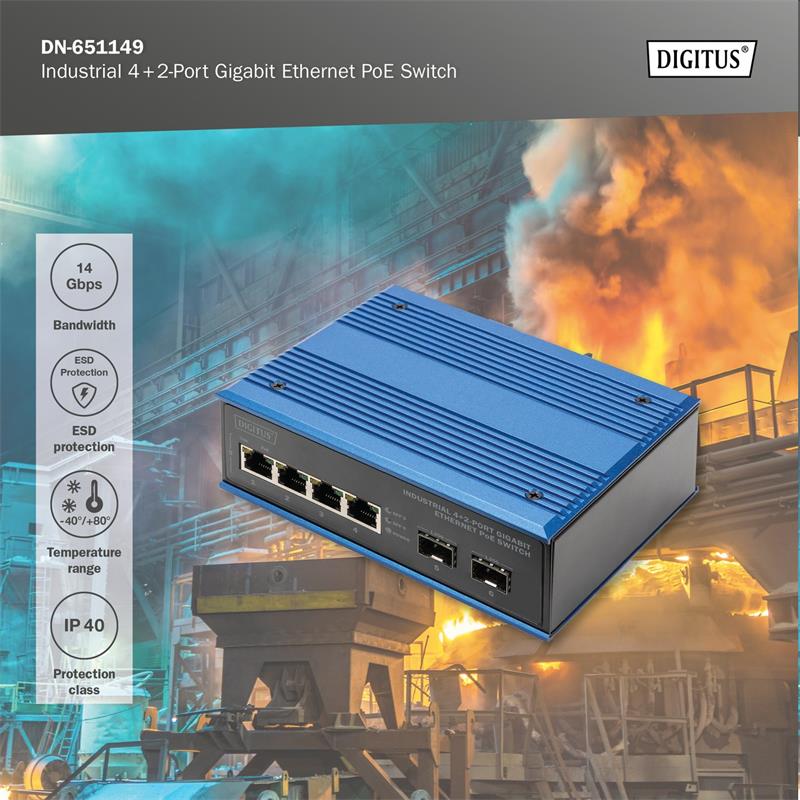

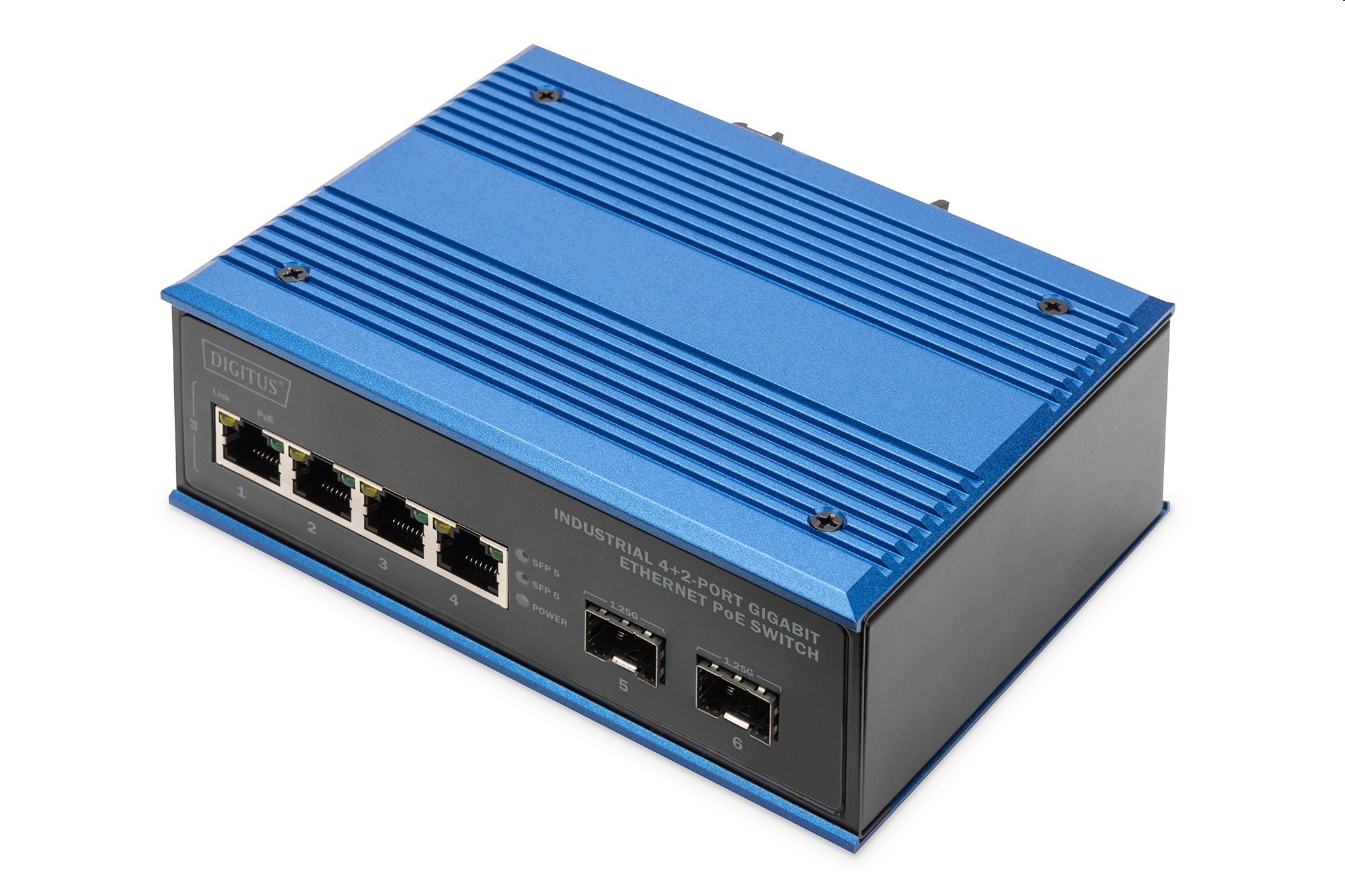

DIGITUS Industrial 4+2-Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45, 2 GE SFP Port

Industrial 4+2-Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45, 2 GE SFP Port

4 x PoE 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C.

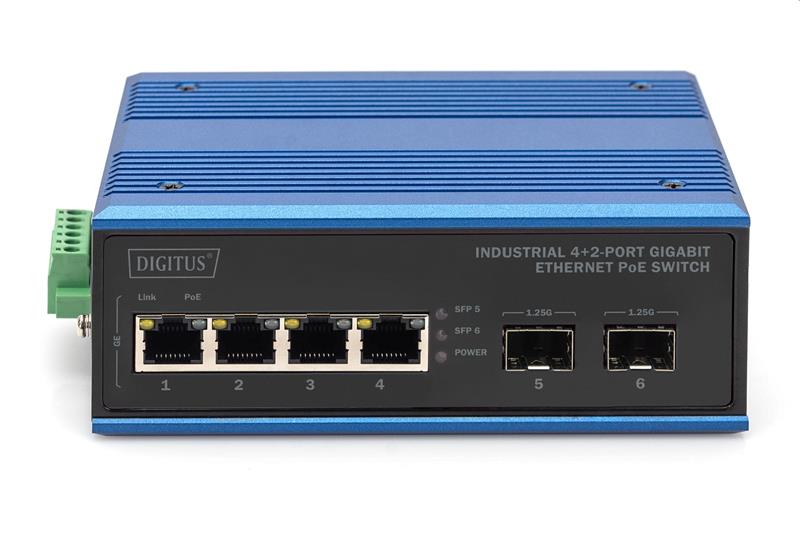

Number of network connections: 4 GE ports, 2 SFP GE ports
Transmission speed of the RJ45 network ports: 4 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)
Redundant power supply 48-57 V (DC)
Metal housing to IP40 standard
Simple mounting on a top-hat rail
Operating temperature from - 40° up to 80° C
Simple plug & play installation
ESD & EFT protection up to 6 kV (DC)
Ideal for connecting camera systems

The DN-651149 is a robust 4+2 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 4x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 2x 1000 Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C.

Technical details
Supports IEEE802.3x flow control, and backpressure
Supports store-and-forward technology for optimized data transmission
Automatic speed and half/full duplex detection/adjustment
4 port PoE with up to 30 W
Bandwidth: 14 Gbps
Packet buffer: 1.2 Mbit
Packet forwarding size: 10.5 Mbps
Size of the MAC address table: 2K
Jumbo frame rate: 9000 byte
ESD protection: 6 kV (DC)
EFT protection: 6 kV (DC)
Metal housing, IP40
4 kV lightning protection and surge protection

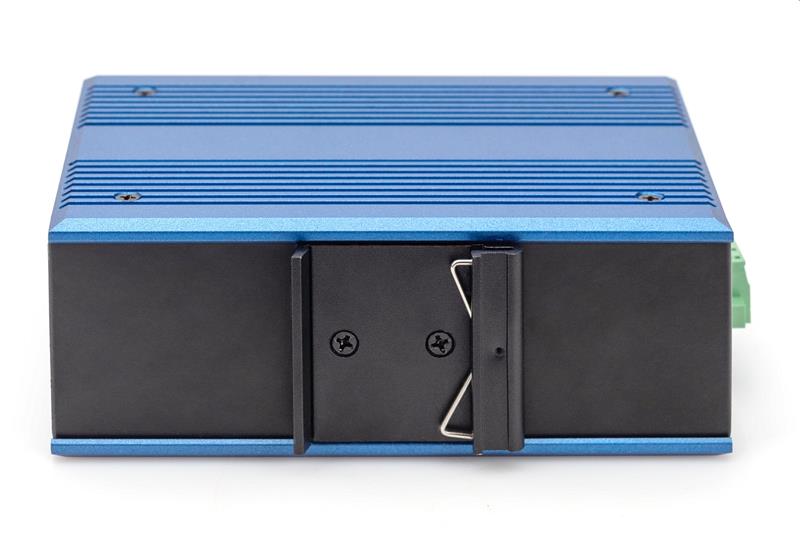

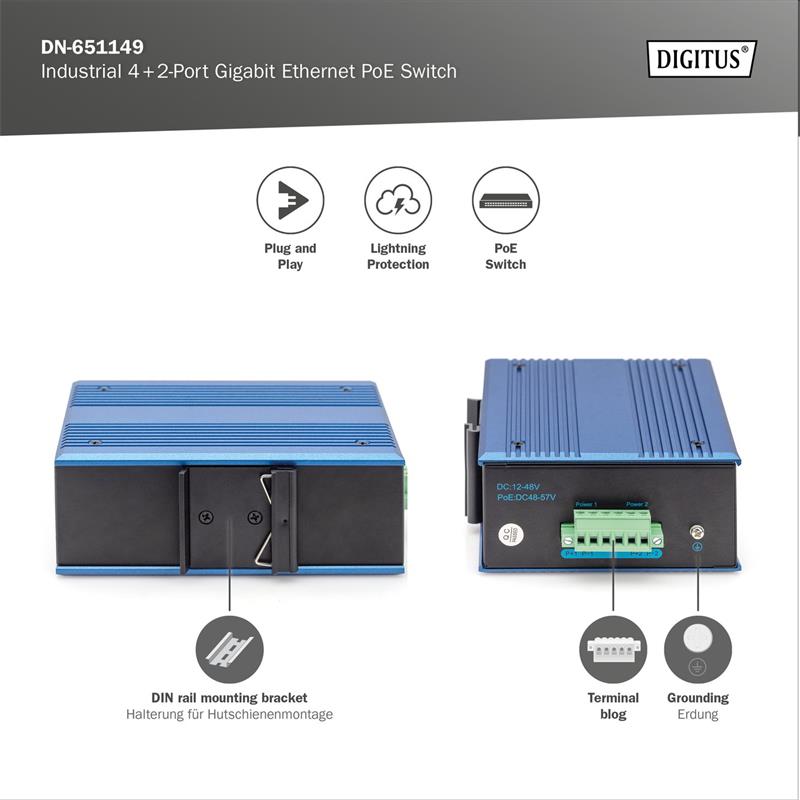

Suitable for mounting on DIN rail (top-hat rail)

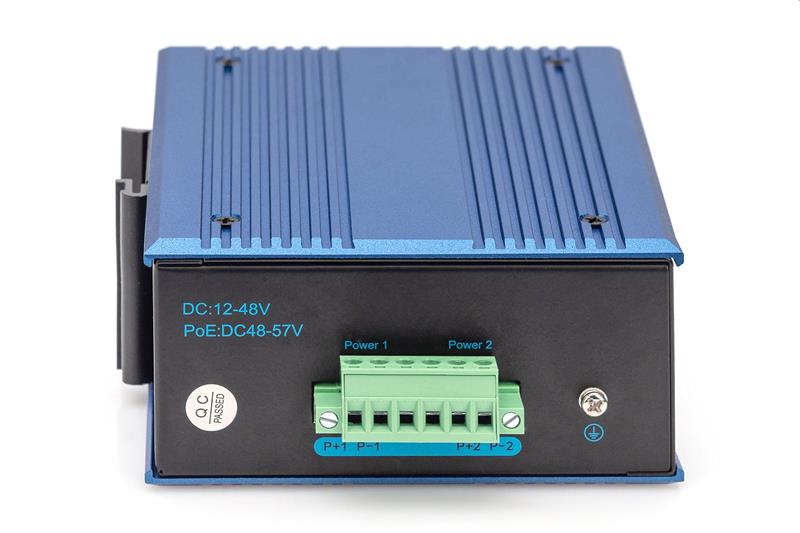

Redundant power supply with reverse polarity protection function
Power supply: 48 to 57 V
Power consumption: <5 W
V-LAN: no
Removable terminal connection
Protection class: IP40
Dimensions: 142.5 x 107.1 x 53.5 mm
Weight: 0.54 kg
Operating temperature: -40 to 80 ° C
Number of ports: 4
PoE Power budget: 100 W
PoE standard: IEEE802.3af (PoE)
Ethernet speed: Gigabit
Industrial usage: yes
Managed: no
Number of ports (Uplink): 2
Outdoorsuitable: no
PoE (Power over Ethernet): yes
Protection against vanadlism: no
Uplink port connection: RJ45/SFP
VLAN: no

1x Industrial Gigabit Ethernet PoE Switch
1x user manual
