DIGITUS Keystone Cat6A, tieneny STP, tool free, cable management, metal.snapIN, strieborný, 24pack

CAT 6A Keystone Jack, STP, tool free, dust cover smart cable manager, metal snap-in, set 24 pcs.

Multi-design, shielded, tool free, with metal locking lever and intelligent cable manager

The cat. 6A keystone module with 360 ° shielding supports transmission speeds of up to 10 GBit/s & 500 MHz in connection with cat. 6A or higher network installation cables
Cable attachment using resealable quick locks makes it possible to reopen and therefore use the keystone module multiple times, for example with field applications
In connection with a modular patch panel and modular network junction boxes, the cat. 6A keystone modules are perfect for modern, structured building cabling
The mounting connection of the keystone module in category 6A / class EA makes tool-free installation possible for network cables with conductor cross-sections between AWG 26/7 and 22/1

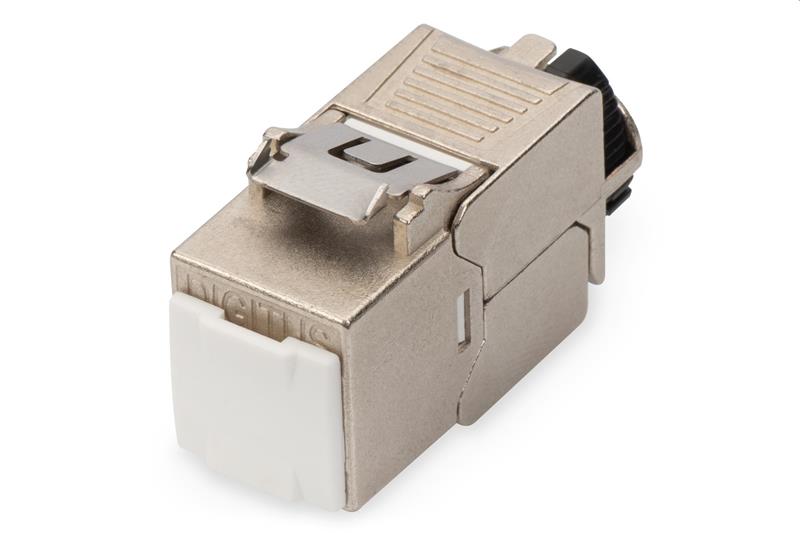

Keystone jack with RJ45 jack is GHMT certified - sturdy metal locking lever on the top - design compatible with standard network sockets - LSA rails color-coded in accordance with EIA/TIA 568 A&B

DESCRIPTION

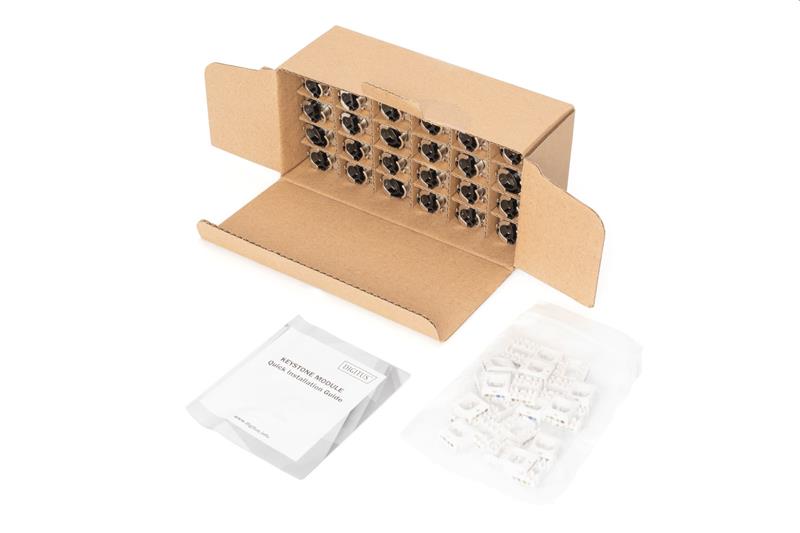

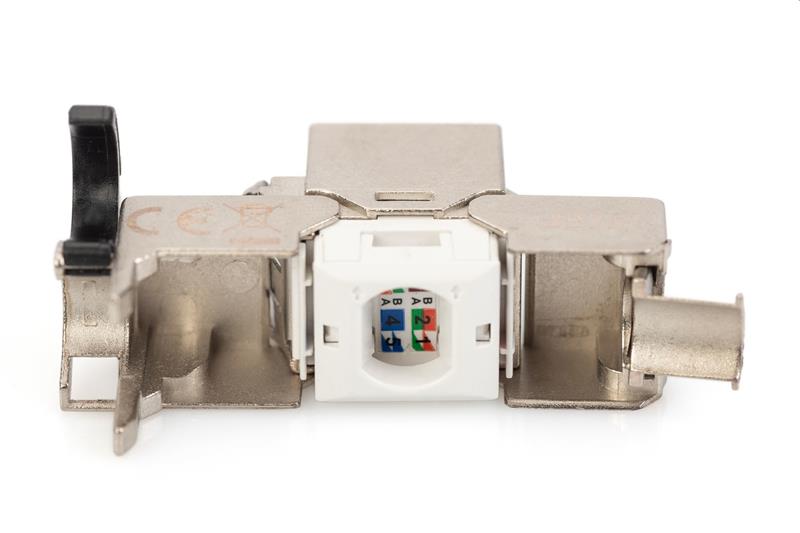

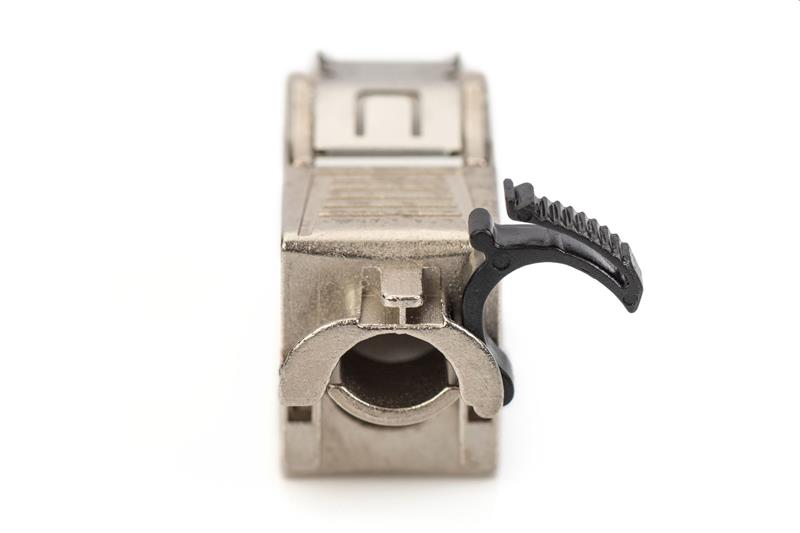

The shielded cat. 6A keystone module set DN-93619-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have a 360° shield contact, a metal locking lever and a resealable, intelligent cable manager for cable grip and cable fixation. The compact design makes series installation of 24 pieces possible in a 483 mm (19”) 1U panel. Tool-free installation uses LSA rails color-coded in accordance with EIA/TIA 568 A&B. Its compact design also means that the module fits in design-compatible modular junction boxes.

TECHNICAL DETAILS
Category 6A 10G Base-T, 500 MHz
ISO/IEC 11801 3rd edition, EN 50173-1
Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
Suitable for distribution panel and junction box mounting
RJ45 jack, 8P8C
Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B

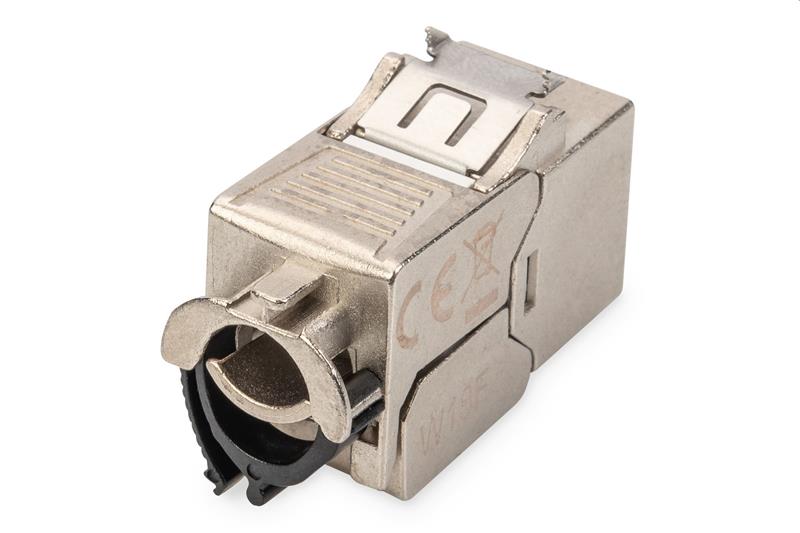

Cable grip and cable fixation using intelligent cable manager
Tool-free mounting connection
360° shield contact
Case material: Zinc die-cast – nickel-plated
Contact material: Phosphor bronze
Contact coating: Nickel, gold-plated 0.5 µ
Insertion force: Max. 30N (as per IEC 60603-7-51)
Holding force: 7.7 kg between jack and plug
Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-51)
Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
Tested with AWG 22/1 solid installation cable
(DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
Intelligent cable manager (resealable)
Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
Weight: 19.5 g
