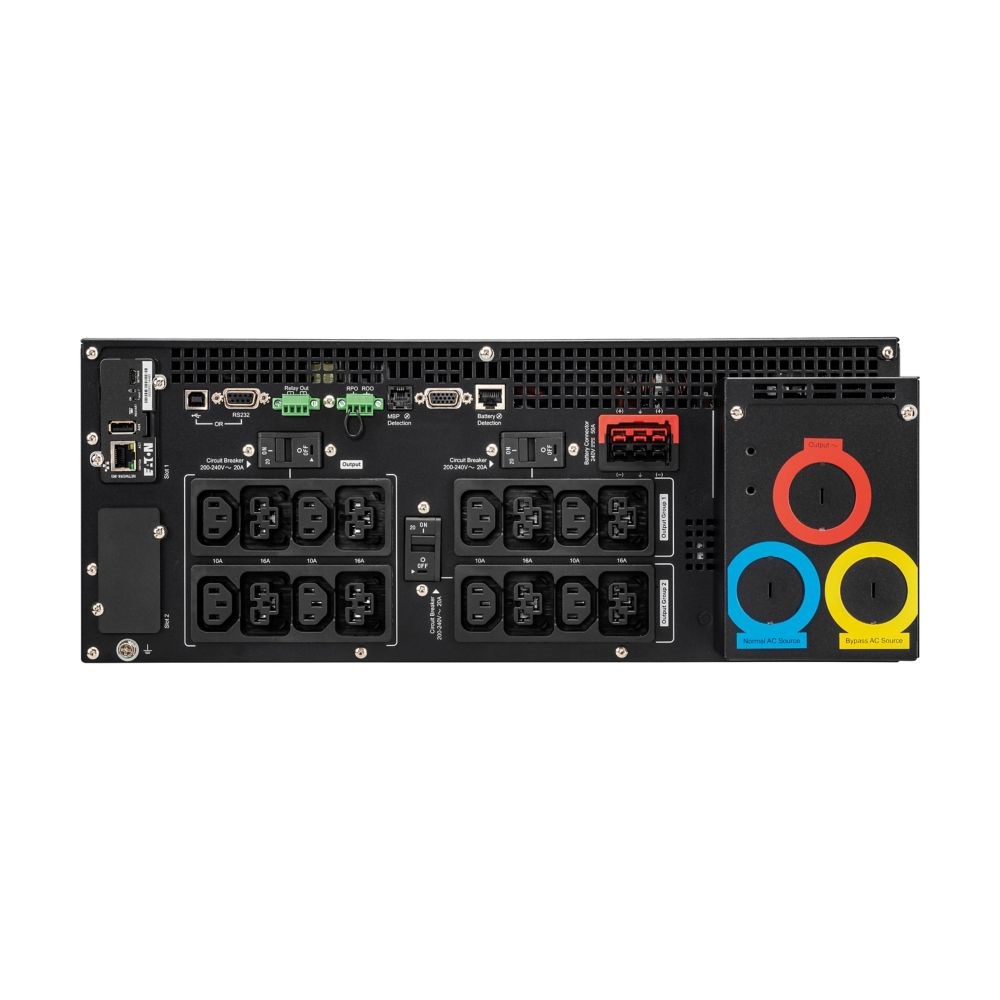

Eaton UPS 1 1fáze, 11kVA- 9PX 11000i RT4U HS NP G2
| Kód tovaru: | 2638261 |
|---|---|
| Výrobca: | Eaton |
| PN kód: | 9PX11KIRTNBPG2 |
| EAN kód: | 3553340710629 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | nie je skladom |
| Očakávané naskladnenie: | nie je známe |
7716,16€
6273,30€ bez DPH
General specifications
| Product Name |
Eaton 9PX Gen2 UPS
|
| Catalog Number |
9PX11KIRTNBPG2
|
| EAN |
3553340710629
|
| Product Length/Depth |
725 mm
|
| Product Height |
174 mm
|
| Product Width |
440 mm
|
| Product Weight |
83.4 kg
|
| Warranty |
3 year on electronics, 2 year on battery
|
| Compliances |
LVD Directive (CB)
EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive |
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM |
| Model Code |
Eaton 9PX 11000i RT4U HotSwap Netpack G2
|
Baterie
| Battery type |
Sealed, lead-acid
|
| Runtime graph | |
| Battery quantity |
20
|
| Battery management |
|
| Battery rating |
12 V / 9 Ah
|
| Extended battery capability |
Yes
|
Výstup
| Receptacle |
(8) C13, (8) C39, Hardwired
|
| Voltage |
230V
|
| VA rating |
11 kVA
|
| Wattage |
11 kW
|
| Output power factor |
1
|
| Output voltage range |
200/208/220/230/240 V +/- 1%
|
| Output waveform |
Sine wave
|
| Output nominal voltage |
230V default (200/208/220/230/240V)
|
| Voltage distortion output (linear load) - max |
1
|
| Feed type |
1
|
| Topology |
Online/Double-conversion
|
Vstup
| Nominal frequency |
50/60 Hz
|
| Input power factor |
>.99
|
| Input voltage range |
176-276 V (100-276 V with derating)
|
| Input frequency range |
40-70 Hz
|
Novinky a informační sdělení
| Includes network card |
Yes
|
| Communication |
|
| Ethernet interface |
Yes
|
| User interface |
Multilingual graphical LCD display
|
| Potential free switch contact |
Yes
|
| Expansion slots |
2 slots, network card included
|
| Software compatibility |
Eaton Brlightlayer Software suite
|
| Type of interface |
Other
|
Prostředí
| Altitude |
3000 m
|
| Noise level |
<37 dB at 1 meter
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Relative humidity |
0-95% non-condensing
|
Další specifikace
| Construction type |
482.6 mm (19 inch) device
|
| Package contents |
|
| Internal bypass |
Yes
|
| Auto shutdown function |
Yes
|
| Color |
Black/silver
|
| Efficiency at max. load |
97
|
| Rack mounting kit |
Yes
|
| Hot swap power |
Yes
|
Parametre
| Typ balení jedn. balení | ??? |
| Počet kusů jedn. balení | 1 |
| Konektor USB | Ano |
| Konektor RS-232 (sériový port) | Ano |
| Výstupní výkon (VA) | nad 10 000 |
| Výstupní výkon (W) | nad 10 000 |
| Typologie | On-line |
| Typ umístění | Tower/Rack |
| Záruka | 3 roky zařízení, 2 roky baterie |
| Hmotnost přesná (kg) | 83,4 |
| Počet výstupních zásuvek C13 | 8 |
| Počet výstupních zásuvek C19 | 8 |
| Rozměry VxŠxH (cm) | 17,4x44x72,5 |
| Počet výstupních zásuvek C39 | 8 |
