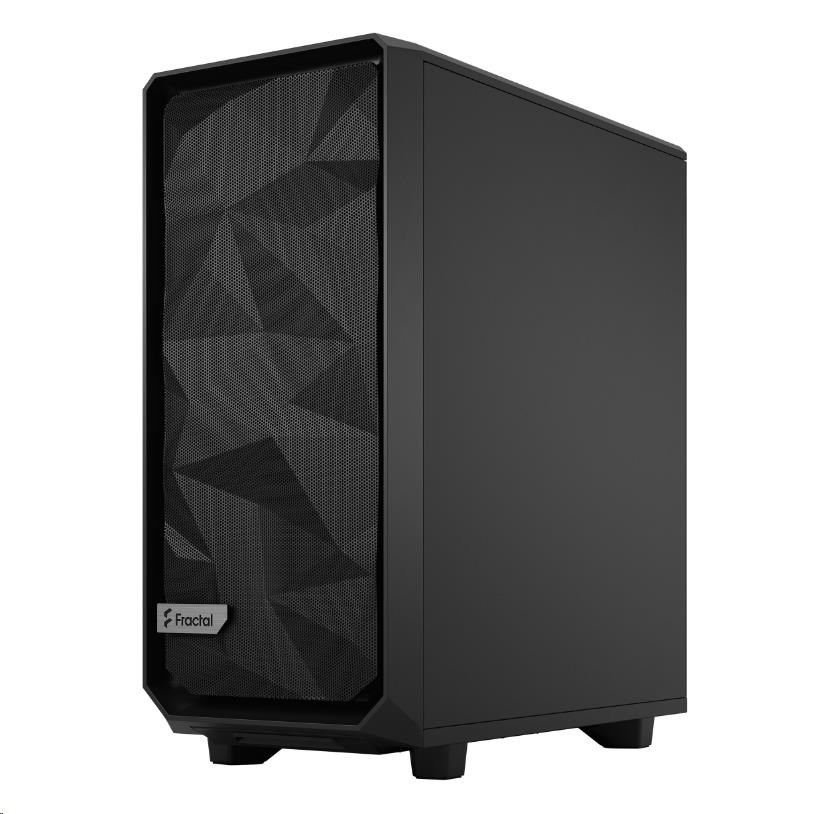

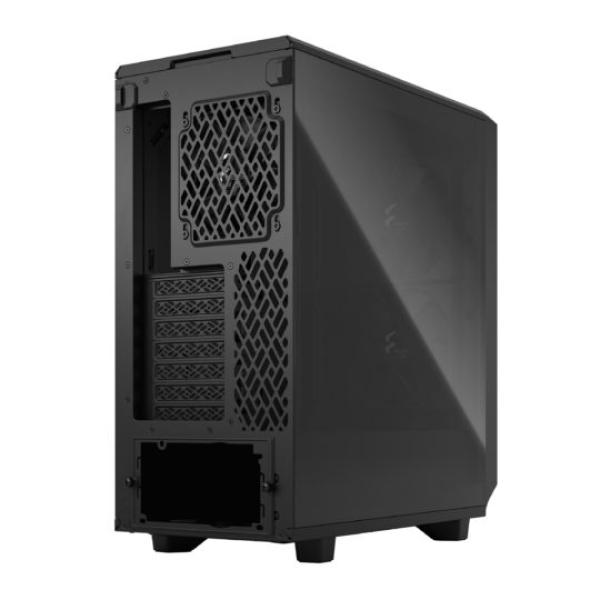

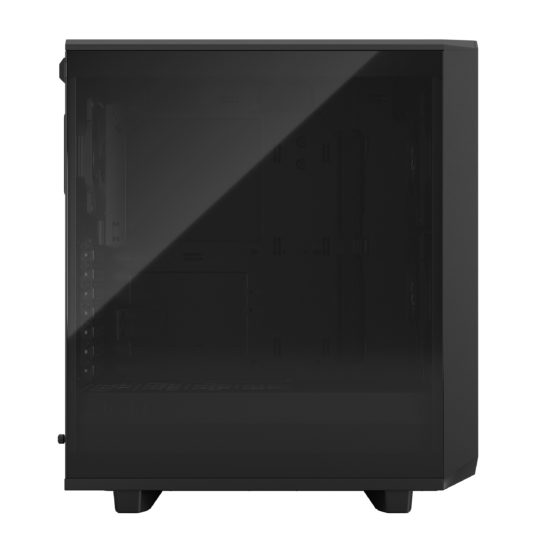

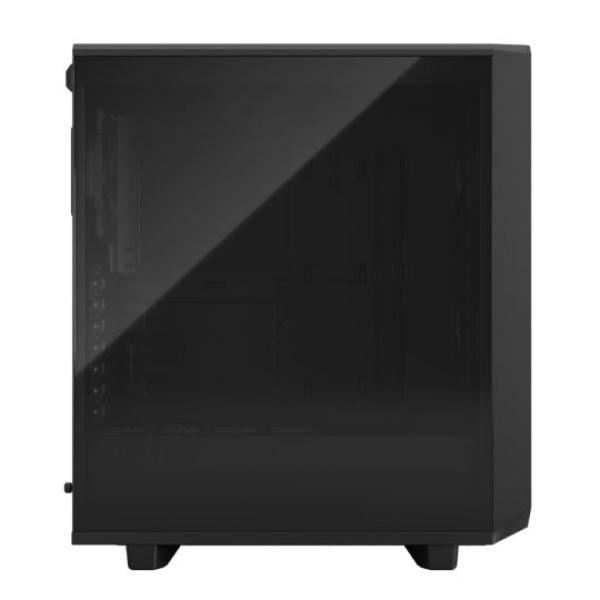

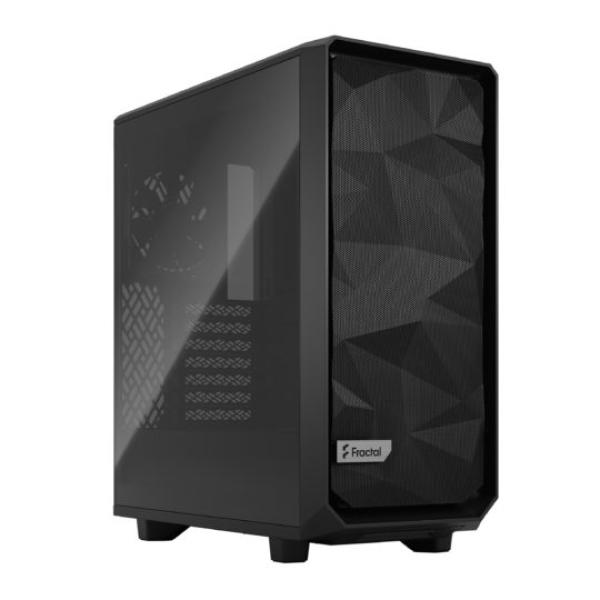

Fractal Design Meshify 2 Compact Black TG Light Tint/ Midi Tower/ Transpar./ Čierna
| Kód tovaru: | 1015221 |
|---|---|
| Výrobca: | Fractal Design |
| PN kód: | FD-C-MES2C-03 |
| EAN kód: | |
| Záruka: | 24 mesiacov |
| Dostupnosť: | nie je skladom |
| Očakávané naskladnenie: | nie je známe |
135,37€
110,06€ bez DPH
Meshify 2 Compact

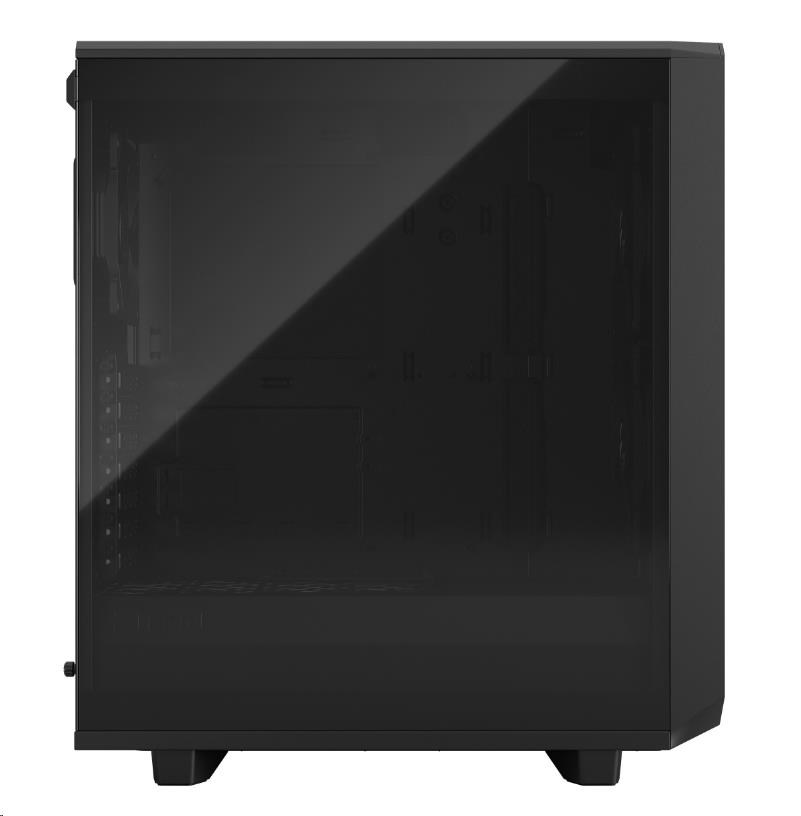

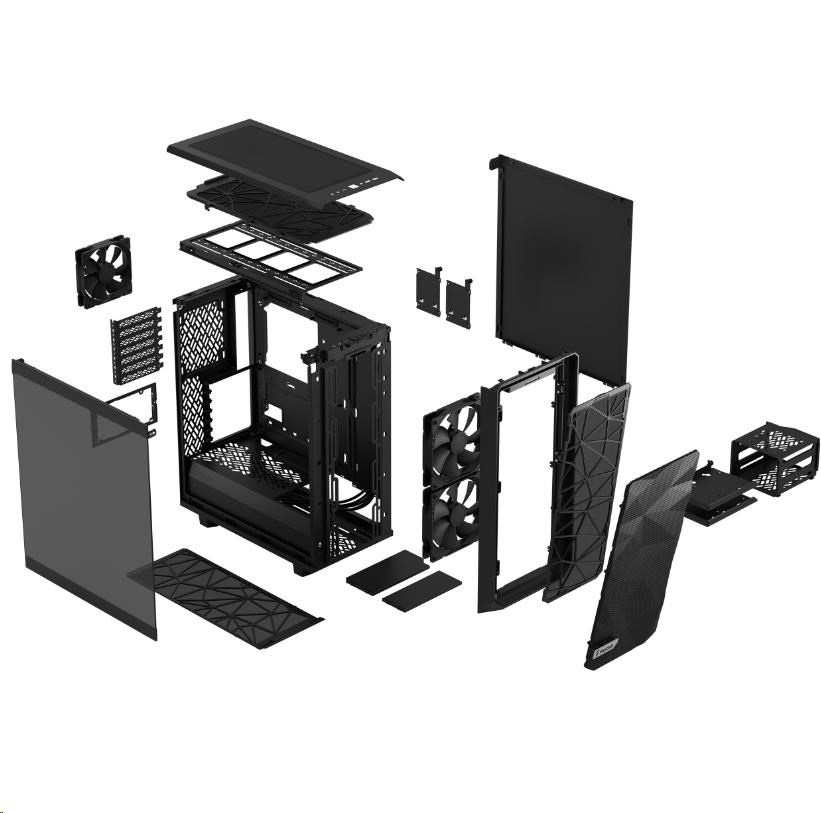

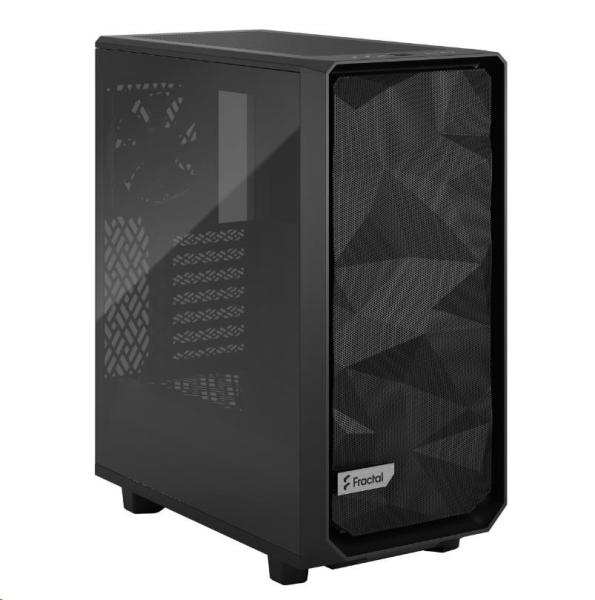

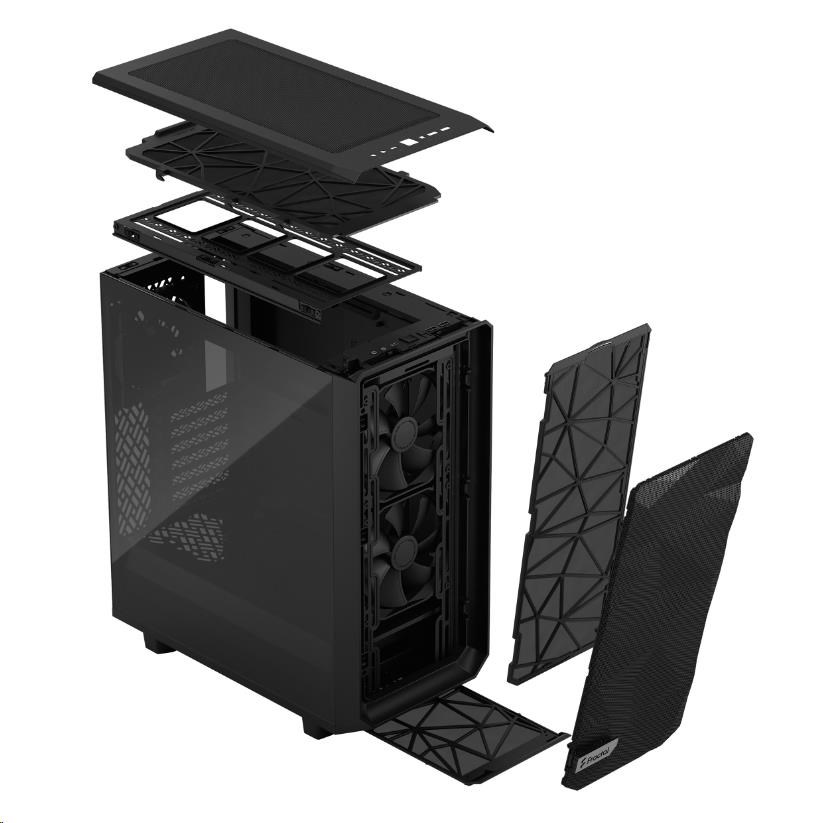

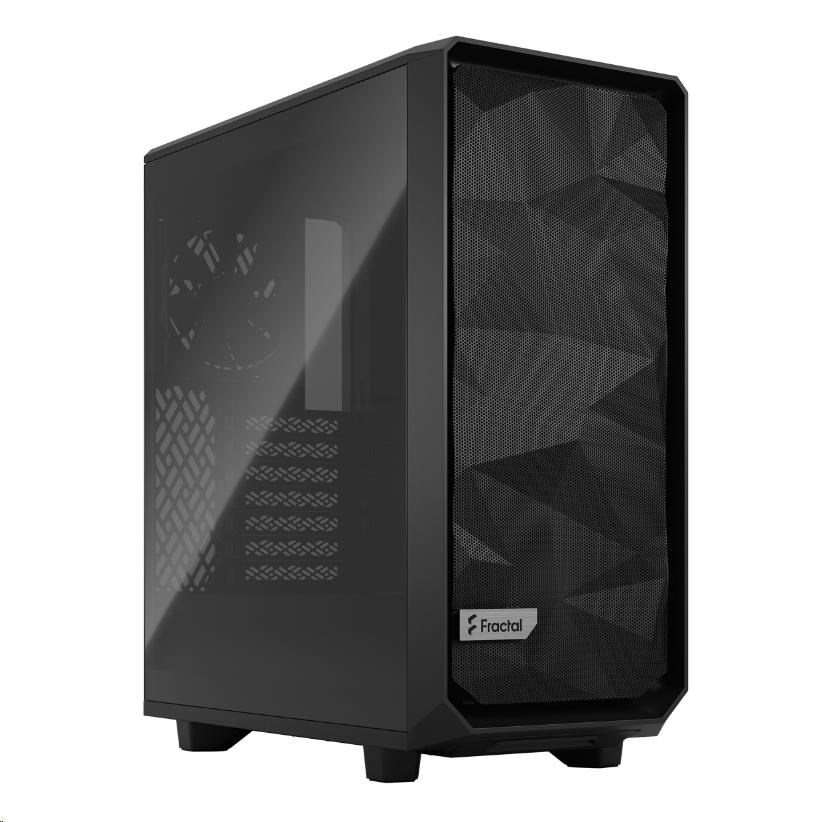

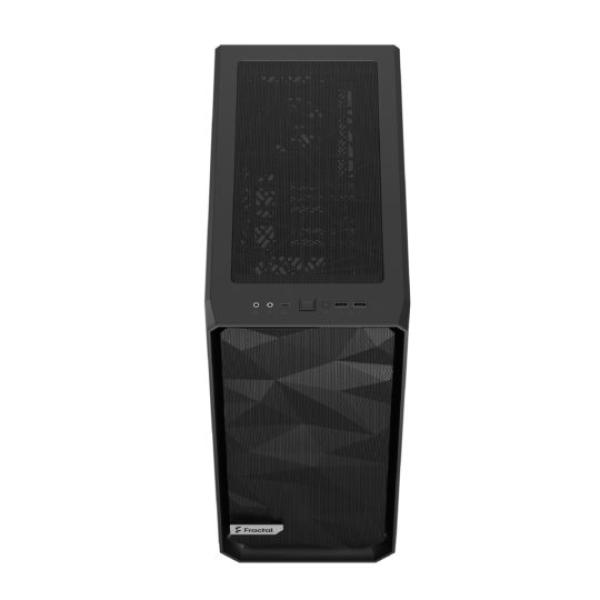

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

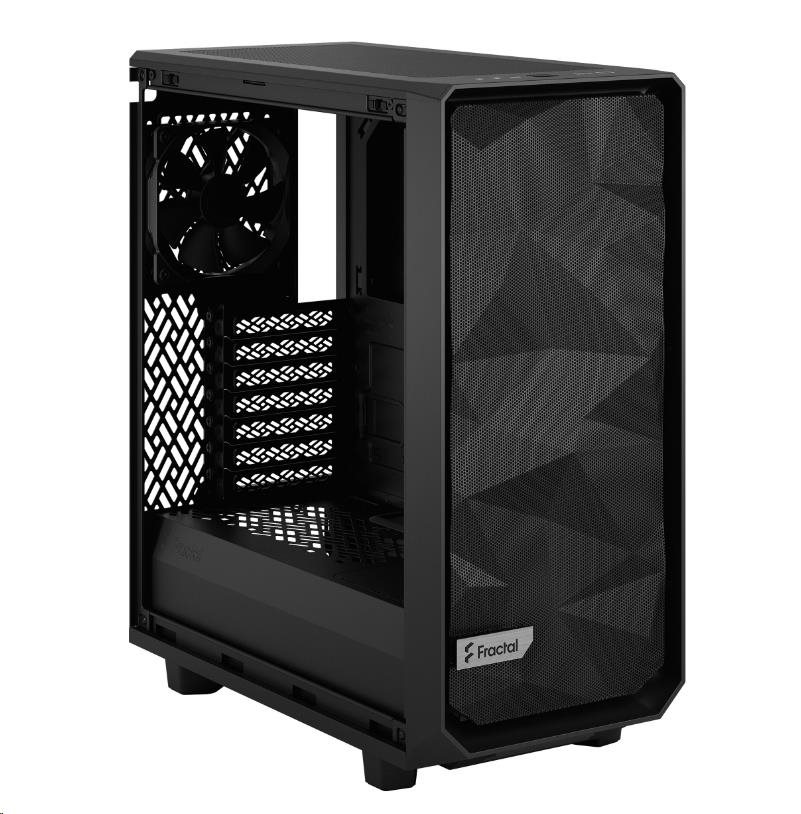

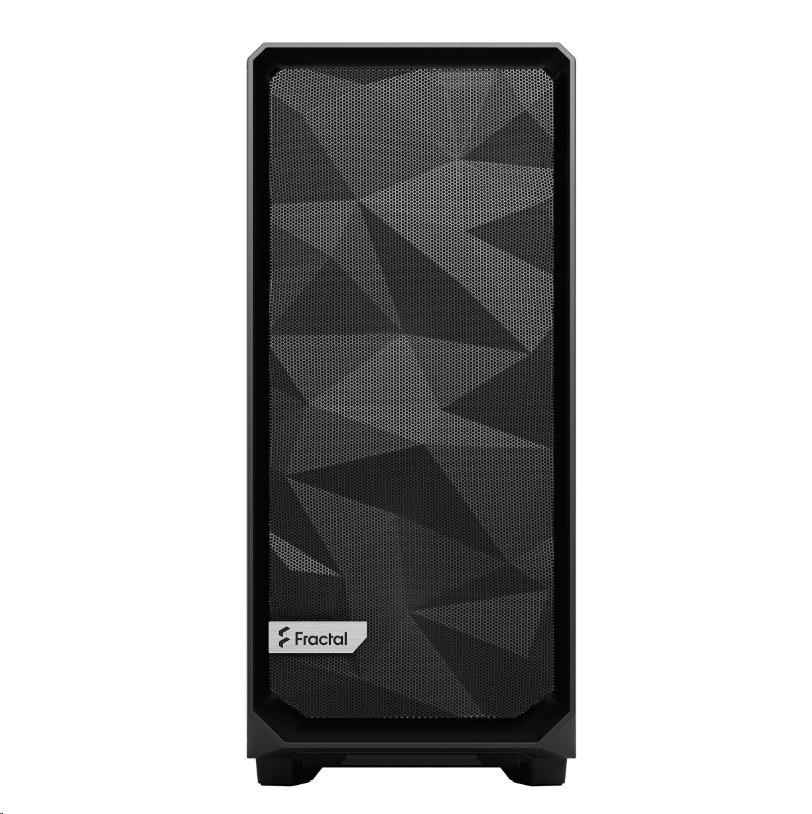

- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
TECHNICAL SPECIFICATIONS
| 3.5"/2.5" Universal drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included) |
| Expansion slots | 7 |

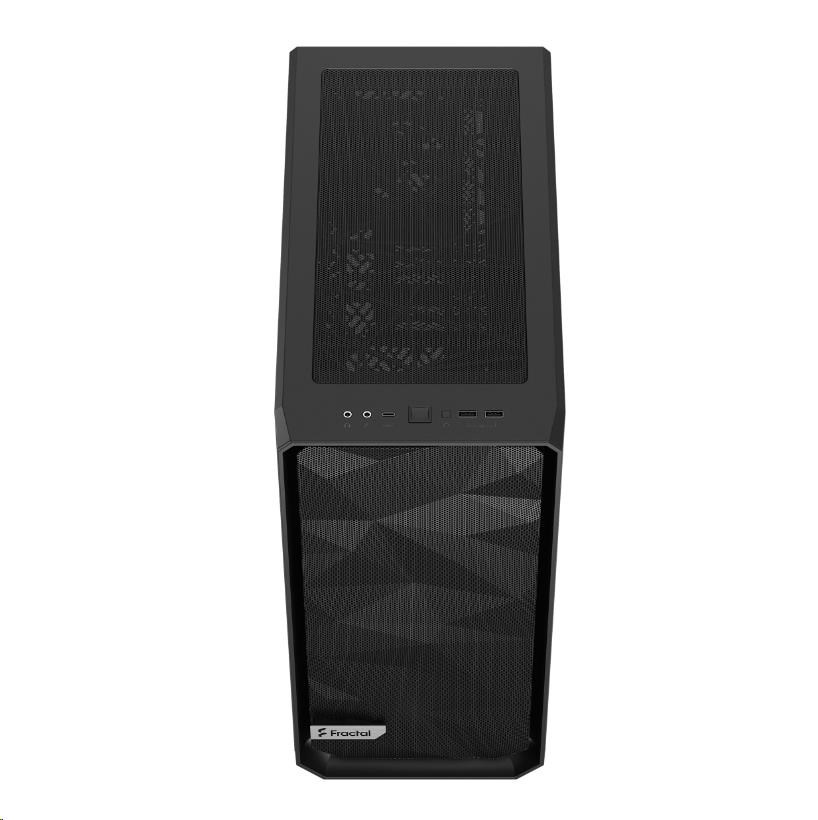

| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
| Front fan | 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm, (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, front and bottom |

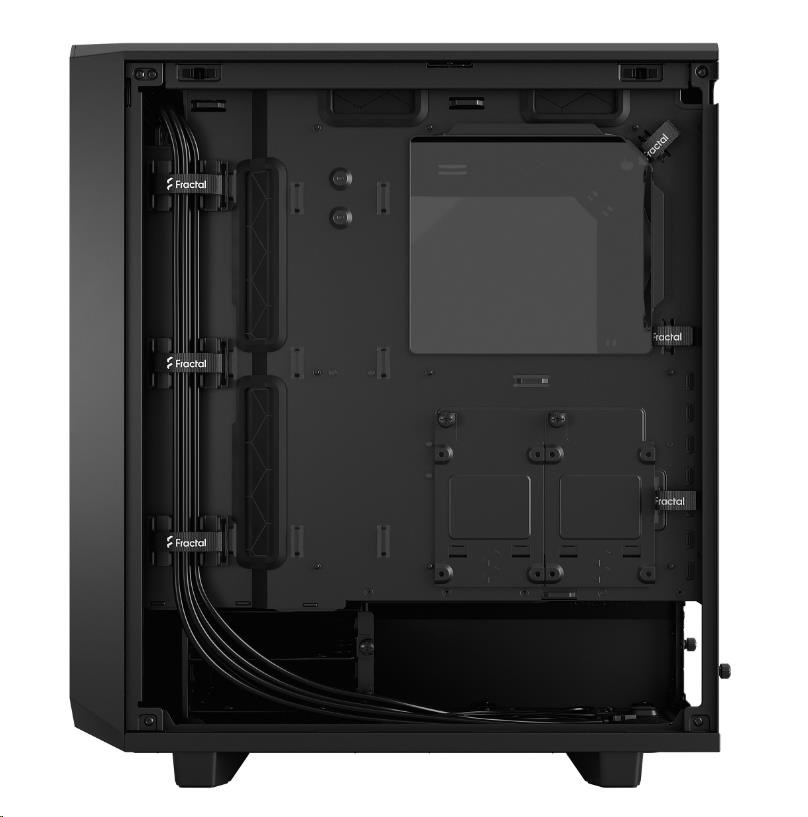

| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Steel |

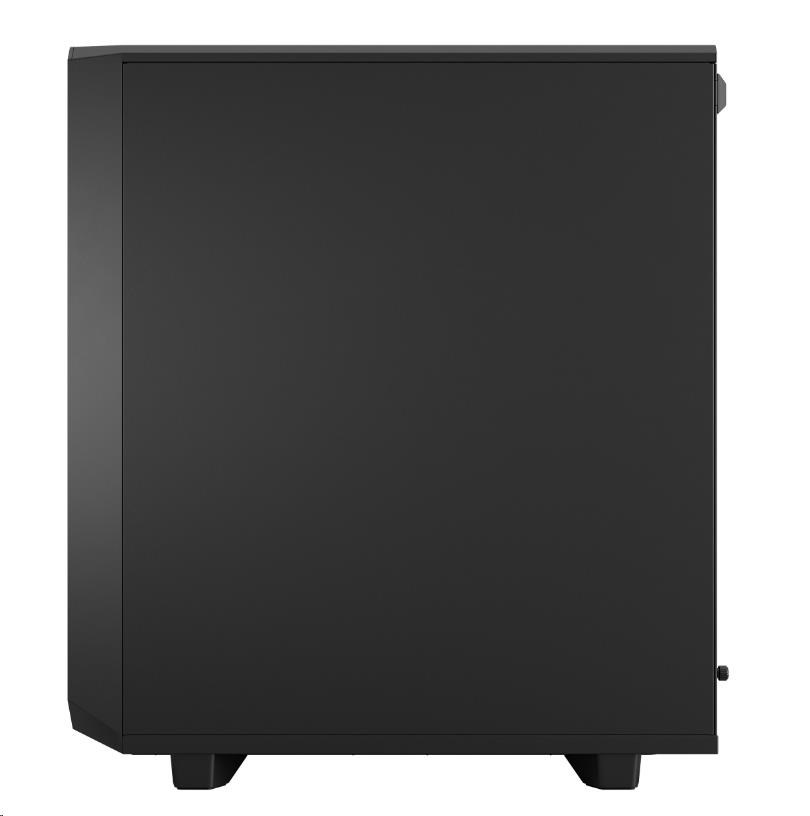

| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| PSU max length | 200 mm (165 mm with HDD cage and front fan) |
| GPU max length | 341 mm (360 mm without front fan) |
| CPU cooler max height | 169 mm |
| Cable routing space | 17-28 mm |
| Radiator Support – Additional Details | Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual. |
| Dimensions | |
| Case dimensions (L x W x H) | 424 x 210 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
| Net weight | Solid: 7.7 kg TG: 8.1 kg |
| Package dimensions (L x W x H) | 542 x 320 x 554 mm |
| Gross weight | Solid: 9.3 kg TG: 9.8 kg |
| Volume | 39.4 Liters |
Parametre
| Šířka jedn. balení | 56 |
| Rozměr xyz jedn. balení | 56x33x53 |
| Počet kusů jedn. balení | 1 |
| Typ balení jedn. balení | Kompletní |
| Hmotnost jedn. balení | 9.600 |
| Rozměr xyz palety | 120x100x205 |
| Počet kusů na paletě | 20 |
| Hmotnost palety | 207 |
| Typ obalu paleta | Expedovatelné |
| Hloubka jedn. balení | 53 |
| Typ balení palety | XXL |
| Výška jedn. balení | 33 |
| Zdroj ve skříni | Ne |
| Typ skříně | Midi Tower |
| Ne | |
| LCD displej ve skříni | Ne |
| Transparentní bočnice | Ano |
| Barva skříně | Černá |
| Šířka skříně (mm) | 210 |
| Výška skříně (mm) | 475 |
| Formát MB | Full ATX |
| Hloubka skříně (mm) | 424 |
| 0 | |
| 2 | |
| Audio na předním panelu | Ano |
| IEEE port na předním panelu | Ne |
| USB 3.x (počet) | 2 ks |
| USB 2.0 (počet) | 0 ks |
| USB 3.x Type-C (počet) | 1 ks |
| USB 3.x | Ano |
| USB 3.x Type-C | Ano |
| USB na předním panelu | Ano |
| Značka a model | Fractal Design Meshify 2 Compact Black TG Light Tint |
| Barva | Černá |
| Předinstalované ventilátory | 3 |
| USB 2.0 | Ne |
