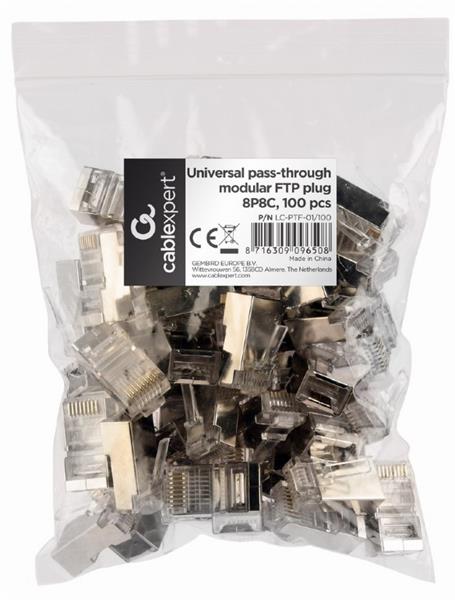

Gembird Universal pass-through modular FTP plug 8P8C, 100 pcs per bag
Kód tovaru: | 2577262 |
---|---|
Výrobca: | Gembird |
PN kód: | LC-PTF-01/100 |
EAN kód: | 8716309096508 |
Záruka: | 24 mesiacov |
Dostupnosť: | skladom (1) |
Universal pass-through modular FTP plug 8P8C, 100 pcs per bag

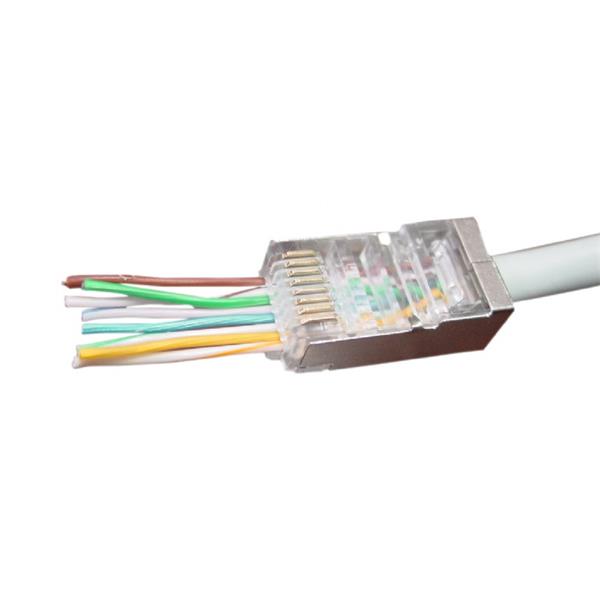

This innovative RJ45 8P8C connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector completely and out the front. This allows users to easily verify the proper wiring order. Because this also allows to tightly pull the connector down over the cable jacket, it seats more tightly in the rear of the connector as well. This reduces the distance between the wire twists and contacts and improves performance.
No more wasted crimps! More reliable, higher performance.
Features
Modular 8P8C RJ45 plug
Practical pass-through design for easy crimping
Gold plated 2-fork internal contacts for both solid and stranded LAN cables
Suitable for conductors of max. 24 AWG
Specifications
Structure: 8P8C
Shielding: yes (FTP)
Net weight: 17 g (10 pcs)
