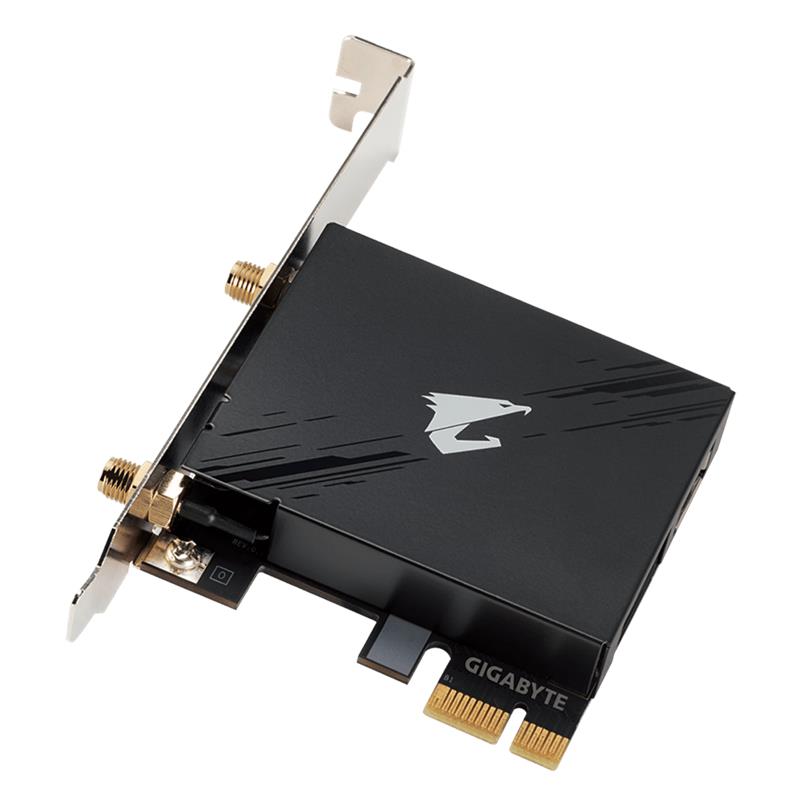

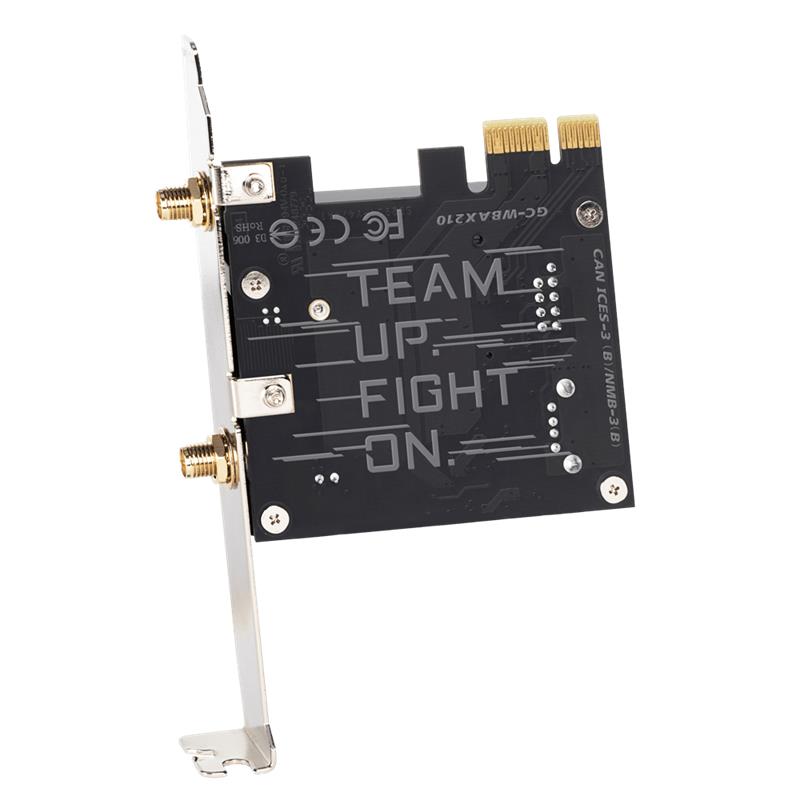

Gigabyte AORUS Intel WIFI 6E AX210 PCIe x1 network card

Kód tovaru: | 1030806 |
---|---|
Výrobca: | Gigabyte |
PN kód: | GC-WBAX210 |
EAN kód: | 4719331814953 |
Záruka: | 24 mesiacov |
Dostupnosť: | skladom (2) |
Intel® WI-FI 6E AX210 module built-in
Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies
Support dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bands
IEEE 802.11.acR2+ax compliant
High speed wireless connection up to 2400Mbps
Fully qualified BLUETOOTH 5.2
MU-MIMO TX/RX
Paired with AORUS high performance 2Tx2R antenna
PCIe x1 interface card
BLUETOOTH Function
Standard : BLUETOOTH 5.2
WIFI Function
Wireless Alliance*:
Wi-Fi CERTIFIED 6*, CERTIFIED* a/b/g/n/ac WMM*, WMM*-Power Save, WPA3, PMF*, Wi-Fi Direct*, WIFI Agile Multiband.
* Support of Wi-Fi Alliance certifications is OS-dependent.
IEEE WLAN Standard:
IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d ,e ,g ,h ,I ,k , n ,r ,u ,v ,w ,ac ,ax ; Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) HW readiness*
* IEEE 802.11az hardware readiness per expected Wi-Fi Location R2 feature support and based on draft 2.1 of the IEEE 802.11az amendment and is subject to change.
* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country.
Security Features*:
Security Methods - WPA2* ; WPA3 *
Authentication Protocols - 802.1X EAP-TLS,EAP-TTLS/MSCHAPv2, PEAPv0 –MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
* Some security solutions may not be supported by your device operating system and/or by your device manufacturer or may require additional hardware (e.g UICC_SIM card).Check with your device manufacturer for details on availability.
Parametre
Rozměr xyz jedn. balení | 15.4x21.3x31.6 |
Počet kusů jedn. balení | 1 |
Rozměr xyz kartonu | 30x20x30 |
Typ balení kartonu | Balitelné |
Hmotnost kartonu | 3.600 |
Hmotnost jedn. balení | 0.270 |
Typ balení jedn. balení | Balitelné |
Šířka jedn. balení | 15.4 |
Počet kusů v kartonu | 10 |
Hloubka jedn. balení | 31.6 |
Výška jedn. balení | 21.3 |
Typ obalu kartón | Expedovatelné |
Rozhraní karty | PCIe |
Rychlost Wi-Fi max. | 2,4 Gbit/s |
Antény | Všesměrové |
3G/4G/LTE modem | Ne |
Wi-Fi 2,4 GHz | Ano |
Wi-Fi 5 GHz | Ano |
WiFi 2 (802.11a) | Ano |
WiFi 1 (802.11b) | Ano |
WiFi 3 (802.11g) | Ano |
Wi-Fi 4 (802.11n) | Ano |
Wi-Fi 5 (802.11ac) | Ano |
Wi-Fi 6 (802.11ax) | Ano |
Typ zařízení | Síťová karta/Adaptér |
Datové sítě | Nepodporuje |
