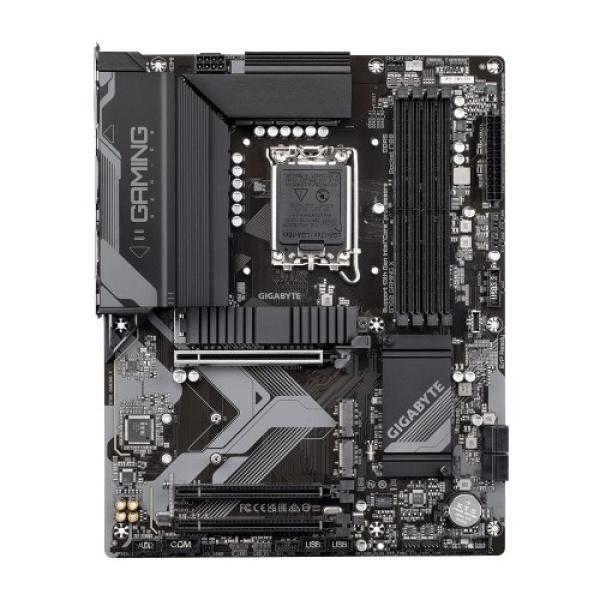

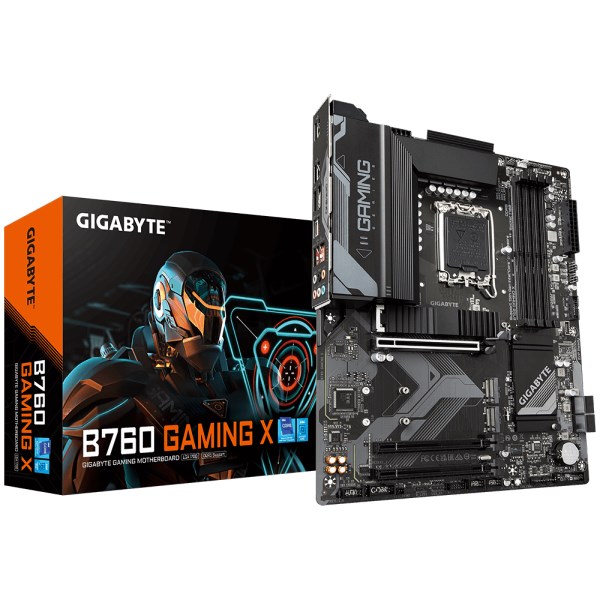

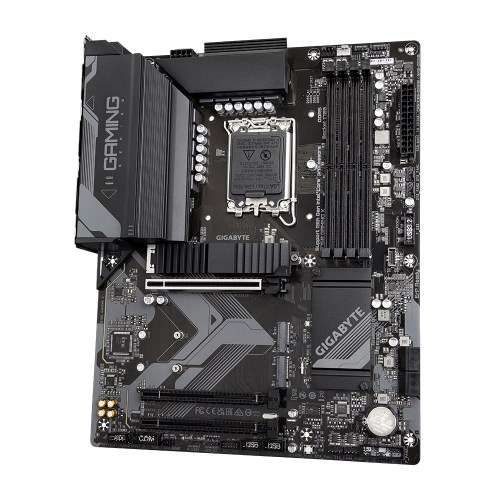

GIGABYTE MB Sc LGA1700 B760 GAMING X, 4xDDR5, 1xDP, 1xHDMI

Kód tovaru: | 1445963 |
---|---|
Výrobca: | Gigabyte |
PN kód: | B760 GAMING X |
EAN kód: | 4719331851989 |
Záruka: | 24 mesiacov |
Dostupnosť: | skladom (85) |
B760 GAMING X
- Intel Socket LGA 1700: Podpora procesorů Intel 13. a 12. generace
- Bezkonkurenční výkon: Hybridní 8+1+1fázové digitální řešení VRM
- Dual Channel DDR5: 4*DIMM s podporou paměťových modulů XMP
- Úložiště nové generace: 3*Konektory PCIe 4.0 x4 M.2
- Pokročilý tepelný design a M.2 Thermal Guard: Pro zajištění stability napájení VRM a výkonu M.2 SSD
- EZ-Latch Plus: Slot PCIe 4.0 x16 s rychloupínacím designem
- Rychlé sítě: 2.5GbE LAN
- Rozšířená konektivita: Přední USB-C 10Gb/s, DP, HDMI
- Smart Fan 6: Funkce vícenásobných teplotních čidel, hybridní hlavice ventilátoru s funkcí FAN STOP
- Q-Flash Plus: Aktualizace systému BIOS bez instalace procesoru, paměti a grafické karty

BEZKONKURENČNÍ VÝKON
S rychle se měnícími technologiemi GIGABYTE vždy sleduje nejnovější trendy a poskytuje zákazníkům pokročilé funkce a nejnovější technologie. Základní desky GIGABYTE jsou vybaveny modernizovaným řešením napájení, nejnovějšími standardy pro ukládání dat a vynikající konektivitou, která umožňuje optimalizovaný výkon pro hraní her.

VYNIKAJÍCÍ TEPELNÁ KONSTRUKCE
Neomezený výkon základních desek GIGABYTE je zaručen inovativním a optimalizovaným tepelným designem, který zajišťuje nejlepší stabilitu procesoru, čipové sady a SSD a nízké teploty při plném zatížení a herním výkonu.

KONEKTIVITA
Základní desky GIGABYTE umožňují maximální zážitek z připojení s bleskovou rychlostí přenosu dat prostřednictvím sítě a úložiště nové generace.

PERSONALIZACE
Základní desky GIGABYTE obsahují několik užitečných a intuitivních programů, které pomáhají uživatelům ovládat každý aspekt základní desky a poskytují přizpůsobitelný světelný efekt s vynikající estetikou, která odpovídá vaší jedinečné osobnosti.

ULTRA ODOLNÉ
Konstrukce GIGABYTE Ultra Durable zajišťuje odolnost produktu a vysoce kvalitní výrobní proces. Základní desky GIGABYTE používají ty nejlepší komponenty a vyztužují každý slot, aby byla každá z nich pevná a odolná.

Upozornění:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
V skratke
GIGABYTE B760 GAMING X
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*DIMMs XMP Memory Module Support
- Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

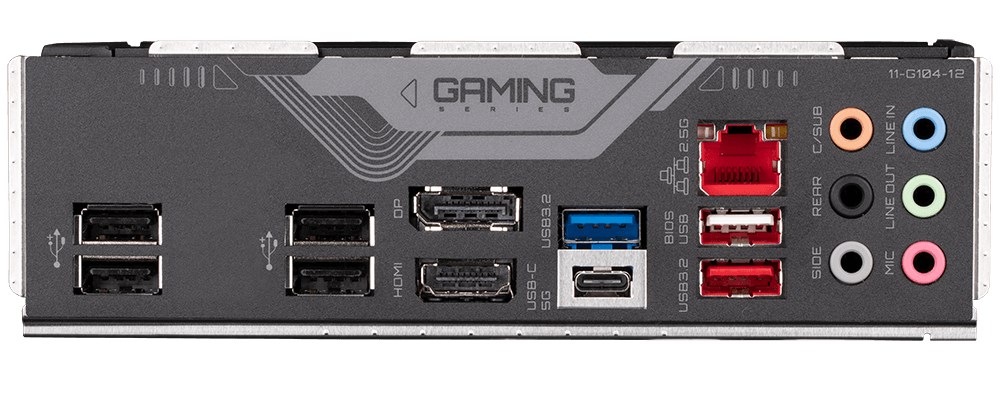

Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Parametre
Typ balení jedn. balení | Balitelné |
Hmotnost jedn. balení | 1.618 |
Počet kusů jedn. balení | 1 |
Rozměr xyz jedn. balení | 27.5x34.2x8.7 |
Hloubka jedn. balení | 8.7 |
Šířka jedn. balení | 27.5 |
Výška jedn. balení | 34.2 |
RAID řadič | Ano |
Počet LAN výstupů | 1x LAN konektor |
WiFi | Ne |
Velikost základní desky | ATX |
Podpora pro paměti typu | DDR5 |
Grafická karta | Ano (integrovaná v desce) |
TPM Header | Ano |
COM port (interní) | Ne |
LPT port (interní) | Ne |
BlueTooth | Ne |
VGA | Ne |
DVI | Ne |
HDMI | Ano |
DisplayPort / miniDisplayPort | Ano |
ThunderBolt (interní) | Ano |
XMP | Ano |
Typ síťové karty | Realtek |
Výrobce chipsetu | Intel |
Patice | LGA 1700 |
Chipset | B760 |
Max. velikost op. paměti (GB) | 192 |
Počet slotů M.2 | 3 |
Počet USB 2.0 (externí) | 5 |
Počet USB 3.x (externí) | 2 |
Maximální frekvence pamětí | 7600 |
Počet slotů PCIe x16 | 3 |
Počet slotů PCI | 0 |
Počet konektorů SATA 3Gb/s | 0 |
Počet konektorů SATA 6Gb/s | 4 |
Počet pinů USB 2.0 (interní) | 2 |
Počet pinů USB 3.x (interní) | 1 |
Počet paměťových slotů | 4 |
Herní provedení | Ano |
Počet USB Typ C (externí) | 1 |
COM port (externí) | Ne |
LPT port (externí) | Ne |
Podpora generace CPU | 12. a 13. gen. Intel |
USB Typ C (interní) | 1 |
RGB LED Header | Ano |
Rychlost LAN | 2,5Gb/s |
Model | GIGABYTE B760 GAMING X |
Revize | rev 1.0 |
PCIe 4.0 x16 | Ano |
M.2 v režimu PCIe 4.0 x4 | Ano |
Bluetooth | Ne |
Počet LAN portů | 1x |
Wi-Fi | Ne |
Konektor HDMI | Ano |
Konektor VGA (D-Sub) | Ne |
Konektor DVI | Ne |
