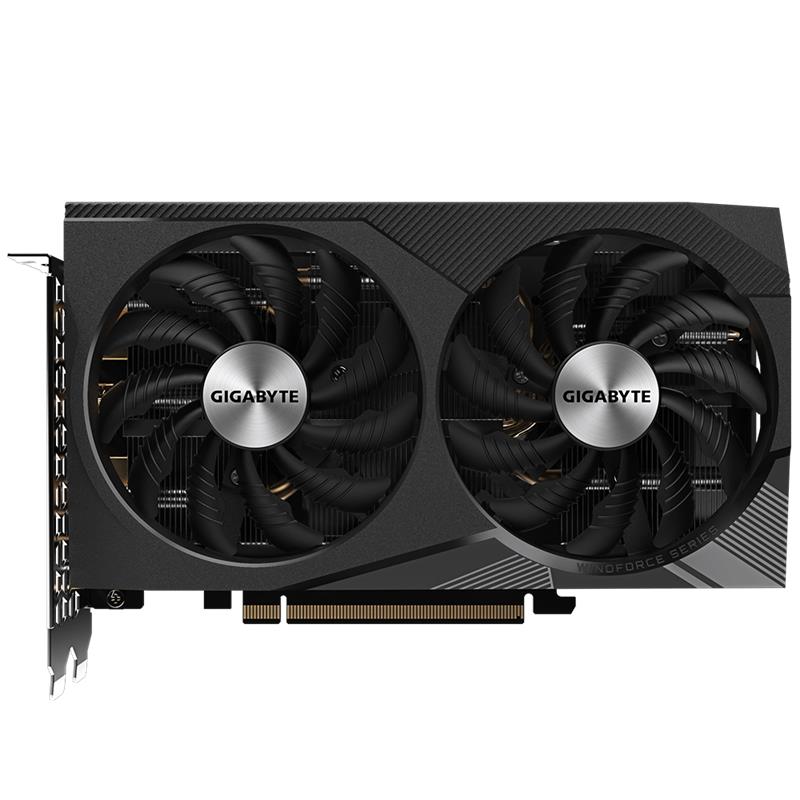

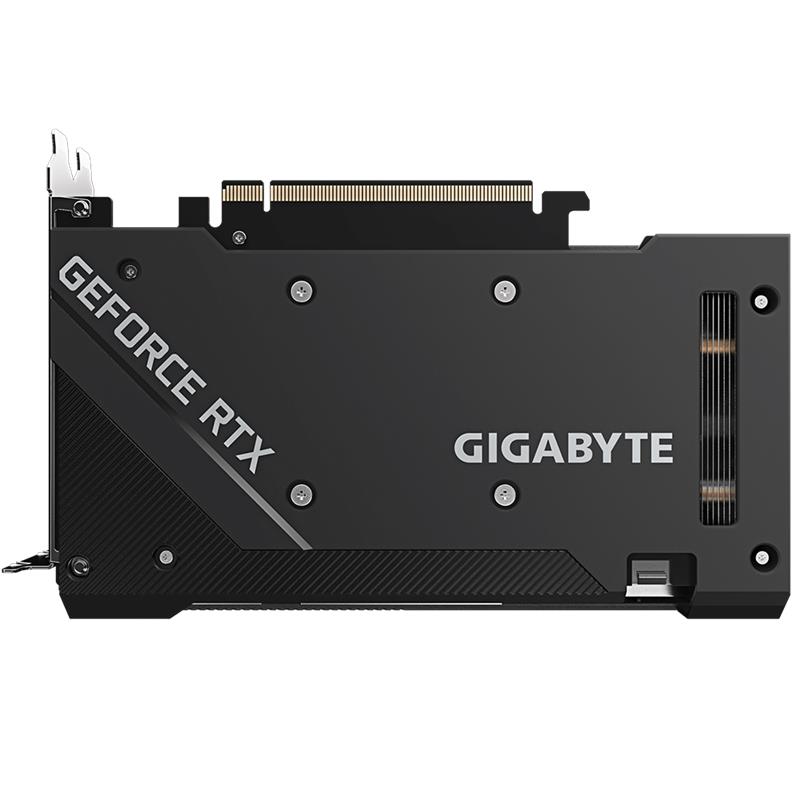

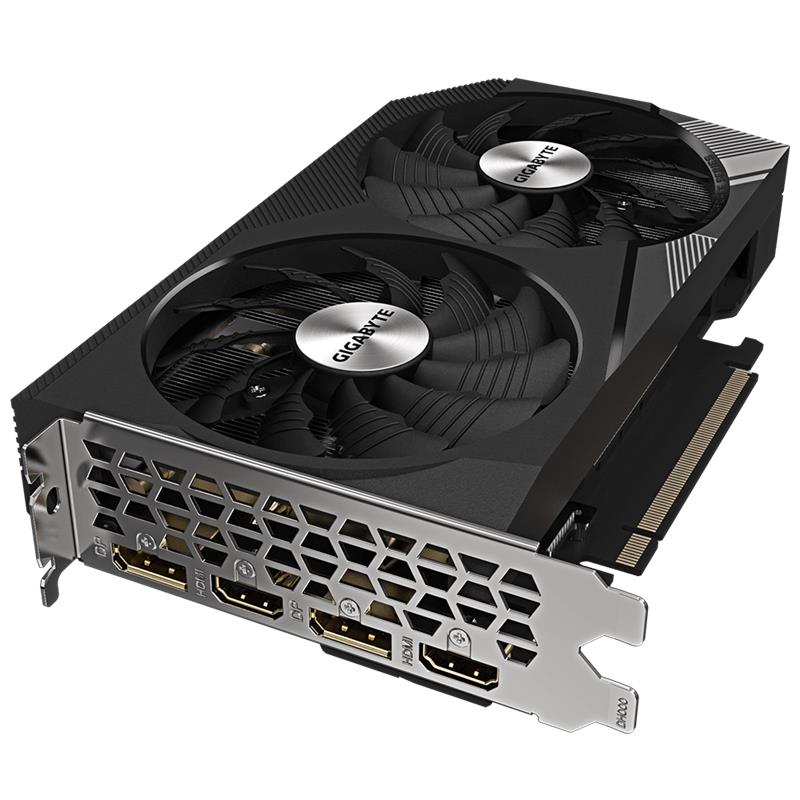

Gigabyte GeForce RTX 3060 WINDFORCE OC 12G

Mo KEY FEATURE

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Screen cooling
200 mm compact card size
Limited Hash Rate version
CORE CLOCK

1792 MHz (Reference Card: 1777 MHz)



Graphics Processing
GeForce RTX™ 3060
Core Clock
1792 MHz (Reference Card: 1777 MHz)
CUDA® Cores
3584
Memory Clock
15000 MHz
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
360 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
Card size
L=198 W=121 H=39 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
550W

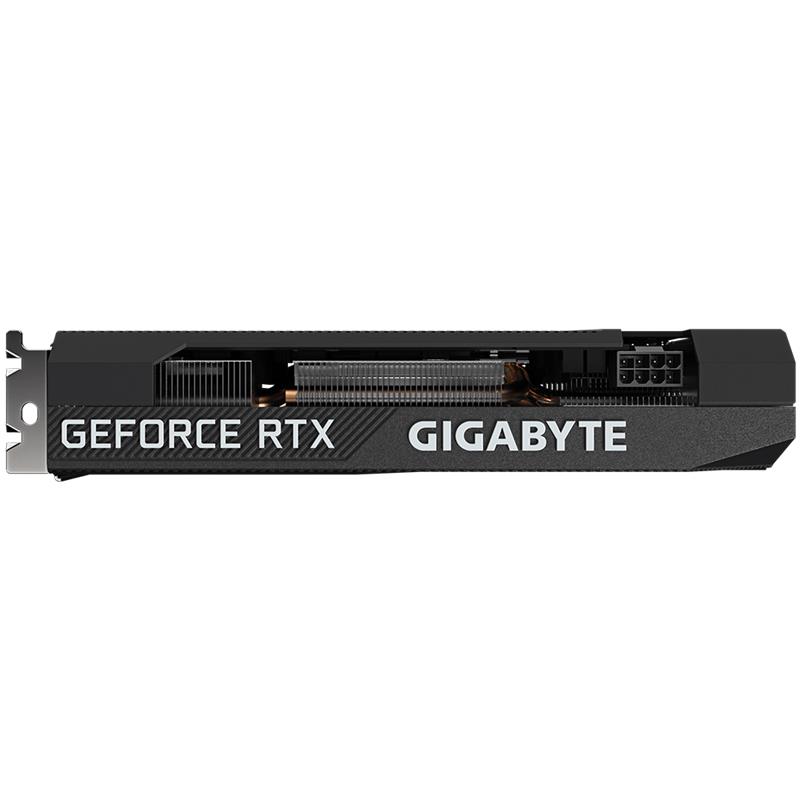

Power Connectors
8 pin*1

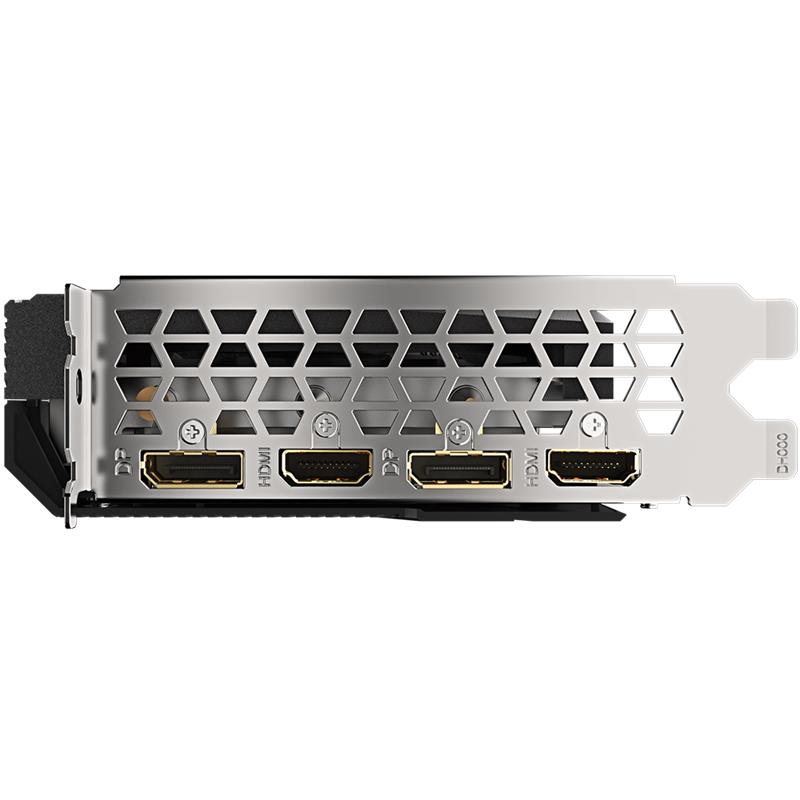

Output
DisplayPort 1.4a *2
HDMI 2.1 *2
SLI Support
N/A
Accessories
Quick guide
