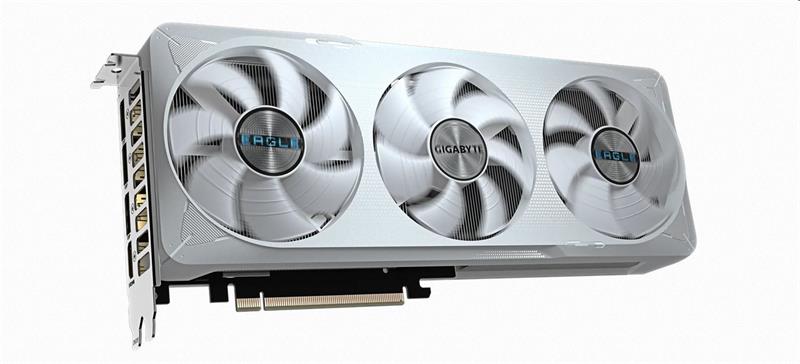

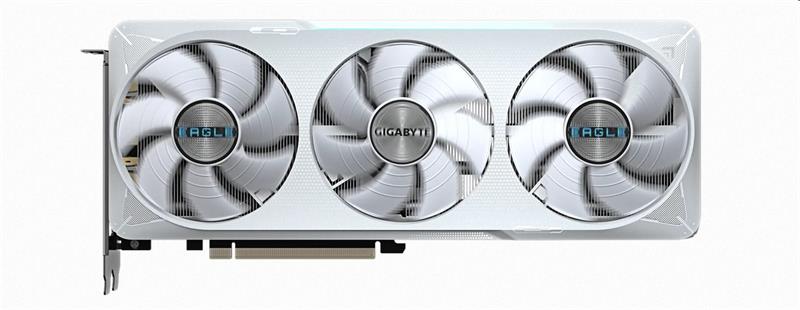

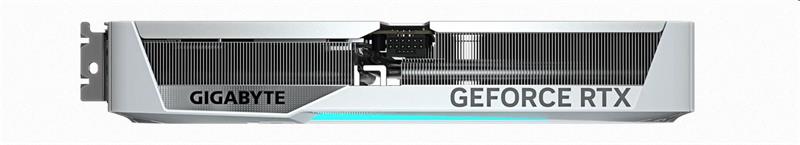

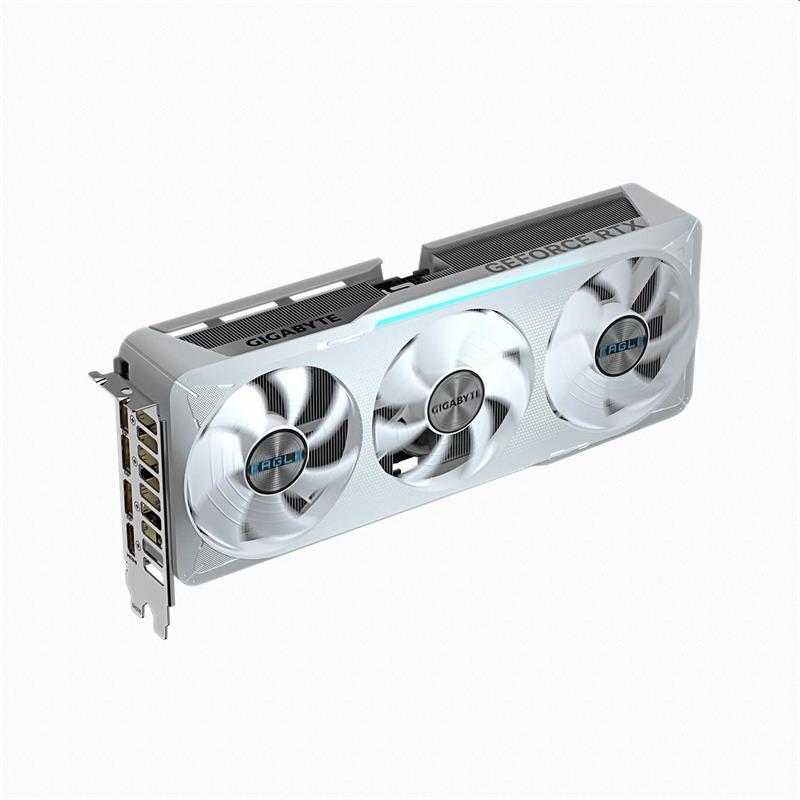

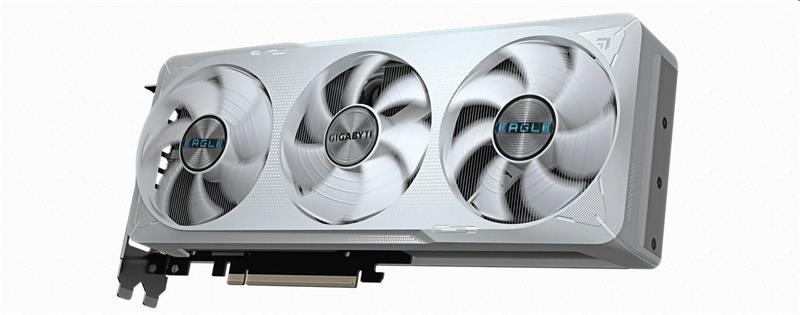

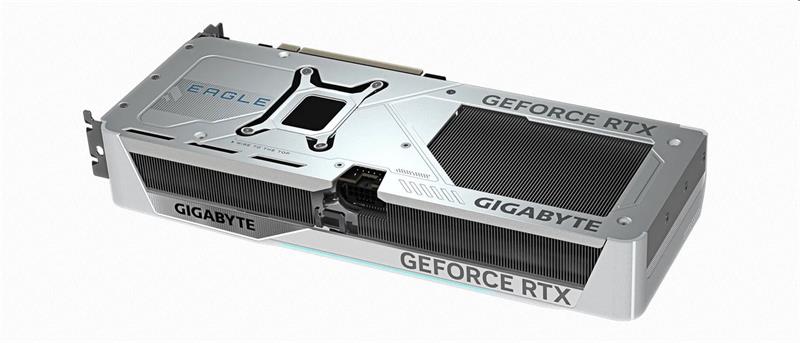

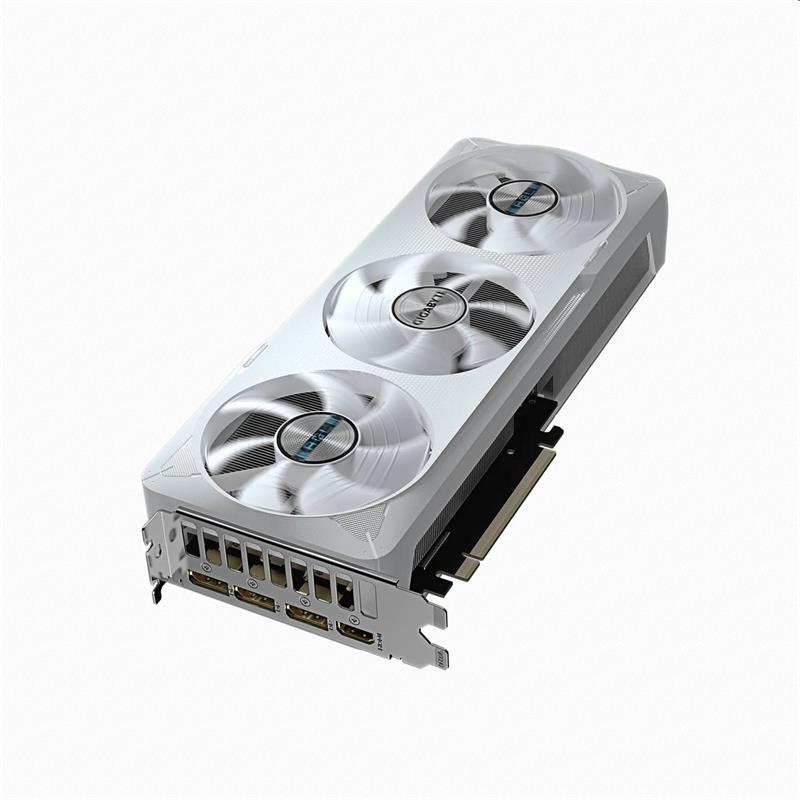

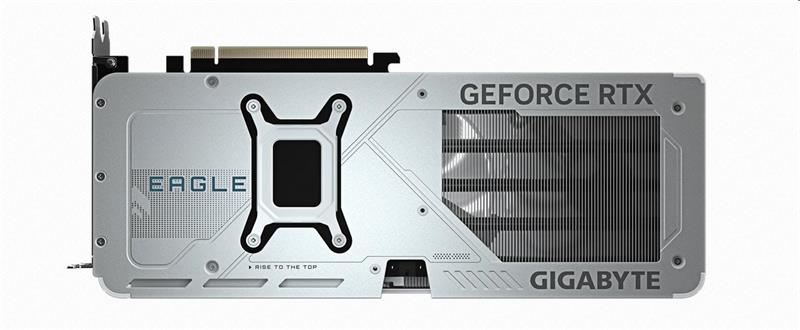

Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF 12G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
NVIDIA SFF-ready
RGB Lighting
Reinforced structure

CORE CLOCK

2587 MHz (Reference card : 2512 MHz)



Graphics Processing
GeForce RTX™ 5070
Core Clock
2587 MHz (Reference card : 2512 MHz)
CUDA® Cores
6144
Memory Clock
28 Gbps
Memory Size
12 GB
Memory Type
GDDR7
Memory Bus
192 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=290 W=120 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
750W
Power Connectors
16 Pin*1
Output
DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories
1. Quick guide
2. 1x 12V-2x6 to 2x PCIe 8pin adapter
