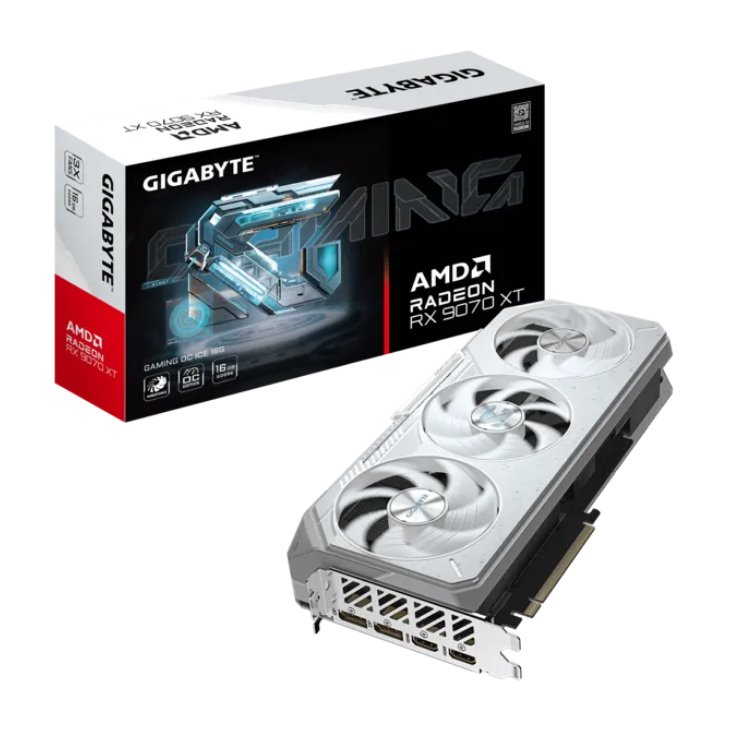

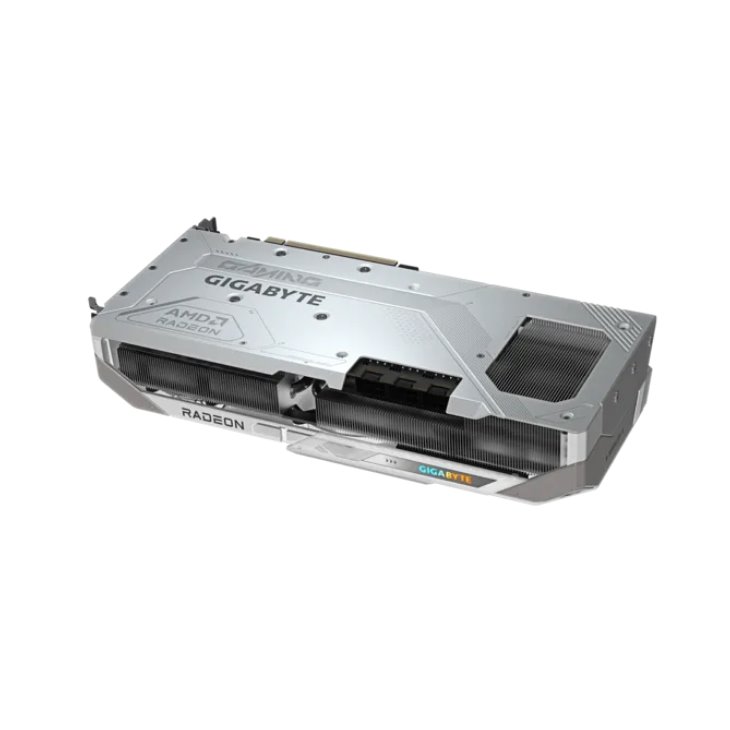

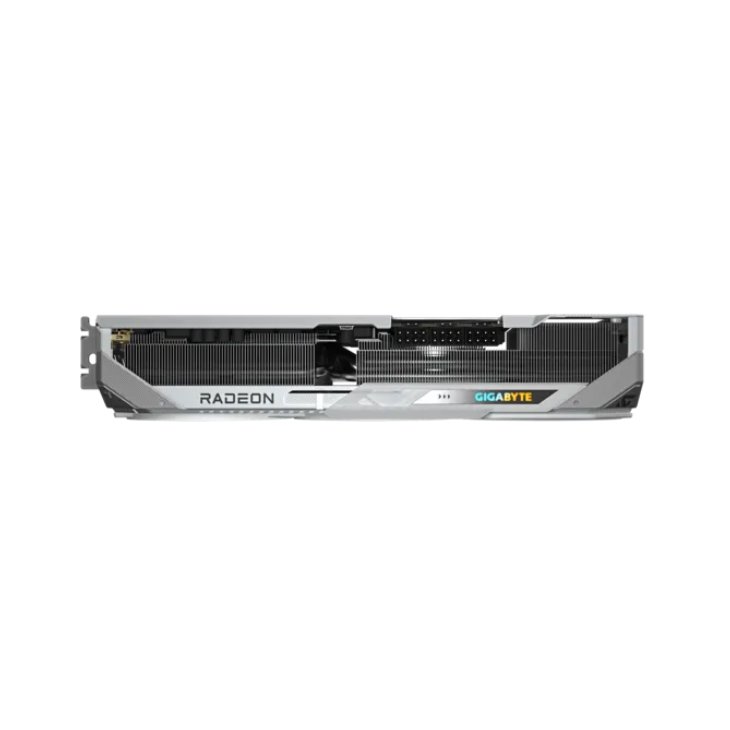

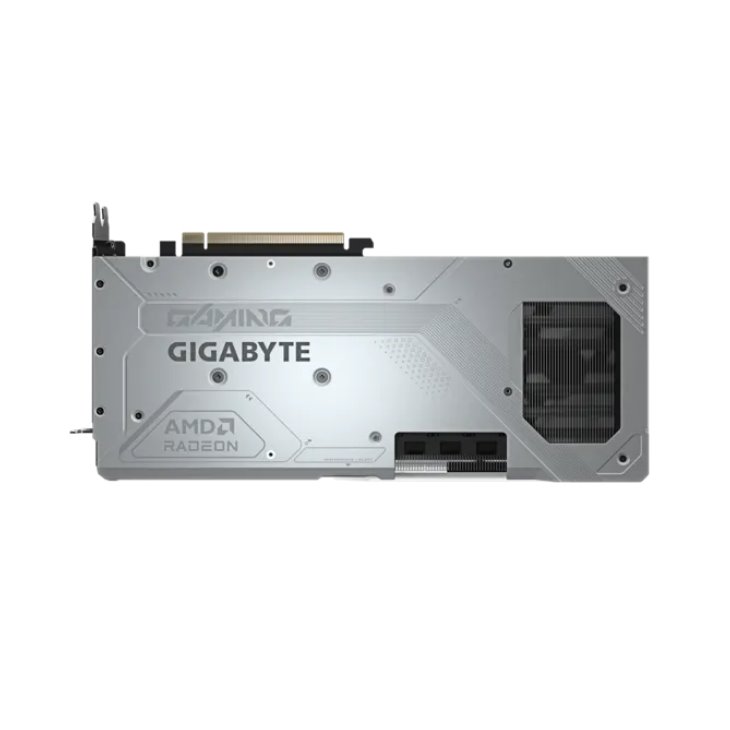

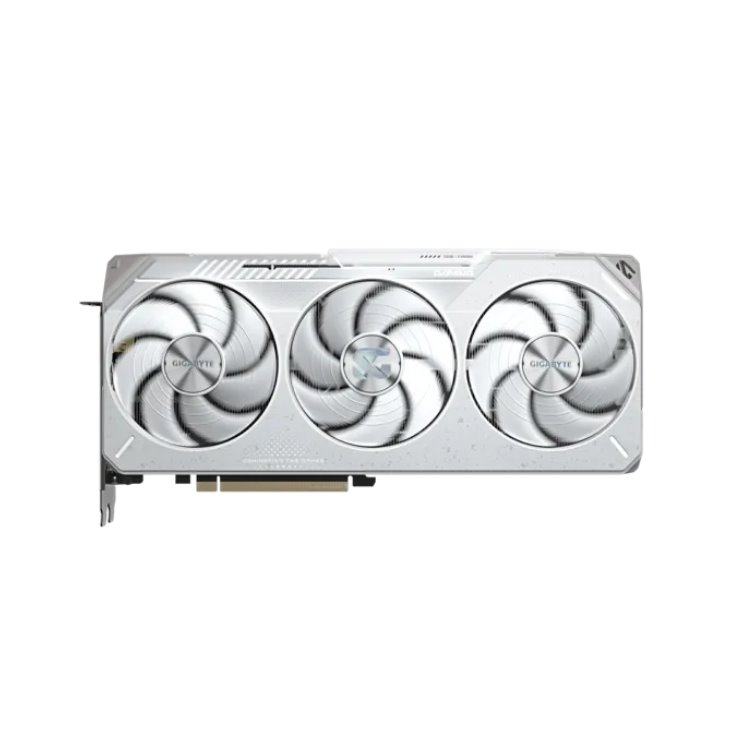

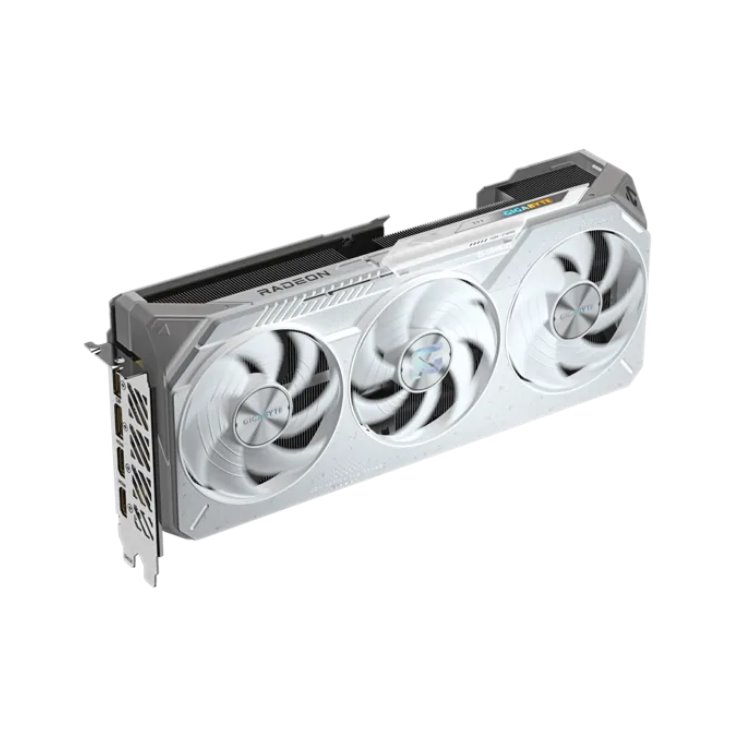

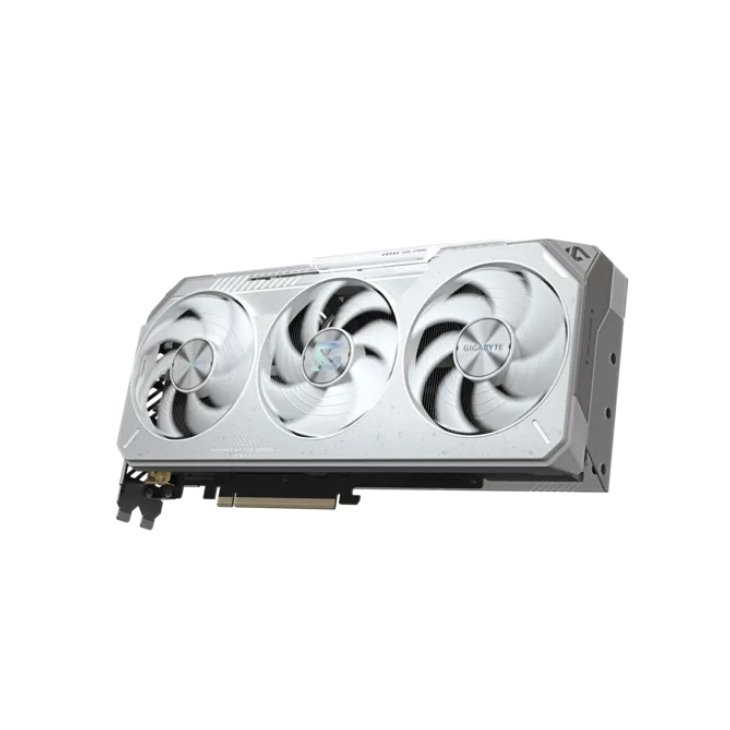

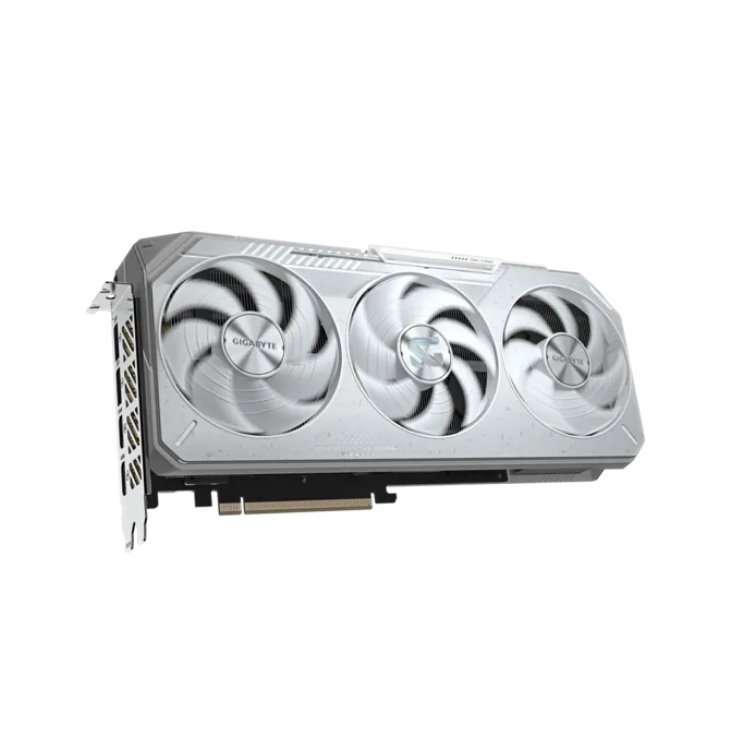

Gigabyte Radeon RX 9070 XT GAMING OC ICE 16G

FEATURES

Powered by Radeon™ RX 9070 XT
Integrated with 16GB GDDR6 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK

Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

Graphics Processing
Radeon™ RX 9070 XT

Core Clock
Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

Stream Processors
4096

Memory Clock
20 Gbps

Memory Size
16GB

Memory Type
GDDR6

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=288 W=132 H=56 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
850W

Power Connectors
8 pin*3

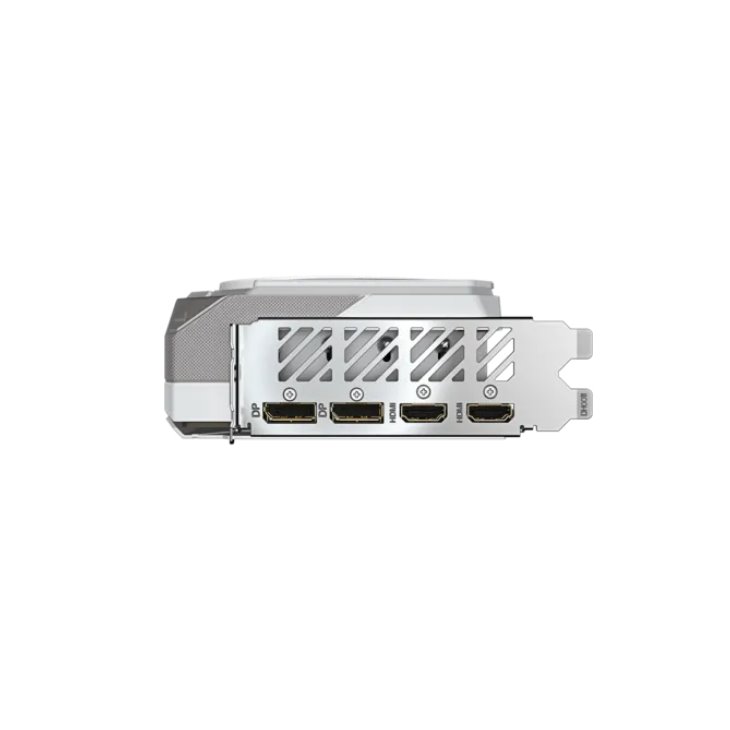

Output
DisplayPort 2.1a *2
HDMI 2.1b *2

Accessories
Quick guide

Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
