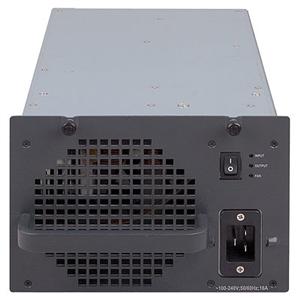

HPE 7500 6000W AC Power Supply

HP 7500 6000W AC Power Supply (JD227A)

Physical characteristics:
Dimensions: 14.06(d) x 7.72(w) x 5.04(h) in. (35.7 x 19.6 x 12.8 cm) (3U height)
Weight: 28.22 lb. (12.8 kg)

Electrical characteristics:
Voltage: 100-120/200-240 VAC
Current: 0/16 A
Idle power: 105 W
Maximum power rating: 6000 W
PoE power: 5300 W
Frequency: 50/60 Hz
Notes: Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
6000W AC Power Supply uses a 16-A AC power cable

Notes:
US order needs to indicate either #ABA option (for 110V) or #B2E (for 220V). This will determine which power cord the distribution centres include with the product.
