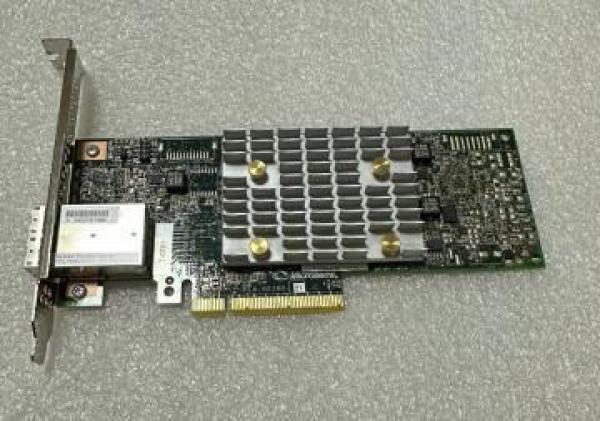

HPE MR416i-p Gen11 16 Internal Lanes/8GB Cache SPDM PCI Plug-in Storage Controller (buy cable P48909-B21)

HPE MR Gen11 Storage Controllers

A versatile, simplified, and flexible choice for data centers. HPE introduces an expansive and agile PCIe Gen 4.0 storage controller portfolio based on Broadcom® MegaRAID® technology delivering quality, performance, and security for mission-critical applications.

Key Features

• Standard PCI HH/HL and OCP NIC 3.0 form-factors
• Mixed Mode (RAID and/or JBOD) supporting RAID 0,1,10,5,50,6,60 (MR416i) or RAID 0,1,10 (MR216i)
• Up to 13.7 GBs of bandwidth, 3M Random Read IOPs, and 240K RAID5 Random Write IOPs
• 8 PCIe 4.0 host lanes
• 72b DDR4-2666 4GB (MR408i) or 8GB (MR416i) Flash-Backed Write Cache (energy pack is optional)
• 8 (MR408i) or 16 (MR416i) tri-mode NVMe, SAS, SATA internal lanes
• 16Gbs NVMe, 12Gbs SAS SSD/HDD, 6Gbs SATA SSD/HDD
• Up to 16 drives without expander
• DMTF Security Protection Data Model (SPDM) supports certificate-based authentication with HPE iLO6.
• Hardware Root of Trust (HWRoT) protects against malicious firmware
• Self-Encrypting Drives (SED) for data at rest encryption
• Windows, Linux, and VMWare
• MRSA, StorCLI, UEFI, and Redfish Management
• FASTPATH® (SSD acceleration)
• Online firmware updates for controllers, backplanes, and drives

Models

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Notes: An HPE Smart Storage energy pack (available in both battery and hybrid capacitor options) is optional with the HPE MR416i-o Gen11 and HPE MR416i-p Gen11 storage controller. See below for energy pack options.

Standard Features

Description

HPE MR416i-p Gen11 SPDM Storage Cntlr

HPE MR416i-o Gen11 SPDM Storage Cntlr

HPE MR216i-p Gen11 SPDM Storage Cntlr

HPE MR216i-o Gen11 SPDM Storage Cntlr

HPE MR408i-o Gen11 SPDM Storage Cntlr

SKU

P47777-B21

P47781-B21

P47785-B21

P47789-B21

P58335-B21

Ports

2x8 SlimSAS

2x8 LP SlimSAS

2x8 SlimSAS

2x8 LP SlimSAS

1x8 LP SlimSAS

Storage Lanes

x16

x16

x16

x16

X8

ASIC

Broadcom Aero

Broadcom Aero

Broadcom Aero

Broadcom Aero

Broadcom Aero

Form Factor

PCI HH/HL

OCP NIC 3.0

PCI HH/HL

OCP NIC 3.0

OCP NIC 3.0

Host Interface

PCIe Gen 4.0 x8 host

PCIe Gen 4.0 x8 host

PCIe Gen 4.0 x8 host

PCIe Gen 4.0 x8 host

PCIe Gen 4.0 x8 host

Cache Size (FBWC)

8GB

8GB

N/A

N/A

4GB

Read Ahead Caching

Write-back Caching

-

-

Storage Protocol

16Gbs NVMe, 12Gbs SAS, 6Gbs SATA

16Gbs NVMe, 12Gbs SAS, 6Gbs SATA

16Gbs NVMe, 12Gbs SAS, 6Gbs SATA

16Gbs NVMe, 12Gbs SAS, 6Gbs SATA

16Gbs NVMe, 12Gbs SAS, 6Gbs SATA

Max Drives

16

16

16

16

8

Max Volumes

64

64

64

64

64

RAID:

0,1,5,6,10,50,60

0,1,5,6,10,50,60

0,1,10

0,1,10

0,1,5,6,10,50,60

Mixed Mode: (RAID & HBA)

Feature

Description

SSD Accelerator

FASTPATH

Array Features

• Expand Array
• Move Drives
• Shrink Array
• Spare Management

Volume Features

• Expand Logical Drive
• Instant Secure Erase
• Migrate RAID/Stripe Size
• Modifying Cache Write Policy
• Move Logical Drive
• Re-enable Failed Logical Drive
• Load balancing
• Configurable stripe size up to 1 MB
• Fast initialization for quick array setup
• Check consistency for background data integrity
• Patrol read for media scanning and repairing
• Rebuild

Other Features

• Auto resume after loss of system power during array
• SSD support with SSD Guard^TM technology
• DDF compliant Configuration on Disk
• SSD Wear Gauge
• SMART Predictive Drive Failure
• Global and dedicated Hot Spare with Revertible Hot
• Spare support:

­ Automatic rebuild

­ Enclosure affinity

­ Emergency SATA hot spare for SAS arrays

• Enclosure management:

­ Universal Backplane Management (UBM)

• Shield state drive diagnostic technology
• SED Key Management (HKM, LKM, and RKM)
• DRAM ECC detects and corrects data bit errors.

HPE OneView Support

Monitored Mode

Kit contents

Includes storage controller, information card, warranty statement, and backup power cable (MR408 & MR416)

Optional Accessories for HPE MR408i-o / MR416i-o / MR416i-p Gen11 SPDM Storage Controllers

Energy pack Options Sold Separately

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

P01367-B21

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit

P02381-B21

Notes:

­ An HPE Smart Storage energy pack is optional

­ Moving volumes or SED locked drives between SR and MR controllers is not supported.

Warranty

The warranty for this device is 3 years parts only.

Warranty Upgrade Options

• Response - Upgrade on-site response from next business day to same day 4 hours.
• Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days.
• Duration - Select duration of coverage for a period of 1, 3, or 5 years.

Warranty upgrade options can come in the form of HPE Pointnext operational, which are sold at the HPE System level to which this product attaches.

Operating System Support

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware ESXi
• Canonical Ubuntu
• CentOS

Notes: HPE MR Gen11 Storage Controllers supports the server operating systems. For more information on HPEs server operating systems and virtualization software, please visit: http://www.hpe.com/info/ossupport

Storage Management Software Suite

• HPE MR Storage Administrator (MRSA)
• HPE StorCLI
• UEFI System Utilities (storage configuration)
• HPE iLO6 Redfish

Please refer to https://www.hpe.com/info/scmo for more detailed information.

HPE MR Storage Administrator

The MR Storage Administrator is a web-based application that enables you to configure, monitor and troubleshoot MegaRAID (MR) storage controllers. The MR Storage Administrator graphical user interface (GUI) helps you to view, create, and manage storage configurations.

• Configuring: HPE MR Storage Administrator enables you to configure and view status of the controllers, volumes, and drives. The device status icons are displayed on their respective pages to notify you in case of drive failures and other events that require your immediate attention. Real-time email notifications on the status of the server are sent based on your alert settings. The system errors and events are recorded and displayed in an event log file. Additionally, you can also import or clear foreign configurations.
• Monitor: HPE MR Storage Administrator (MRSA) allows you to selectively deliver alerts to the OS system log, event log, or email based upon severity level. Additionally, individual storage devices can be viewed within the GUI.
• Troubleshooting: HPE MR Storage Administrator displays information related to drive failures, device failures, and so on. It also provides recommendations and displays contextual links, helping you to easily locate the drives that have issues and troubleshoot them. You can also download a support log containing the devices, properties, configurations, and logs and send it to the HPE support teams for further troubleshooting.

Please refer to https://www.hpe.com/support/MRSA for more detailed information.

StorCLI Management Tool

The Storage Command Line Interface (StorCLI) tool is the command line management software designed for the MegaRAID product line. The StorCLI tool is designed to be easy to use, and script.

Please refer to https://www.hpe.com/support/StorCLI for more detailed information.
