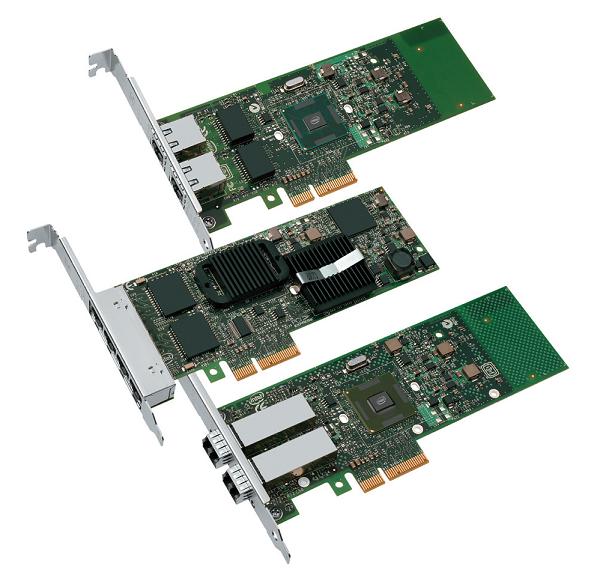

Intel® Gigabit Quad Port Ethernet I350 -T4 V2 PCI-Ex

Technical
Data rate supported per port: • 10/100/1000 Mbps (Copper), 1000 Mbps (Fiber)
Bus type • PCI Express* 2.1 (5 GT/s)
Bus width • 4-lane PCI Express; operable in x4, x8 and x16 slots
Interrupt levels • INTA, INTB, INTC, INTD, MSI, MSI-X
Hardware certifications • FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Controller-processor • Intel Ethernet Controller I350
Power consumption (typical) • Copper:
I350T2V2 4.4 W
I350T4V2 5.0 W
• Fiber:
I350F2 5.5 W
I350F4 6.0 W
Operating temperature • 0 °C to 55 °C (32 °F to 131 °F)
Storage temperature • -40 °C to 70 °C (-40 °F to 158 °F)
Storage humidity • 90% non-condensing relative humidity at 35 °C
Connect Speed LED Indicators • Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper)
• Green=1 Gb/s. Not illuminated=no link (Fiber)
