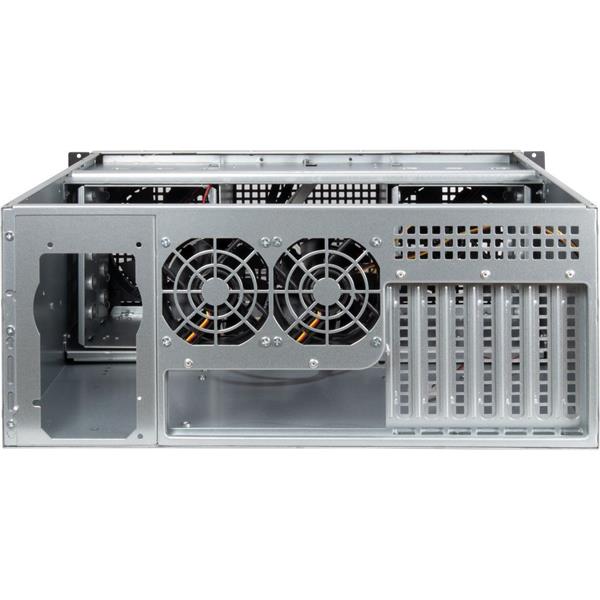

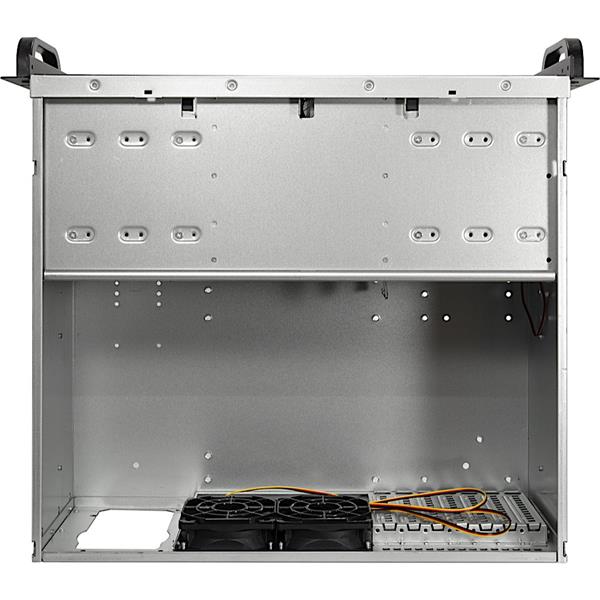

INTER-TECH case server IPC 4U-40255, rack 4U

MOTHERBOARD
Form factor Mini ITX, mATX, µATX, ATX, SSI CEB, SSI EEB, eATX
max. Motherboard size 305mm x 330mm (12" x 13")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 150mm
Length graphics card (max.) 330mm
DRIVE BAYS
5.25" external 3xą
3.5" external
3.5" internal 11xą
2.5" internal 4xą
ą can vary by using several mounting options
FRONT CONNECTORS

USB 3.0 2x
USB 2.0
POWER SUPPLY
PS2/mini redundant PSU
ATX PSU
FAN MOUNTING OPTION
Front 2x 120mm (serial, Molex connector) and 6x 40mm (optional, behind the 5.25"brackets)
Rear 2x 80mm (serial, 3pin connector)
CONTROLS & LED
Controls Power-Switch
Reset-Button
LED Power
HDD Activity
3x Network Activity
Alert
OTHER DATA
Dimensions (h/w/d) 177.8 x 485 x 595mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery
Case

Retail packaging

Screw Set

Mounting rails for 3.5" hard drives

Mounting frame for redundant power supplies

Features
7 slot openings

2x 120mm and 2x 80mm fan included

Up to 6x 40mm fan optional mountable

Lid with snap lock

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 15 Pcs
Weight net = 11.46kgs
gross = 13.71kgs
Item number 88887304
EAN-Code 4260455645935
