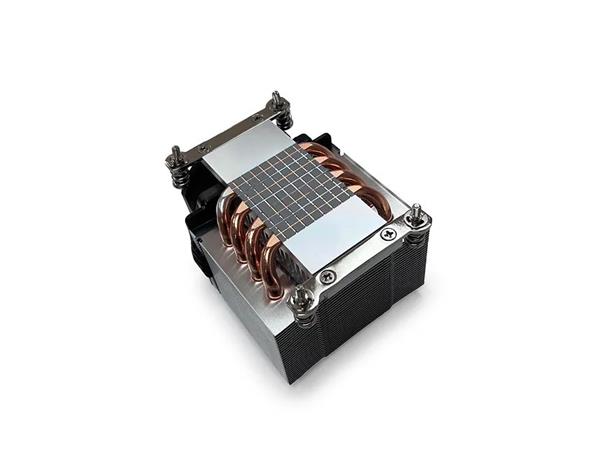

INTER-TECH Dynatron A47 chladic CPU, AMD, server 2U,AM4/AM5 socket (do 170W)

CPU Support

AMD® Ryzen

CPU Socket

AM4/AM5

Screw Type

#6-32

Installation Torque

6-10 in-lb

Solution

2U Server and Up

Dimensions

107 x 78 x 67 mm

Weight

400 g

Material

4 Heat pipes and Aluminum Stacked Fin

Fan Dimension

60 x 60 x 25 mm

Speed

At Duty Cycle 20%: 2300±200 RPM
At Duty Cycle 50%: 5400±10% RPM
At Duty Cycle 100%: 11000±10% RPM

Bearing

Double-Ball

Rated Voltage

12V

Power

At Duty Cycle 20%: 0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18.0 W

Air Flow

At Duty Cycle 20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM

Noise Level

At Duty Cycle 20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA

Air Pressure

At Duty Cycle 0~20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O
At Duty Cycle 100%: 28.8 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
