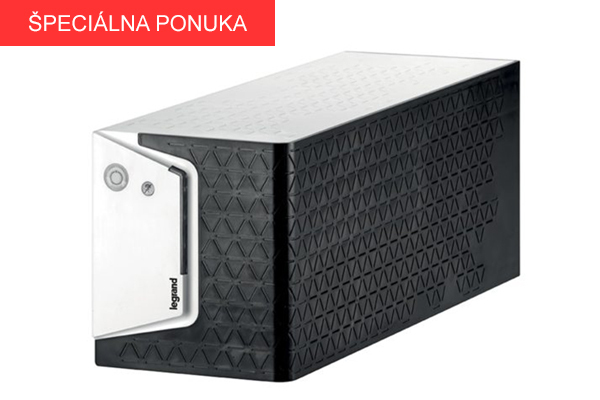

Legrand UPS KEOR SP 1500 VA 6 IEC

AVR (automatický regulátor napätia)


Nabíjací port USB


Nabíjací port USB


Komunikačný port USB



Input voltage 170-280 V

Primary frequency 45-65 Hz

Number of phases primary 1

Output voltage 207-253 V

Secondary frequency 49-61 Hz

Output effective power 900 W

Output apparent power 1500 VA

USB interface Yes

With communication interface RS-232 Yes

Number of phases secondary 1

SNMP No

Voltage type AC

Height 173 mm

Width 148 mm

Depth 380 mm

Weight 10.5 kg

Bridging time full load 1 min

Suitable for network-management No

USV- technology Line-interactive

Construction type Free standing model

Output power factor 0.6

Overall efficiency 97 %

Potential free switch contact No

Auto shut down function No

Input connection C14

Number of output connections C13 6

Number of output connections C19 0

Number of output connections with protective contact CEE 7/3 (type F) 0

Number of output connections fixed connection 0

Number of output connections French standard (Type E) 0

Degree of protection (IP) Not applicable

Operating / setting temperature 0-40 °C

Storage temperature 0-40 °C

Sound level 40 dB

Type of load Universal

With socket outlet Yes

Contains Batteries and/or Accumulator Yes

IEC code (Pack1) VRLA

Battery ou Accumulator (Pack1) Accumulator (rechargeable)

Element Composition (Pack1) Lead

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 2380 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) I : Industrial (not Portable)
