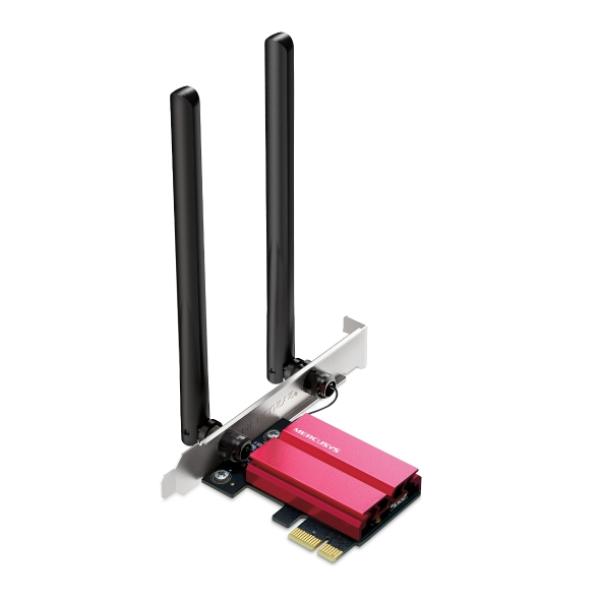

Mercusys MA86XE AXE5400 Tri-Band WiFi 6E BT PCIe

Mercusys MA86XE
AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

Functions
Unstoppable Tri-Band Speed

*Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

WiFi 6E Standard

*Expand to the clearer, broader 6 GHz band

Wider Signal Coverage

*Two high-performance antennas

Bluetooth 5.3

*The latest Bluetooth technology achieves faster speeds and broader coverage

Improved Security

*The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility

*Full support for 802.11ax/ac/a/b/g/n standards

Windows Compatible

*Supported operating system: Windows 10, 11 (64 bit), and currently 6 GHz Band only supported on Windows 11.

Specifications

Wireless
Wireless Standards
*IEEE 802.11 a/n/ac/ax 5 GHz
*IEEE 802.11 b/g/n/ax 2.4 GHz
WiFi Speeds
*2402 Mbps on 6 GHz
*2402 Mbps on 5 GHz
*574 Mbps on 2.4 GHz
Reception Sensitivity
6 GHz:
*11ax HE160 MCS0:-86 dBm
*11ax HE160 MCS11:-56 dBm
5 GHz:
*11ax HE80 MCS0: -90 dBm
*11ax HE80 MCS11: -59 dBm
*11a 54Mbps: -77 dBm
*11ac VHT80 MCS0: -92dBm
*11ac VHT80 MCS9: -64dBm
2.4 GHz:
*11ax HE40 MCS0: -91 dBm
*11ax HE40 MCS11: -60 dBm
*11g 54Mbps: -76 dBm
*11n HT40 MCS7: -72dBm
Wireless Security
*WPA-PSK/WPA2-PSK/WPA3-SAE
Hardware
Dimensions
*930 × 4.8 × 0.85 in (228 × 120.8 × 21.5 mm)
Antenna Type
*2× Fixed High-Performance Omni-Directional Antennas
Mercusys MA86XE AXE5400 Tri-Band WiFi 6E BT PCIe

Parametre

Počet kusů jedn. balení	1
Typ balení jedn. balení	Balitelné
Wi-Fi 2,4 GHz	Ano
Wi-Fi 5 GHz	Ano
WiFi 2 (802.11a)	Ano
WiFi 1 (802.11b)	Ano
WiFi 3 (802.11g)	Ano
Wi-Fi 4 (802.11n)	Ano
Wi-Fi 5 (802.11ac)	Ano
Wi-Fi 6 (802.11ax)	Ano
Wi-Fi 6 GHz	Ano
Výška jedn. balení	27.4
Rozměr xyz jedn. balení	17.2x27.4x3.7
Šířka jedn. balení	17.2
Hmotnost jedn. balení	0.196
Hloubka jedn. balení	3.7
Typ zařízení	Síťová karta/Adaptér
