MikroTik L22UGS-5HaxD2HaxD-15S, mANTBox ax 15s (RouterOS L4)
| Kód tovaru: | 2447860 |
|---|---|
| Výrobca: | MikroTik |
| PN kód: | L22UGS-5HaxD2HaxD-15S |
| EAN kód: | 4752224009142 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | skladom (8) |

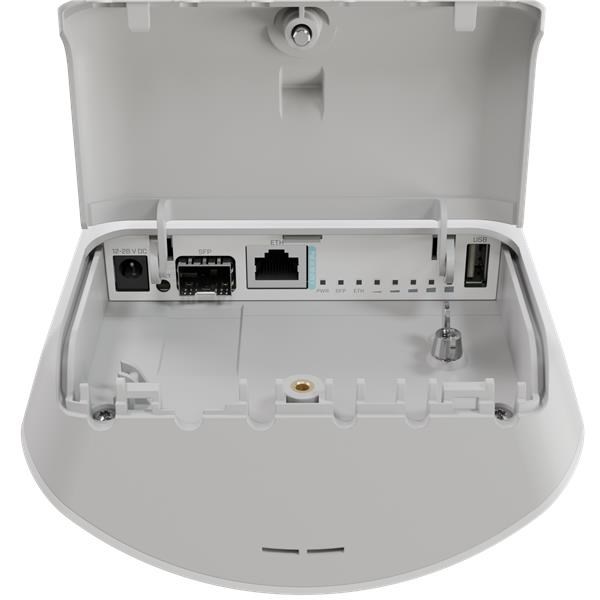

Specifications Product code L22UGS-5HaxD2HaxD-15S CPU Dual-Core IPQ-5010 800 MHz CPU architecture ARM Size of RAM 256 MB Storage 128 MB, NAND Number of 1G Ethernet ports 1 Number of 1G SFP ports 1 (2.5G supported) USB port 1 USB 2.0 port type A Wireless interface model IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz) Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain Antenna gain 2.4 GHz - 12 dBi, 5 GHz - 15 dBi Dimensions 349 x 140 x 82 mm Operating system RouterOS v7, License level 4 Operating temperature -40°C to +70°C Number of DC inputs 2 (PoE-In, DC jack) PoE-In input Voltage 18-28 V DC jack input Voltage 12-28 V Max USB current 1.5 A Power adapter nominal voltage 24 V Power adapter nominal current 1.2 A PoE-In Passive PoE Max power consumption (without attachments) 11 W Max power consumption 21 W

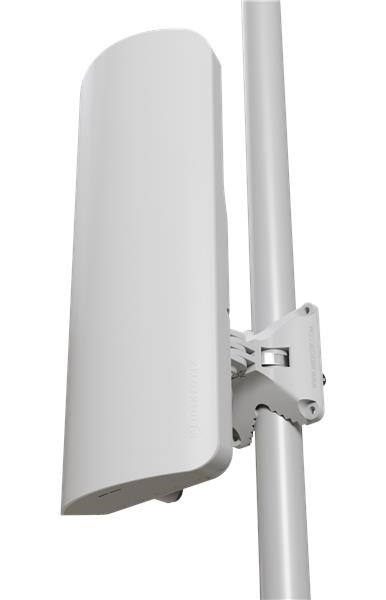

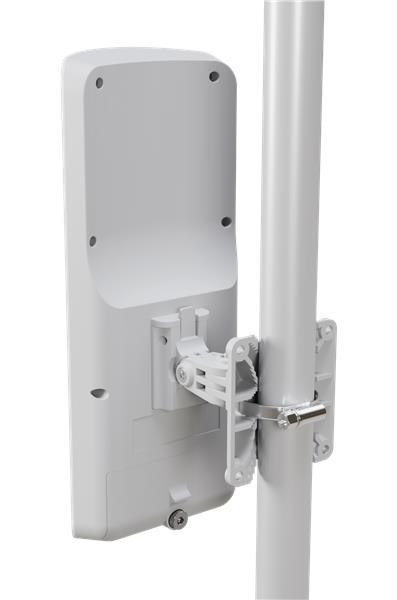

mANTBox ax 15s sector antenna
Parametre
| Hĺbka jedn. balenie | 8.9 |
| Hmotnosť jedn. balenie | 1.974 |
| Počet kusov jedn. balenie | 1 |
| Rozmer xyz jedn. balenie | 52.1x15.7x8.9 |
| Šírka jedn. balenie | 52.1 |
| Typ balenia jedn. balenie | Balitelné |
| Výška jedn. balenie | 15.7 |
| Počet LAN portov | 1 |
| Wi-Fi 2,4 GHz | Ano |
| Wi-Fi 5 GHz | Ano |
| WiFi 2 (802.11a) | Ano |
| WiFi 1 (802.11b) | Ano |
| WiFi 3 (802.11g) | Ano |
| Wi-Fi 4 (802.11n) | Ano |
| Wi-Fi 5 (802.11ac) | Ano |
| Wi-Fi 6 (802.11ax) | Ano |
| Optika | Ano |
| PoE | In (vstup) |
| PoE In standart | Pasivní |
| PoE Out standard | Nepodporuje |
| PoE power budget (W) | Nevztahuje se |
| Typ zariadenia | Router |
| Výrobce nemá info |
