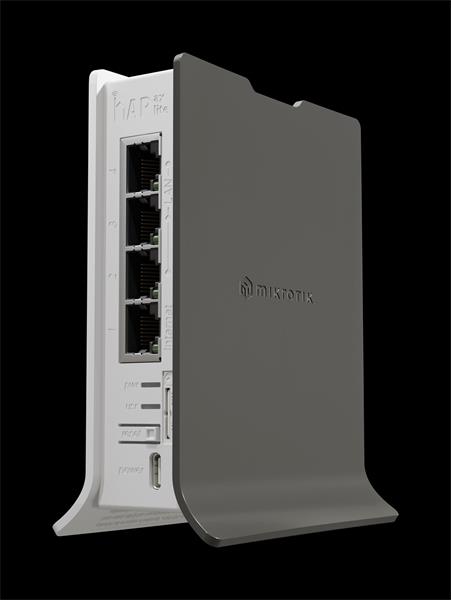

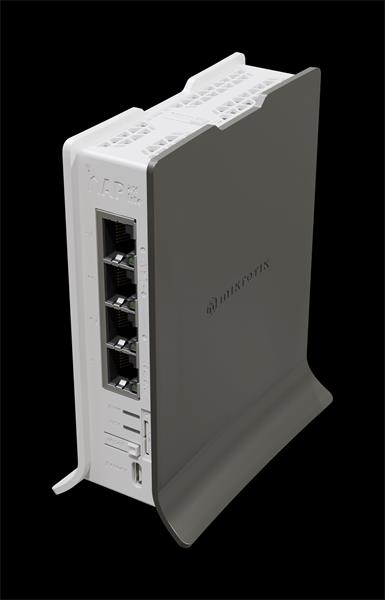

MIKROTIK hAP ax lite LTE6 with RouterOS L4 license, International version

Specifications

Details

Product code L41G-2axD&FG621-EA

Architecture ARM 64bit

CPU IPQ-5010

CPU core count 2

CPU nominal frequency 800 MHz

Switch chip model MT7531BE

RouterOS license 4

Operating System RouterOS v7

Size of RAM 256 MB

Storage size 128 MB

Storage type NAND

MTBF Approximately 100"000 hours at 25C

Tested ambient temperature -40°C to 60°C

Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz 4.3

Wireless 2.4 GHz chip model IPQ-5010

Wireless 2.4 GHz generation Wi-Fi 6

WiFi speed AX600

Mobile

Details

3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)

3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)

LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)

LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)

LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

TAC 86335904

Ethernet

Details

10/100/1000 Ethernet ports 4

Peripherals

Details

Number of SIM slots 1 Modem (Micro SIM)

Powering

Details

Number of DC inputs 1

Max power consumption 12 W

Max power consumption without attachments 12 W

Cooling type Passive

Certification & Approvals

Details

Certification CE, EAC, ROHS

IP 20

Other

Details

Mode button Yes
