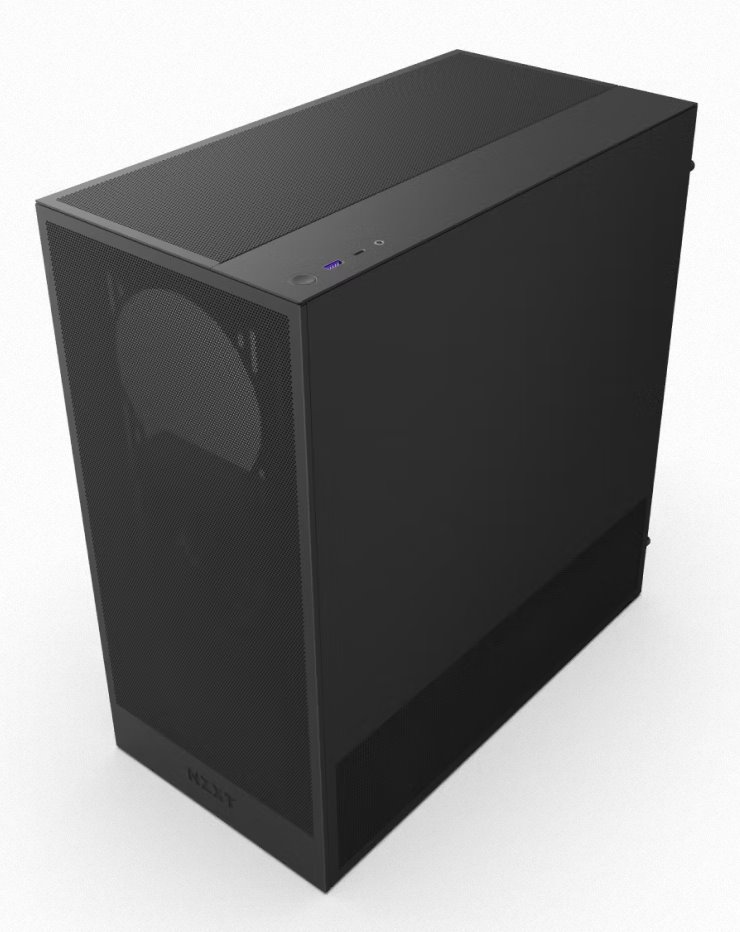

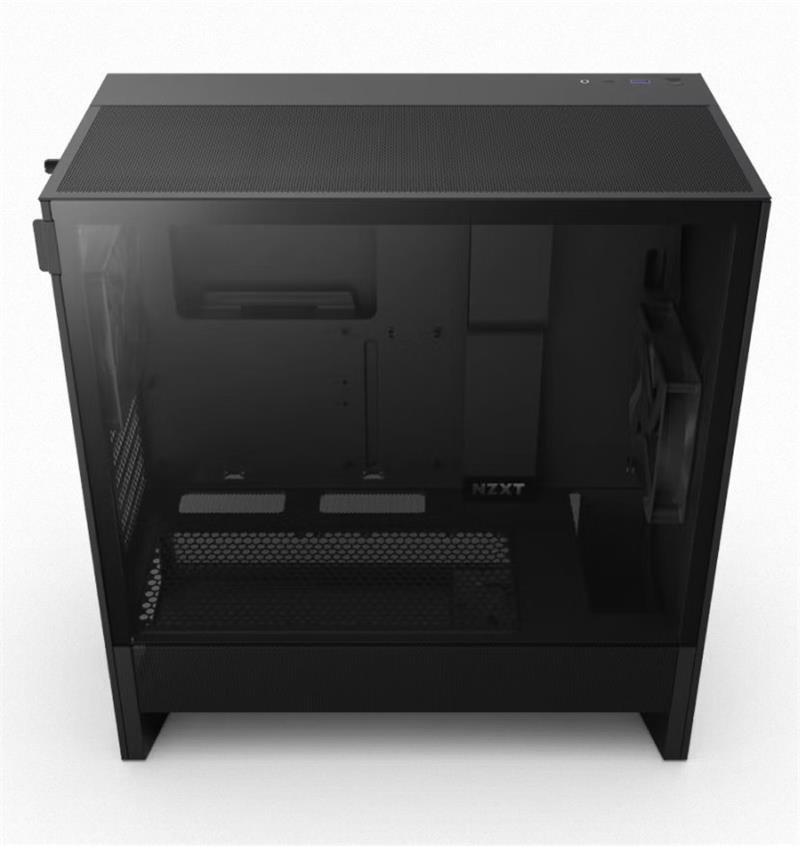

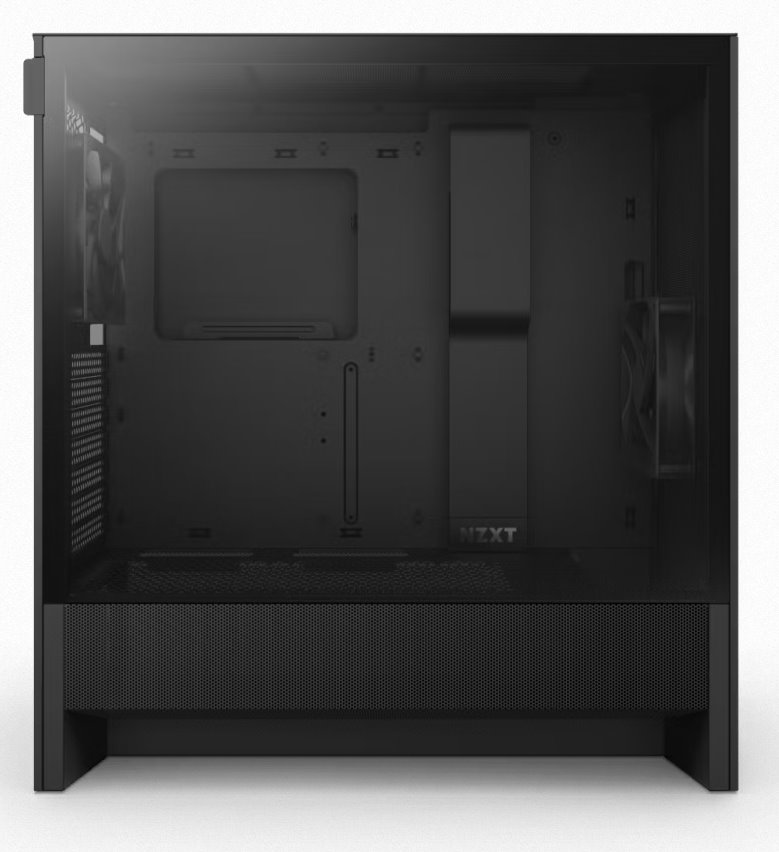

NZXT case H5 Flow / 2x120 mm fan / mesh / Black
| Kód tovaru: | 2590851 |
|---|---|
| Výrobca: | NZXT |
| PN kód: | CC-H52FB-01 |
| EAN kód: | 5056547205854 |
| Záruka: | 24 mesiacov |
| Dostupnosť: | skladom (20) |
Overview
Details
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.

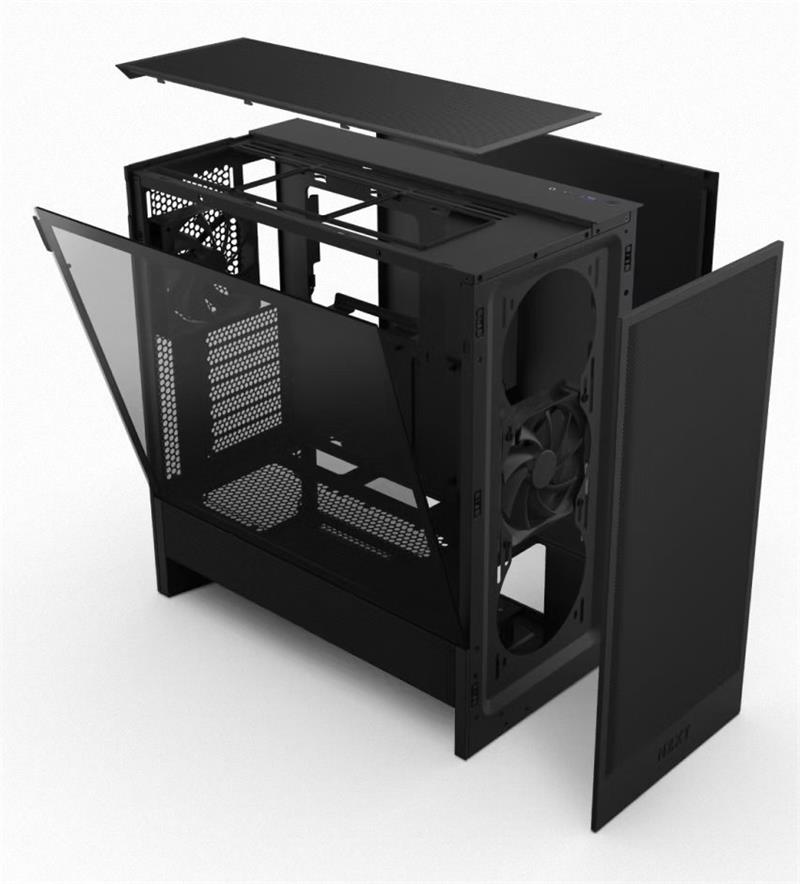

Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Inside the Box
H5 Flow
F120Q (CV) 2x
Installation accessories
User guide
Tech Specs
Key Specs
Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet):465 mm / 18.31 in
Width:225 mm / 8.86 in
Depth:430 mm / 16.93 in
Weight:7.28 kg / 16.04 lb
Compatibility & Clearance
CPU Cooler Height:Up to 170 mm
GPU Length:Up to 410 mm
PSU Length:Up to 200 mm
Cable Management:Up to 28.7 mm
Top Radiator:Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm
Front Ports
USB 3.2 Type-A:1
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5":2
3.5":1
Fan Support
Front:3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
Top:2 x 120 mm / 2 x 140 mm
Bottom:2 x 120 mm
Rear:1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
Front:Up to 360 mm
Top:Up to 240 mm (280mm with low-profile memory only)
Fan Specs
Model:F120Q (Case Version)
Speed:1,350 ± 150 RPM
Airflow:60.2 CFM
Static:1.05 mm-H2O
Noise:24.1 dBA
Fan Connector:3-pin
General
Warranty:2 years
Model Number:CC-H52FW-01(White) / CC-H52FB-01 (Black)
UPC:810074845908 (White) / 810074845915 (Black)
EAN:5056547205847 (White) / 5056547205854 (Black)
