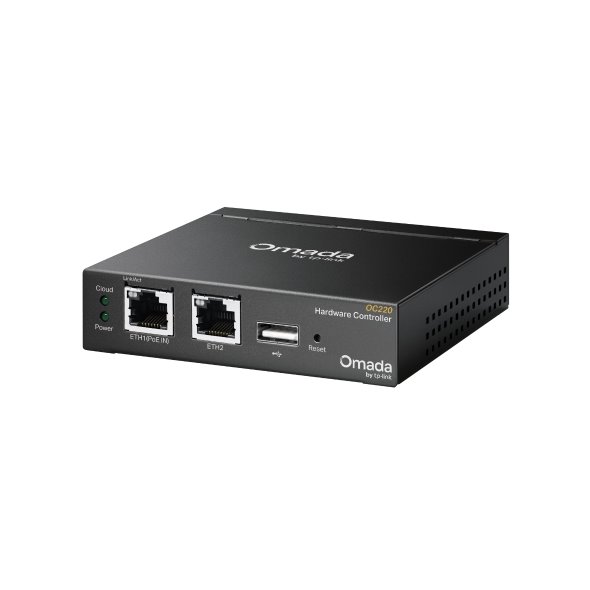

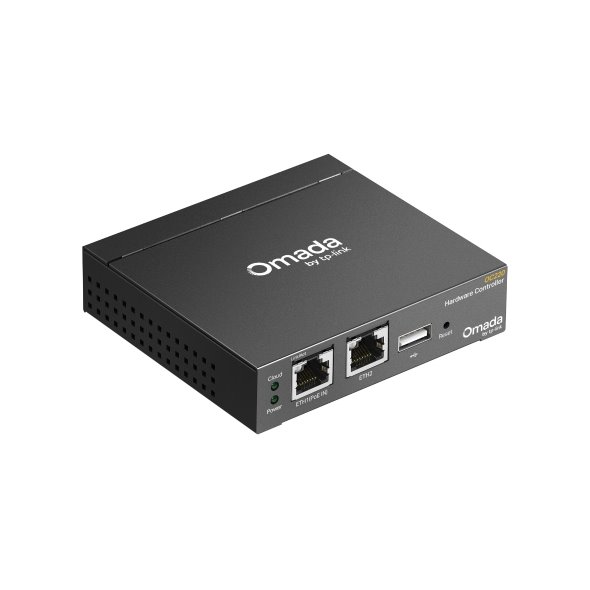

Omada Hardware Controller PORT: 2× 10/100/1000 Mbps Ethernet Ports, 1× USB 2.0 Port, 1× Micro USB Port FEATURE: Cloud Ac

Centralizovaná správa: Podporuje až 100 prístupových bodov Omada, 10 brán Omada, maximálne 20 prepínačov Omada a maximálne 2 vybrané jednotky GPON OLT DeltaStream*
Bezplatný prístup do cloudu:

Spravujte a monitorujte zariadenia pomocou aplikácie Omada alebo webového rozhrania odkiaľkoľvek a kedykoľvek.
Lokálna správa: Sledujte a spravujte zariadenia lokálne s maximálnou stabilitou a úplným súkromím.


Hardvérový dizajn pre firmy: Výkonný čipset, odolné kovové puzdro, port USB 2.0 na zálohovanie dát a dva gigabitové ethernetové porty.

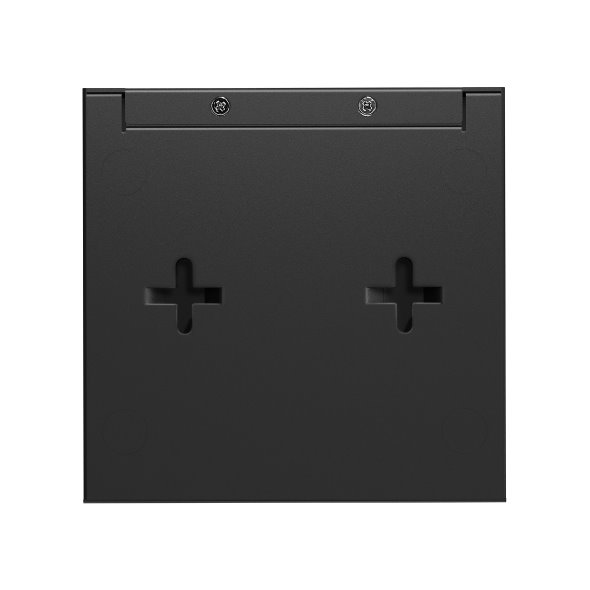

Flexibilné nasadenie: Napájanie cez 802.3af PoE alebo Micro USB (DC 5V/minimálne 1A), možnosť inštalácie na stôl alebo na stenu vďaka kompaktným rozmerom.





HARDWARE FEATURES

Interface • 2× Gigabit Ethernet Ports

• 1× USB 2.0 Port

• 1× Micro USB Port

Power Supply • 802.3af PoE

• Micro USB(DC 5V/Minimum 1A)

Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)

Management Features

Omada App Yes

Centralized Management • 100 Omada access points

• 10 Omada gateways

• A maximum of 20 Omada switches*

• A maximum of two select DeltaStream GPON OLTs*



Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220

*†The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. Refer to https://www.omadanetworks.com/omada-sdn/product-list/#sp-gpon to find all the DeltaStream GPON OLTs that are supported by the controller.

Cloud Access Yes

L3 Management Yes

Multi-site Management Yes

Management Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS

Package Content • Omada Hardware Controller OC220

• Quick Installation Guide

• RJ45 Ethernet Cable

System Requirements Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment • Operating Temperature: -5–50 ? (23–122 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
