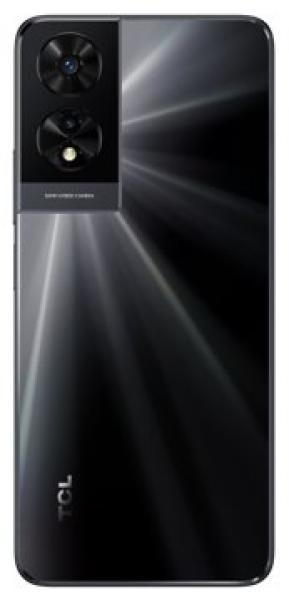

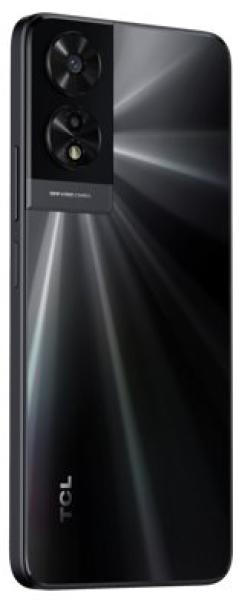

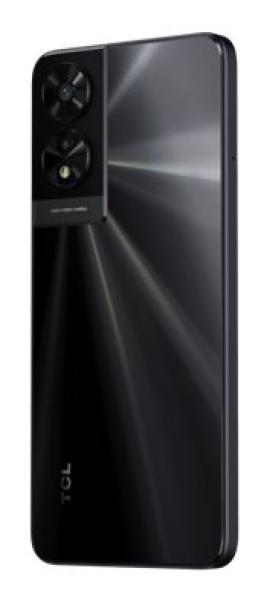

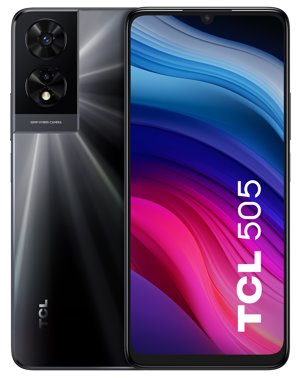

TCL 505 4GB+128GB Space Gray

DESIGN:

Dimensions (HxWxD, mm): 168.29x76.67x8.32mm

Weight: 190g

Side keys: 2 (Volume Key & Power Key)

Colors: Black



DISPLAY:

Size: 6.75 inch NXTVISION display

Resolution: HD+ (720*1600 resolution)

Screen-to-body ratio: VA:TP=90.01% VA:BD=86.27%

Glass type: 2.5D glass

Touch technology: Capacitive

Color gamut: 260 PPI, NTSC 69.3%(Typ.)

Brightness (nits): Min 360nit, TYP 400nit

Anti-fingerprint coating: Yes



BATTERY:

Capacity: 5010mAh

Charging Technology: 10W

Charging time (Hours): Around 3h

DOU Value (Hours): 18hours *



PERFORMANCE:

OS: Android 14 (1 OS upgrade (Android 14 to 15))

Chipset: MTK G36 (MT6765X)

CPU Frequency: 4xA53@ 2.2GHz+4xA53@ 1.6GHz

GPU: IMG GE8320 680MHz



REAR CAMERA:

Number of pixels:Dual

50MP Main Camera: PDAF, sensor size 1/2.55”, pixel size 0.7µm, aperture F1.8, field of view 79.4°, 5P lens

2MP Dual Camera: FF, sensor size 1/5”, pixel size 1.75µm, aperture F2.4, field of view 88.8°, 3P lens

Camera Flash: Single tone

Video capture: 1080P @30FPS

Video playback: 1080P @30FPS

Features: Bokeh,HDR,Panorama,AI scene detection,Face detection



FRONT CAMERA:

5MP camera: FF, sensor size 1/5”, pixel size 1.12µm, aperture F2.2, field of view 76.8°, 3P lens

Video capture: 1080p@30fps

Video playback: 1080p@30fps

Features: HDR, Face Beauty



MEMORY:

RAM size: 8GB (4GB + 4GB RAM expansion)

ROM size: 128GB

Available memory: 108GB (TBD) *

microSD card: Micro SD, up to 512GB

*Actual internal storage available mary depending on pre-installed software.



CONNECTIVITY:

Bluetooth version: 5.1

Audio jack: 3.5mm

NFC: Yes



NETWORK:

Sim card slots

Dual SIM: 2 Nano SIM + 1 T-Flash card



4G data: Cat 4 DL 150Mbit/s, UL 50Mbit/s

3G data: HSPA+ (42M bit/s DL, 11Mbit/s UL)

2G data: GPRS/EDGE

4G Bands: B1/3/5/7/8/20/26/28/38/40/41 (2496-2690MHz )

3G Bands: B1/2/5/8

2G Bands: 850/900/1800/1900

802.11a/b/g/n/ac, 2.4GHz&5GHz, Wi-Fi direct, Wi-Fi display

VoLTE, VoWiFi



AUTHENTICATION:

Face Unlock



SENSOR:

Location: BDS/GPS/Glonass/Galileo,with A-GPS

Other: Accelerometer (G sensor), Proximity by softwaresolution



AUDIO AND VIDEO:

Audio playback format: AAC, HE-AAC v1, HE-AAC v2, AMR, AWB, MIDI, MP3, OGG VORBIS, WAV(Alaw/Ulaw), WAV(Raw), FLAC, OPUS

Video playback format: MPEG2, H.263, MPEG4, H.264, H.265, VP8, VP9

Speaker: 2

Dual-mic Noise cancellation: Default No, but optional

Supported headsets: LRGM

Features: Big Volume



IN THE BOX:

Charger, Type C 2.0 Cable, LCD sticker, Quick guide PSI, SIM

card pin, RAM expansion label
