TP-LINK "48V Passive PoE Injector AdapterPORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE PortSPEC: Data and Power Carrie

TL-POE4824G

48V pasívny PoE adaptér

Podporovaný 48V pasívny PoE

Automatické určenie potrebných požiadaviek na napájanie

Pohodlné prevedenie pre montáž na stenu

Podpora gigabitovej rýchlosti

Plug-and-Play nevyžaduje žiadnu konfiguráciu



HARDWARE FEATURES

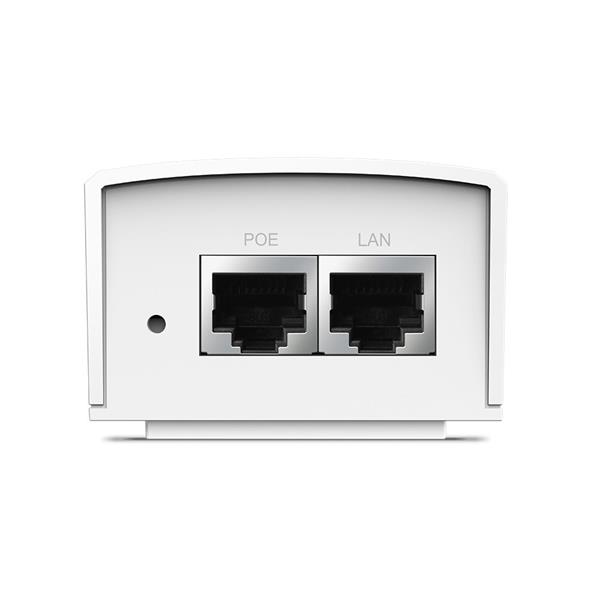

Interface 1 10/100/1000Mbps RJ45 Shielded Data IN Port

1 10/100/1000Mbps RJ45 Shielded Passive PoE Port

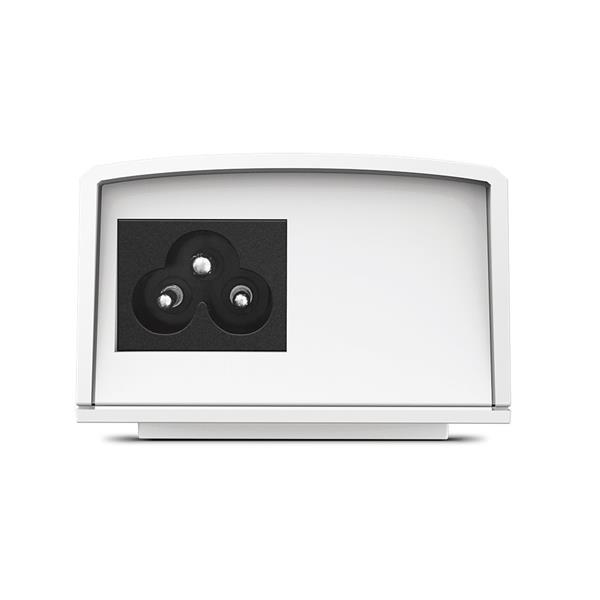

1 100~240V / 50~60Hz AC Power Input Port

Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

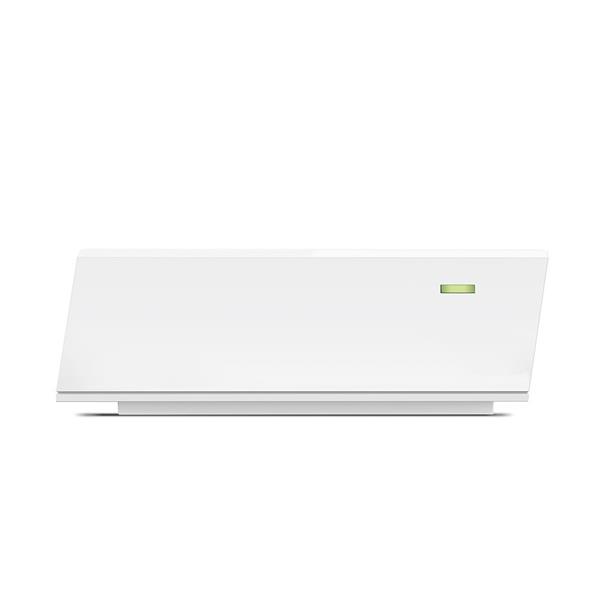

LED Indicator PWR

Dimensions ( W x D x H ) 4.3 × 2.3 × 1.5 in.

(110×57×38.8 mm)

OTHERS

Certification FCC, CE, RoHS

Package Contents 48V 24W Passive PoE Adapter TL-POE4824G

Power Cord

Wall Mounting Kits

Environment Operating Temperature: 0?~40? (32?~104?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Parametre
