TP-LINK 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+, 4× 10/100 Mbps PoE+ Ports, 2× 10/100 Mbps Non-PoE Ports

Kód tovaru: | 957784 |
---|---|
Výrobca: | TP-link |
PN kód: | TL-SF1006P |
EAN kód: | 6935364030933 |
Záruka: | 36 mesiacov |
Dostupnosť: | skladom (2) |
HARDWARE FEATURES
Interface • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.8928 Mpps

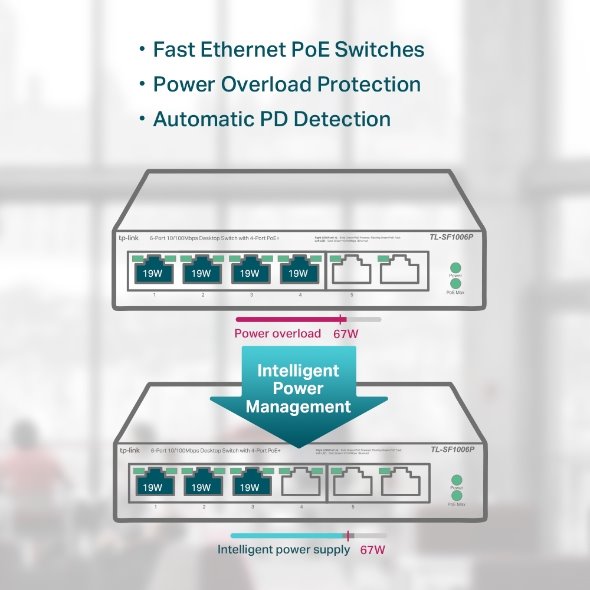

PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.2 Gbps
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
• 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation • 6.48 BTU/h(no PD connected)
• 252.34 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs

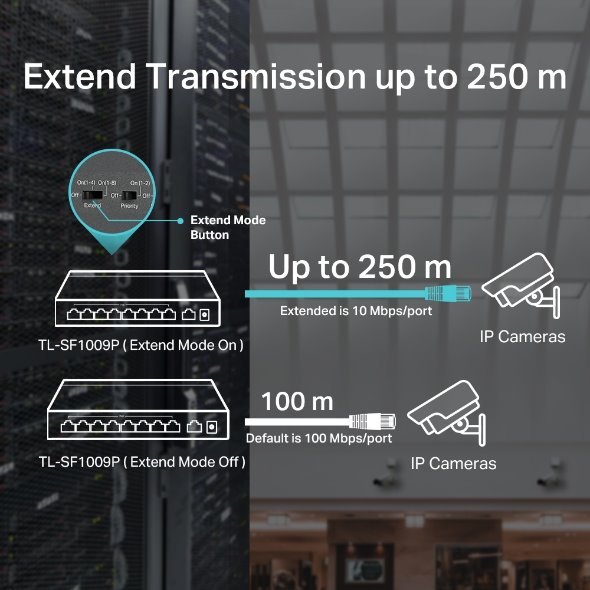

• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SF1006P
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Príslušenstvo
Parametre
Hmotnost jedn. balení | 0.922 |
Rozměr xyz kartonu | 43.2x28.9x39 |
Počet kusů jedn. balení | 1 |
Typ balení kartonu | Balitelné |
Hmotnost kartonu | 11.334 |
Šířka jedn. balení | 12.3 |
Rozměr xyz jedn. balení | 12.3x20x13.8 |
Typ balení jedn. balení | Balitelné |
Počet kusů v kartonu | 12 |
Výška jedn. balení | 20 |
Typ obalu kartón | Expedovatelné |
Hloubka jedn. balení | 13.8 |
Provedení switche | Desktop |
Rychlost LAN max. | 100 Mbps |
Optika | Ne |
Počet LAN portů | 6 |
Obsahuje switch | Ano |
POE | Ano |
Fanless switch | Ano |
Management | Unmanaged switch |
Počet LAN portů | 6x |
