TP-LINK AC1750 Ceiling Mount Dual-Band Wi-Fi Access Point, 2× Gigabit RJ45 Port, High Density connectivity?500+ Clients?

HARDWARE FEATURES

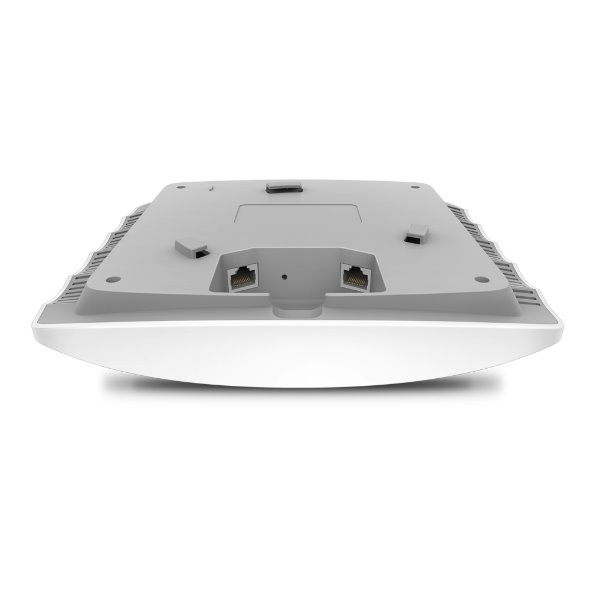

Interface 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE)

Physical Security Lock Yes

Button Reset

Power Supply • 802.3af/at PoE

• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption 12.3 W

Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type Internal Omni

• 2.4 GHz: 3× 3.5 dBi

• 5 GHz: 3× 4 dBi

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/g/b/a

Frequency 2.4GHz and 5GHz

Signal Rate • 5 GHz: Up to 1300 Mbps

• 2.4 GHz: Up to 450 Mbps

Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client



Wireless Security • Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power • CE:

?20 dBm (2.4 GHz)

?23 dBm (5 GHz)

• FCC:

?24 dBm (2.4 GHz)

?24 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

OTHERS

Certification CE, FCC, RoHS

Package Contents • AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD

• Gigabit Passive PoE Adapter

• Power Cord

• Mounting Kits

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
