TP-LINK "AC1200 Dual-Band Wi-Fi RouterSPEED: 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHzSPEC: 4× Antennas, 1× 10/100M WAN

V skratke

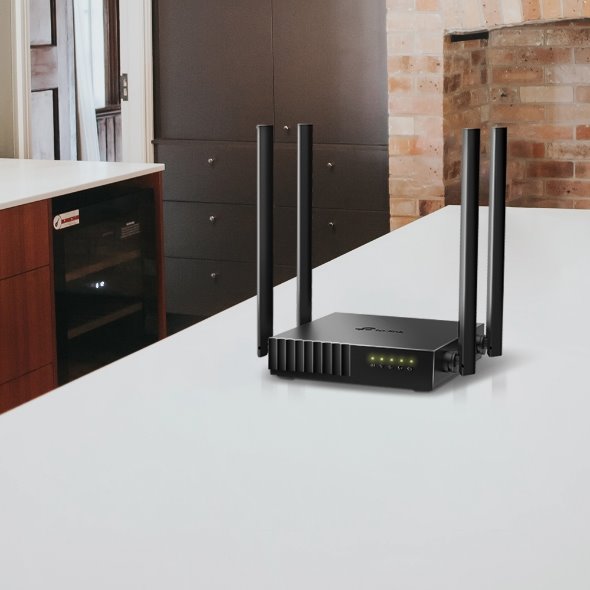

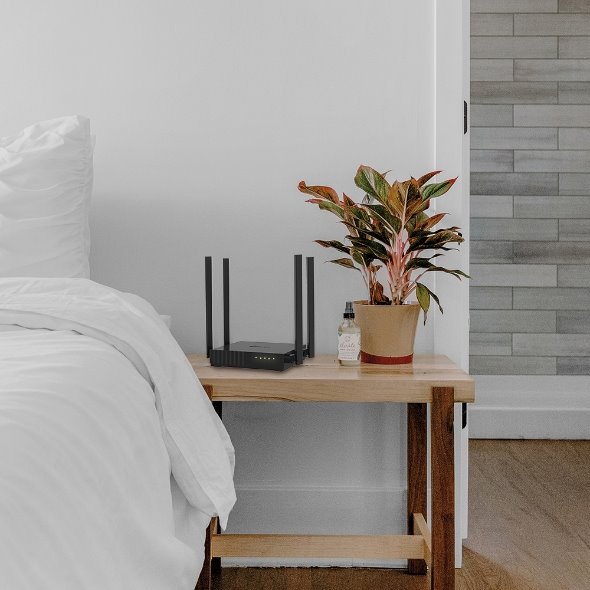

AC1200 Dual Band Wi-Fi Router

Faster AC Wi-Fi—AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.

Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.

Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.

Parental Controls—Manages when and how connected devices can access the internet.

Guest Network—Provides separate access for guests in order to secure the host network.

Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.

IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).

Compact and Mountable—Designed to conserve space and complement any décor.



WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 3 Bedroom Houses

4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance



MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor Single-Core CPU

Ethernet Ports 1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Buttons WPS/Reset Button

Power 9 V ? 0.85 A

SECURITY

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in

(115 × 106.7 × 24.3 mm)

Package Contents Wi-Fi Router Archer C54

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser



Cable or DSL Modem (if needed)



Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~60? (-40? ~140?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE EIRP:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity 5GHz:

11a 6Mbps:-93dBm;

11a 54Mbps:-78dBm;

11ac HT20 mcs8:69dBm;

11ac HT40 mcs9:-66dBm;

11ac HT80 mcs9:-62dBm;

2.4GHz:

11g 54Mbps:-78dBm;

11n HT20 mcs7:-74dBm;

11n HT40 mcs7:-71dbm;
