AC1200 Dual-Band Wi-Fi Router SPEED: 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz SPEC: 4× Antennas, 1× Gigabit WAN Port + 4×

V skratke

Gigabitový MU-MIMO router AC1200

Dvojpásmová Wi-Fi AC1200 - 867 Mbit / s v pásme 5 GHz a 300 Mbit / s v pásme 2,4 GHz



Technológia MU-MIMO - súčasný prenos dát do viacerých zariadení pre 2 × vyšší výkon



Zvýšené pokrytie - štyri externej antény vybavené technológiou Beamforming rozširujú a koncentrujú signály Wi-Fi



Režim prístupového bodu - podporuje režim AP pre premenu káblového pripojenia na bezdrôtovú sieť



Jednoduché nastavenie - pomocou aplikácie TP-Link Tether nastavíte Wi-Fi v priebehu niekoľkých minút



WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance



MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients



Airtime Fairness

Improves network efficiency by limiting excessive occupation

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor Dual-Core CPU

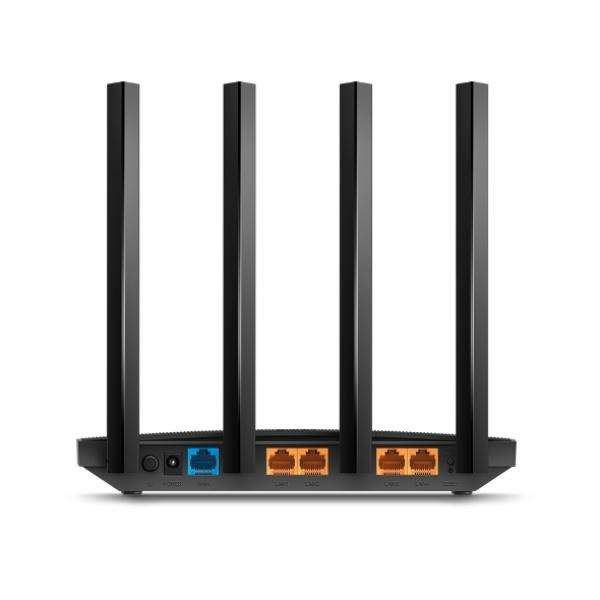

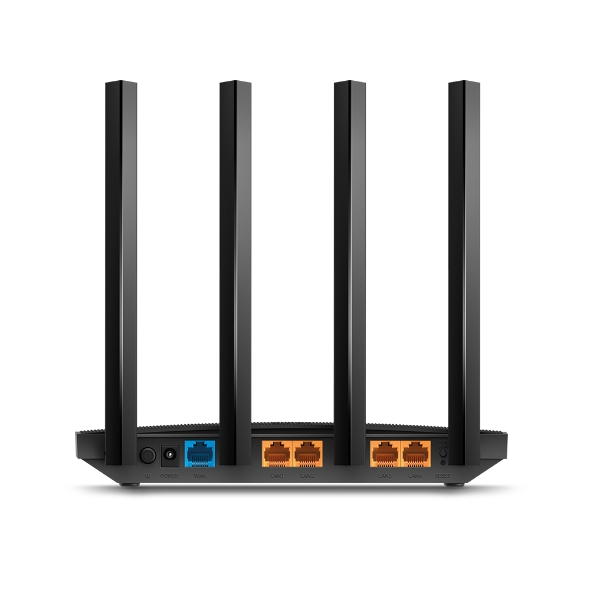

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

Buttons WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Power 12 V ? 1 A

SECURITY

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

SOFTWARE

Protocols IPv4

IPv6

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Virtual Servers

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 8.5 × 4.6 × 1.2 in

(215 × 117 × 32 mm)

Package Contents Wi-Fi Router Archer C6

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser



Cable or DSL Modem (if needed)



Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE EIRP:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity 5GHz:

11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;

11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;

11ac HT80 mcs9:-62dBm;

2.4GHz:

11g 54Mbps:-78dBm;

11n HT20 mcs7:-74dBm;

11n HT40 mcs7:-71dbm;
