TP-Link Archer NX505 AX3000 5G WiFi Gb router

TP-Link Archer NX505 AX3000 5G Wi-Fi GB ROUTER

5G/4G/3G

Síťový režim:


*5G:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/600/1500/1500/3700/3500MHz)


*4G:FDD-LTE:B1/B3/B5/B7/B8/B20/B28/B32/B71 (2100/1800/850/2600/900/800/700/1500/600 MHz)TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)


*3G:DC-HSDPA/HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Rychlost:

*5GDownload Speed 6.47 GbpsUpload Speed 1.25 Gbps


*4G LTE Cat19:Download Speed 2 GbpsUpload Speed 211 Mbps

SIM Typ: Nano SIM Karta

HARDWARE FEATURES

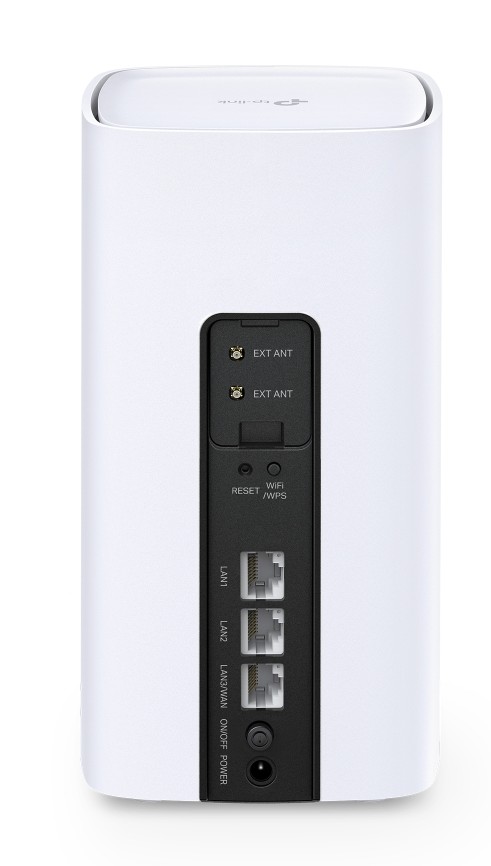

Rozhraní:


*2× Gigabit LAN Ports
*1× Gigabit WAN/LAN Port
*1× Nano SIM Card Slot
*2× TS-9 Ports for 5G/4G External Antennas
*1× Power Slot

Tlačítka: Wi-Fi/WPS Button, Reset Button, Power Button
External power supply: 12V/2.5A
Rozměry (ŠxHxV): 99 x 99 x 190mm
Anténa: 3× Internal Wi-Fi Antennas, 6× Internal NR/LTE Antennas

SOFTWARE FEATURES

QoS: Bandwith Control
Operační režimy: 3G/4G/5G Router, Wireless Router
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP: Server, DHCP Client List, Address Reservation
Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: TP-Link, DynDns, NO-IP
Firewall: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control
Protokoly: IPv4, IPv6
VPN Server: PPTP VPN, IPSec VPN, OpenVPN

WIRELESS FEATURES

Bezdrátový standard: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
Frekvence: 2.4 GHz and 5 GHz

Síťový režim:


*5 GHz:11ax HE20: -64 dBm11ax HE40: -61 dBm11ax HE80: -59 dBm11ax HE160: -56 dBm11ac VHT20: -70 dBm11ac VHT40: -67 dBm11ac VHT80: -64 dBm


*2.4 GHz:11ax HE20: -66 dBm11ax HE40: -62 dBm11ac VHT20: -71 dBm11ac VHT40: -67 dBm

Obsah balení:


*5G AX3000 Dual Band Wi-Fi 6 Router Archer NX505
*RJ45 Ethernet Cable
*Power Adapter
*Quick Installation Guide

Záruka: 3 roky
TP-Link Archer NX505 AX3000 5G WiFi Gb router
