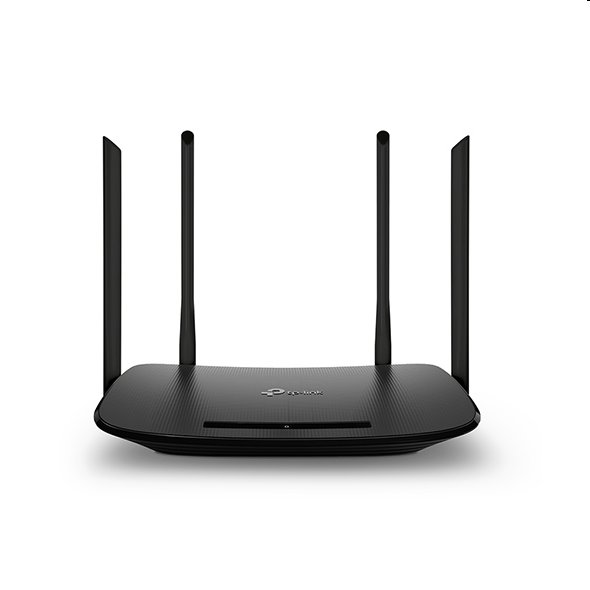

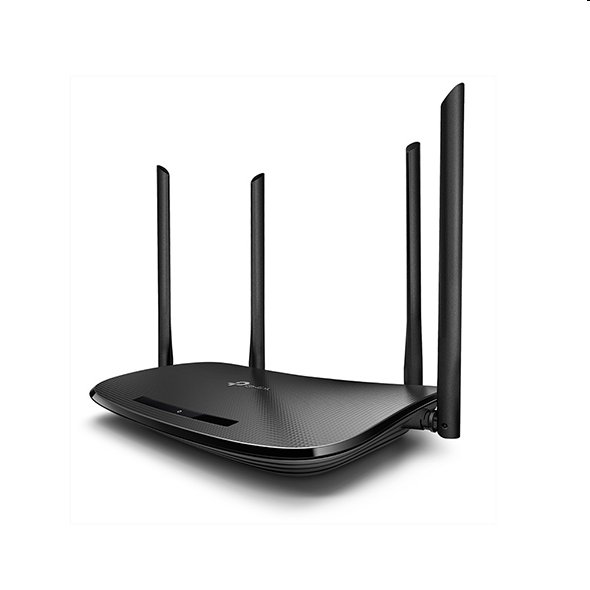

tp-link Archer VR300, VDSL/ADSL Dualband Wireless Modem/Router, 1200Mbit/s, 802.11ac/a/b/g/n, 1xRJ11, 1x Wan, 3x LAN

AC1200 Wireless VDSL/ADSL Modem Router
Archer VR300

Parental Controls: manage responsible internet access for your children
Guest Network|: provides separate access for guests while securing the home network
Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
Quality of Service: prioritizes network traffic by device or application
IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
IPv6: compatible with IPv6 (Internet Protocol version 6)
Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)

HARDWARE FEATURES
Interface 3 10/100 RJ45 LAN Ports
1 10/100 RJ45 LAN/WAN Port
1 RJ11 Port
Button WPS Button
Power On/Off Button
Reset Button
Power Supply 12VDC/1A
VDSL2 Standards ITU G.993.2, Up to 17a pro¬le (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 385*290*76mm
Antenna Type 4 ?fixed external antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz
Wireless Speeds 867Mbps at 5GHz
300Mbps at 2.4GHz
Transmit Power 2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP)
Wireless Functions Access Point / Wireless Bridge, Wireless EnableDisable, SSID Broadcast EnableDisable
Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS)
SOFTWARE FEATURES
Quality of Service ATM QoS, Bandwidth Control
Security NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, Wireless Router
Management Web Based Con¬guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
Upgrade, Diagnostic Tools
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Passthrough
Protocols Supports IPv4 and IPv6
ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Advanced Functions Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
Guest Network 2.4GHz guest network, 5GHz guest network
OTHERS
Certification CE, RoHS, RCM
Package Contents · AC1200 Wireless VDSL/ADSL Modem Router Archer VR300
· External Splitter
· RJ11 DSL Cable
· RJ45 Ethernet Cable
· Power Adapter
· Quick Installation Guide
System Requirements · Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
· Subscription with an Internet Service Provider (for Internet access)
Environment · Operating Temperature: 0?~40? (32? ~104?)
· Storage Temperature: -40?~70? (-40? ~158?)
· Operating Humidity: 10%~90% non-condensing
· Storage Humidity: 5%~90% non-condensing
