TP-LINK "AX3000 Dual-Band Wi-Fi 6 RouterSPEED: 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz SPEC: 4× Antennas,1× 2.5 Gbps

V skratke

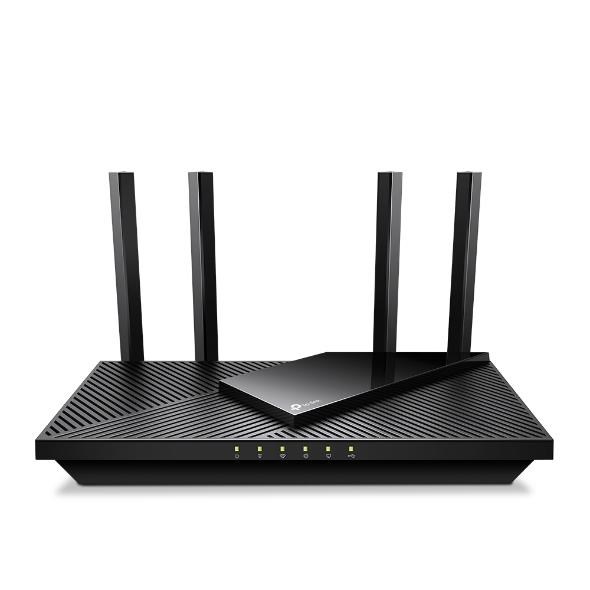

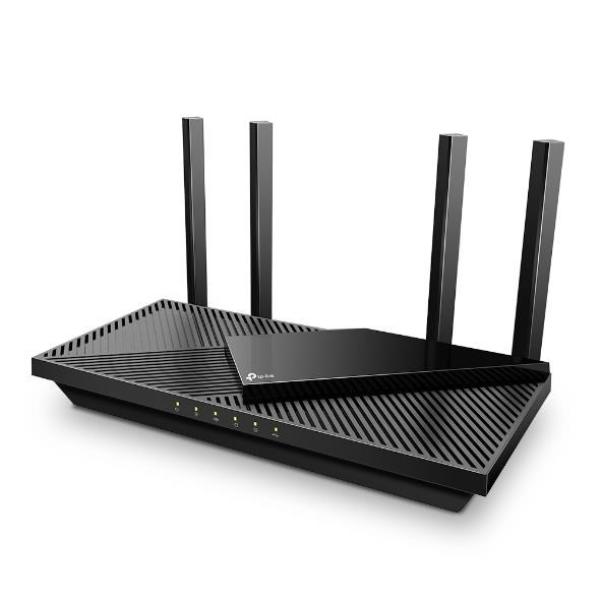

Archer AX55 Pre New

Multigigabitový Wi-Fi 6 router AX3000 s 2,5 G portom

Rýchlejšia dvojpásmová AX3000 WiFi: Až 3,0 Gbps (2402 Mbps + 574 Mbps) WiFi pre rýchlejšie prechádzanie, streamovanie a sťahovanie, to všetko súčasne.

2,5 G multigigabitový port: 1 × 2,5 Gb/s WAN/LAN port + 1 × 1 Gb/s WAN/LAN port + 3 × gigabitové LAN porty + 1 × USB 3.0 port zaručujú maximálnu flexibilitu a zvýšenú priepustnosť.

Maximalizované pokrytie: Štyri antény s vysokým ziskom vybavené funkciou Beamforming zaisťujú rozsiahle pokrytie.

Pripája viac zariadení: Technológia OFDMA zvyšuje kapacitu 4-krát, aby umožnila súčasný prenos do viacerých zariadení.

Podpora klienta VPN: Umožnite zariadeniam vo vašej domácej sieti pristupovať k vzdialeným serverom VPN bez toho, aby ste museli do všetkých zariadení inštalovať softvér VPN.

TP-Link HomeShield: Vylepšené zabezpečenie chráni pred najnovšími kybernetickými hrozbami.

Podpora TP-Link OneMesh: Flexibilne vytvorte celú domácu WiFi s Archer AX55 pridaním extenderu s podporou OneMesh.

Kompatibilný s Alexa: Ovládajte svoj router pomocou hlasových príkazov a urobte si život múdrejší a jednoduchší s Amazon Alexa.



WIRELESS

Standards Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz

• IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX3000

• 5 GHz: 2402 Mbps (802.11ax, HE160)

• 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 3 Bedroom Houses

• 4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas



• Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range



• High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity High

• Dual-Band

Allocate devices to different bands for optimal performance



• OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients



• Airtime Fairness

Improves network efficiency by limiting excessive occupation



• DFS

Access an extra band to reduce congestion



• 4 Streams

Connect your devices to more bandwidth

Working Modes • Router Mode

• Access Point Mode

HARDWARE

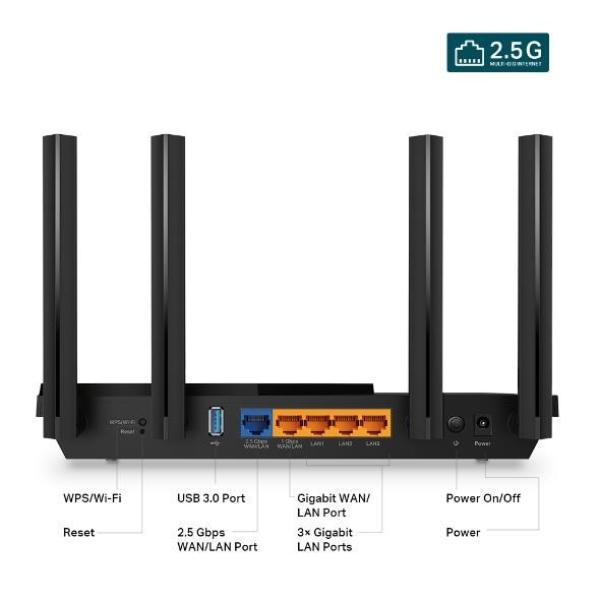

Ethernet Ports • 1× 2.5 Gigabit WAN/LAN Port

• 1× Gigabit WAN/LAN Port

• 3× Gigabit LAN Ports

USB Support 1× USB 3.0 Port



Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32



Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi/WPS Button

Power On/Off Button

Reset Button

Power • 12 V/ 2 A (US Version)

• 12 V/ 1.5 A (EU Version)

SECURITY

WiFi Encryption • WPA3*

• WPA2

• WPA

• WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway



HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network • 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

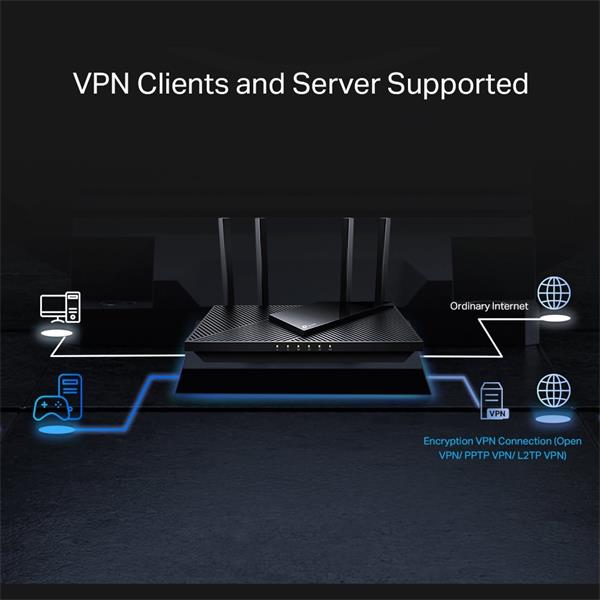

VPN Server • OpenVPN

• PPTP

• L2TP

VPN Client • OpenVPN

• PPTP

• L2TP

SOFTWARE

Protocols • IPv4

• IPv6

Service Kits HomeShield

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeShield Parental Controls

• Custom Profiles

• Professional Content Filter Library

• Family Time

• Bedtime

• Off Time

• Time Rewards

• Family Online Time Ranking

• Pause the Internet

• Weekly and Monthly Reports

WAN Types • Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of Service QoS by Device

Cloud Service • Auto Firmware Upgrade

• OTA Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding • Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV • IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP • Address Reservation

• DHCP Client List

• Server

DDNS • TP-Link

• NO-IP

• DynDNS

Management • Tether App

• Webpage

Check Web Emulator>

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser



Cable or DSL Modem (if needed)



Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Operating Humidity: 10%~90% non-condensing

TEST DATA

WiFi Transmission Power • CE:

<20dBm(2.4GHz)

<23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)

<30dBm (5.47GHz~5.725GHz)

• FCC:

<30dBm (2.4GHz)

<30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)

<24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)

WiFi Reception Sensitivity • 2.4 GHz:

11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,

11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,

11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,

11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm

• 5 GHz:

11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,

11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,

11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,

11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,

11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,

11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,

11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL

Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in

(261.1 × 134.5 × 41.0 mm)

Package Contents • Wi-Fi Router Archer AX55 Pro

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
