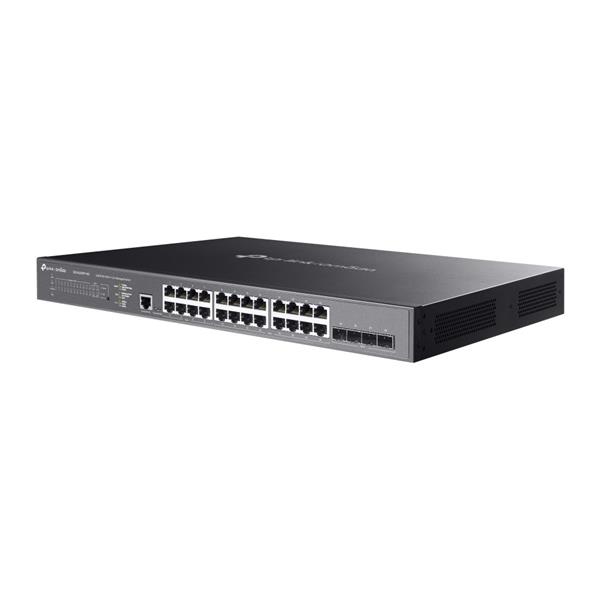

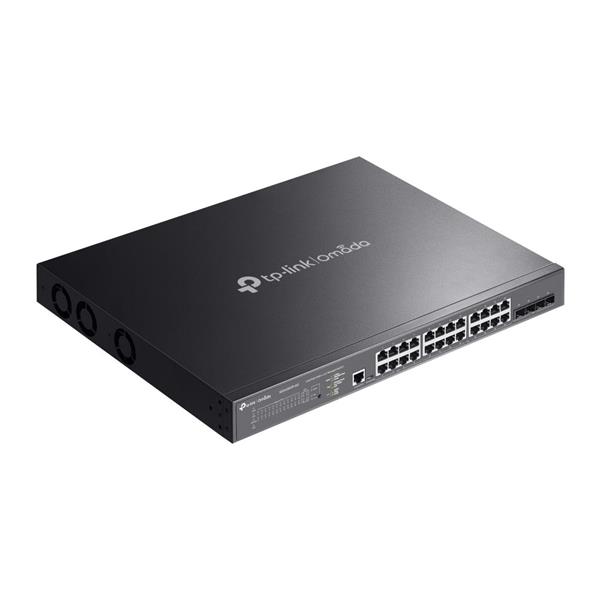

TP-LINK "Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++PORT: 16× 2.5

SG3428XPP-M2

Omada 24-portový 2,5 GBASE-T a 4-portový 10GE SFP+ L2+ Managed Switch so 16 portami PoE+ a 8 portami PoE++

8× 2.5G PoE++ portov (až 60 W PoE na port)**

16× 2.5G PoE+ portov (až 30 W PoE na port)

4× 10G SFP+ slotov

Celkový PoE rozpočet 500 W*

Centralizovaná správa v cloude cez web alebo aplikáciu Omada†

Samostatná správa cez web, CLI, SNMP a RMON

Statické smerovanie pomáha smerovať internú prevádzku pre vyššiu efektivitu

VLAN, ACL, QoS, IGMP Snooping, OAM a DDM

ERPS podporuje rýchlu ochranu a obnovu v kruhovej topológii



HARDWARE FEATURES

Interface • 24× 2.5 Gbps RJ45 Ports (8× PoE++, 16× PoE+)

• 4× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity 3

Physical Security Lock ?

Power Supply 100-240 V AC~50/60 Hz

PoE Ports (RJ45) • Standard: 802.3bt/at/af compliant

• PoE++ Ports (802.3bt/at/af PoE): 8 Ports, up to 60 W per port

• PoE+ Ports (802.3at/af PoE): 16 Ports, up to 30 W per port

• Power Budget: 500 W

Dimensions ( W x D x H ) 17.3×13.0×1.7 in (440×330×44 mm)

Mounting Rack Mountable

Max Power Consumption 629.1 W (110V/60Hz)

Max Heat Dissipation 2153.45 BTU/h (110 V/60 Hz)

PERFORMANCE

Switching Capacity 200 Gbps

Packet Forwarding Rate 148.80 Mpps

MAC Address Table 32 K

Packet Buffer Memory 16 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

• Bandwidth Control: Port/Flow-based Rating Limiting

• Smoother Performance

• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

L2 and L2+ Features • 32 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 48 IPv4/IPv6 Static Routes

• Static ARP: 128 static entries

• 512 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

• DHCP L2 Relay

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring

L2 Multicast • Supports 511 (IPv4, IPv6) IGMP groups

• IGMP Snooping

• IGMP Authentication

• Multicast VLAN Registration (MVR)

• MLD Snooping

• Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features • Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Intelligent Network Monitoring†

• Abnormal Event Warnings†

• Unified Configuration†

• Reboot Schedule†



ISP Features***:

• L2PT (Layer 2 Protocol Tunneling)

• Device Link Detect Protocol (DLDP)

• PPPoE ID Insertion

• ERPS

• 802.3ah Ethernet Link OAM

• DDM

VLAN • VLAN Group: Max 4K VLAN Groups

• 802.1q Tagged VLAN

• MAC VLAN: 256 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• Private VLAN

• GVRP

• VLAN VPN: VLAN Mapping, VLAN Replace

• Voice VLAN

Access Control List • Time-based ACL

• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type

• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy: Mirroring, Redirect, Rate Limit, QoS Remark

• ACL applies to Port/VLAN

Security • IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- ND Snooping

- IPv6 Source Guard: 100 Entries

• DoS Defend

• DHCP Filter

• Static/Dynamic Port Security: Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode

• 802.1X

- Port-based authentication

- Mac-base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Radius authentication and accountability support

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control

IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs • MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

MANAGEMENT

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents • SG3428XPP-M2 Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
