TP-LINK "Omada 25GBase-LR SFP28 LC TransceiverSPEC: Dual Rate 25.78 Gbps and 10.31 Gbps, 1310 nm SMF (Single-mode fiber

Kód tovaru: | 2542392 |
---|---|
Výrobca: | TP-link |
PN kód: | SM6110-LR |
EAN kód: | 8885020622355 |
Záruka: | 1860 dní |
Dostupnosť: | skladom (6) |

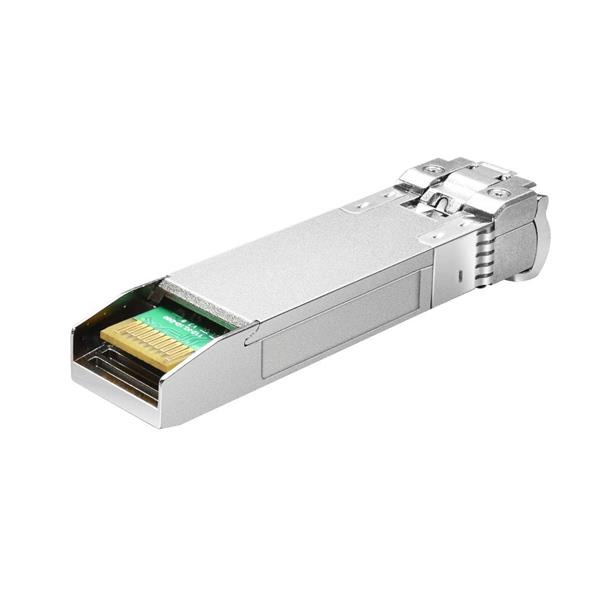

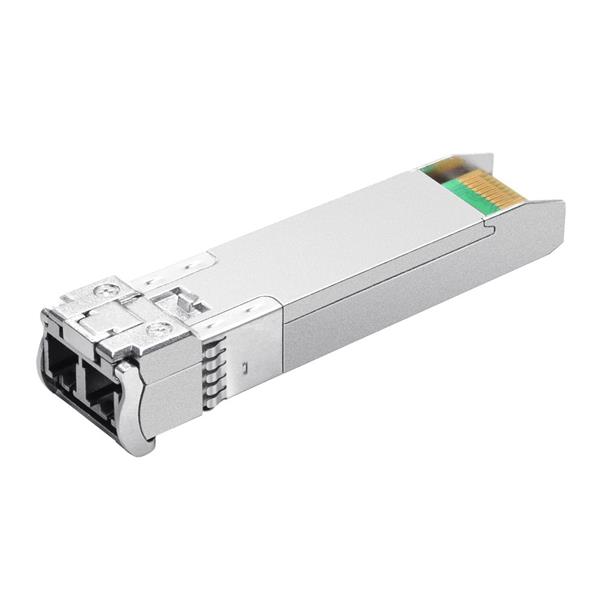

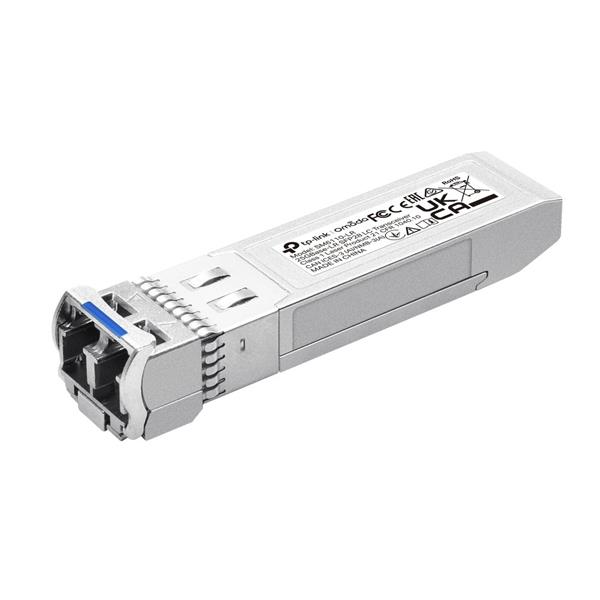

Vysielač Omada 25GBase-LR SFP28 LC
Multimódový transceiver SFP+/SFP28 LC
Hot-pluggable s maximálnou flexibilitou
Podporuje digitálny diagnostický monitoring (DDM)
Nízka spotreba energie, nie viac ako 1,2 W
Kompatibilná s 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
Kompatibilné so switchemi s 25G porty, ako je SX6632YF; 10G port, ako sú SG3428X a SG3452X.
PACKAGE CONTENTS
Package Contents • SM6110-LR
• Installation Guide
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12 mm)
Transceiver
Standards and Protocols • IEEE 802.3ae, 802.3cc
• SFF-8402, SFF-8431, SFF-8432, SFF-8472
• eCPRI, CPRI
• TCP/IP
Wavelength 1310 nm
Power Supply 3.3V
Fiber Type 9/125um Single-Mode
Max. Cable Length 10 km
Support Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps

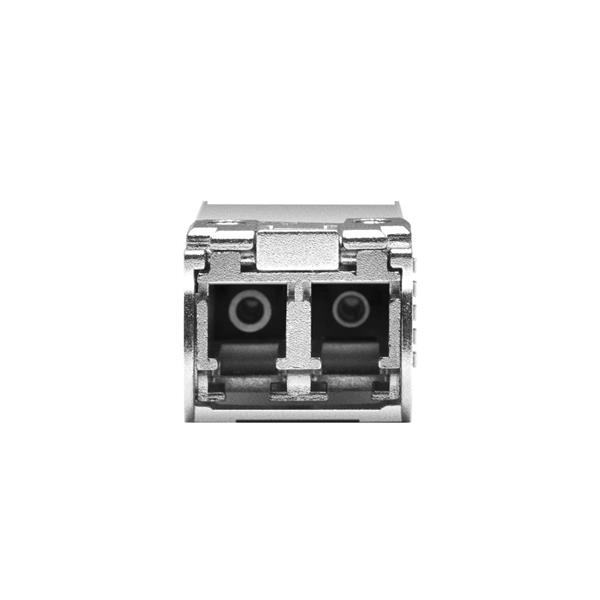

Connector Duplex LC/UPC
Regulatory Compliance CE, FCC, RoHS
Environment • Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Storage Humidity: 5% to 90% RH, Non-Condensing
Parametre
Počet kusů jedn. balení | 1 |
Typ balení jedn. balení | Balitelné |
Rozměr xyz jedn. balení | 8.1x12.4x4 |
Hmotnost jedn. balení | 0.080 |
Šířka jedn. balení | 8.1 |
Výška jedn. balení | 12.4 |
Hloubka jedn. balení | 4 |
